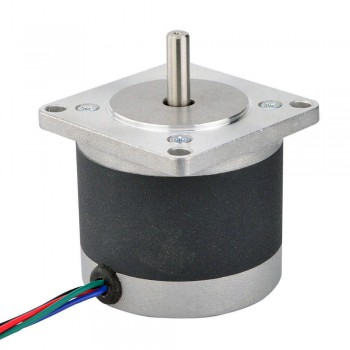

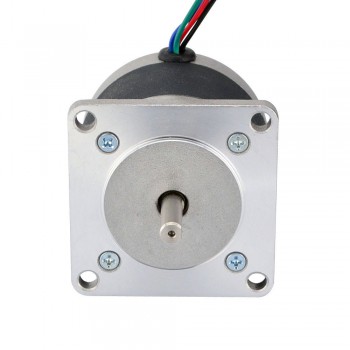

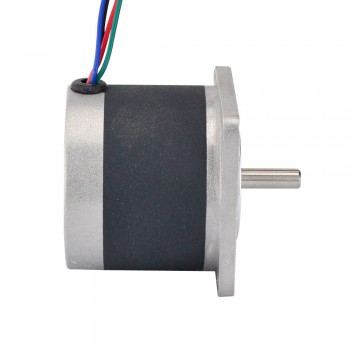

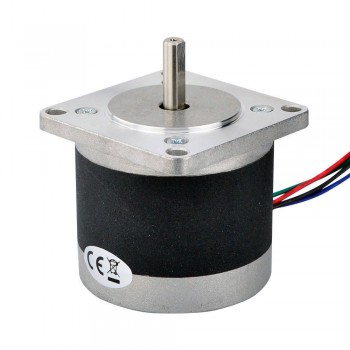

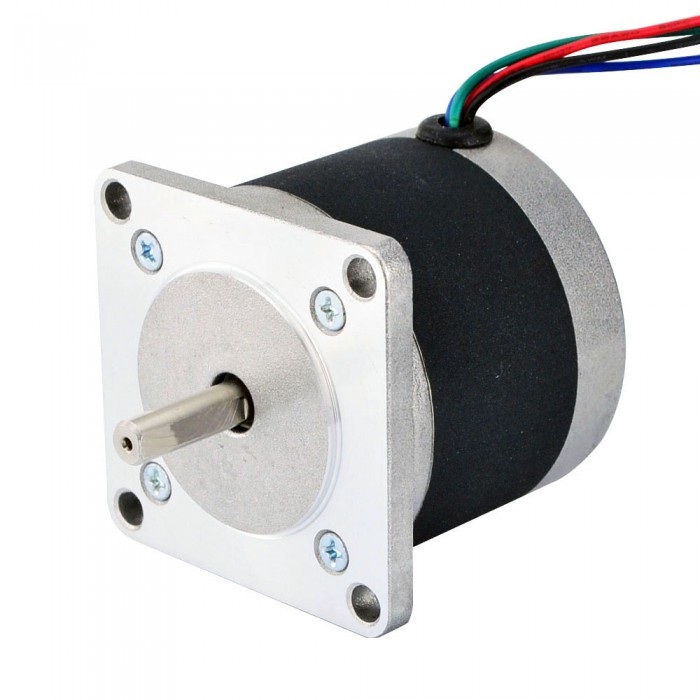

Round Nema 23 Bipolar 0.9 Deg 70Ncm (99.13oz.in) 2.8A 1.8V 57x52mm 4 Wires

Round Nema 23 Bipolar 0.9 Deg 70Ncm (99.13oz.in) 2.8A 1.8V 57x52mm 4 Wires
NO.:23HR20-2804S
Post a review
Our Price:$24.59
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $23.36 5%
10 $22.87 7%
50 $22.13 10%
100 $21.39 13%
Add To Cart

This round bipolar Nema 23 stepper motor with step angle 0.9deg and size 57x52mm. It has 4 wires, each phase draws 2.8A, with holding torque 0.7Nm (99.13oz.in).

Electrical Specification

Manufacturer Part Number: 23HR20-2804S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 0.7Nm(99.13oz.in)

Rated Current/phase: 2.8A

Voltage: 1.8V

Phase Resistance: 0.65ohms

Inductance: 1.6mH ± 20%(1KHz)



Physical Specification

Frame Size: deg57mm

Body Length: 52mm

Shaft Diameter: Φ6.35mm

Shaft Length: 20.6mm

D-cut Length: 19mm

Number of Leads: 4

Lead Length: 500mm

Weight: 580g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 23HR20-2804S.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor (23HS45-4204S)
Next: Nema 23 Stepper Motor Bipolar 0.9 Deg 0.9Nm (127.5oz.in) 0.38A 12.1V 57x57x51mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 70
Holding Torque (oz.in) 99.13
Inductance(mH) 1.6
Phase Resistance(ohm) 0.65
Rated Current (A) 2.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 52
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 20.6
No. of Lead 4
Lead Length(mm) 500
Weight(g) 700
