Dual Shaft Nema 24 Stepper Motor Bipolar 1.8 Deg 3.1Nm (439 oz.in) 3.5A 3.85V 60x60x88mm 4 Wires

Dual Shaft Nema 24 Stepper Motor Bipolar 1.8 Deg 3.1Nm (439 oz.in) 3.5A 3.85V 60x60x88mm 4 Wires
NO.:24HS34-3504D
Review: Post a review
Our Price:$33.14
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $31.48 5%
10 $30.82 7%
50 $29.83 10%
100 $28.83 13%
Add To Cart

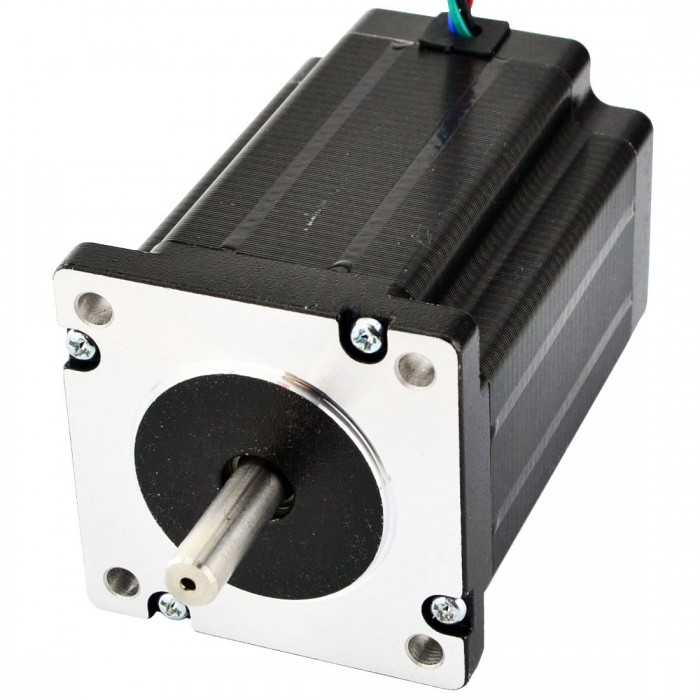

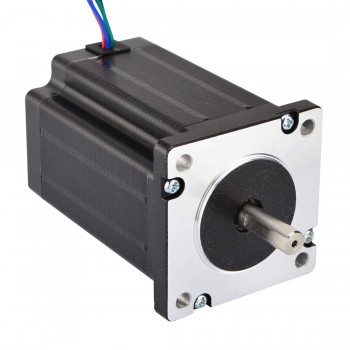

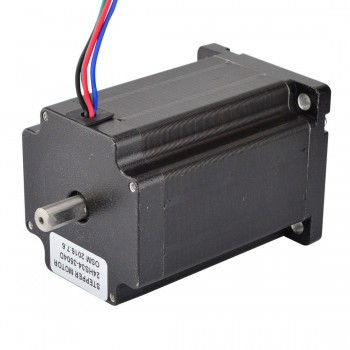

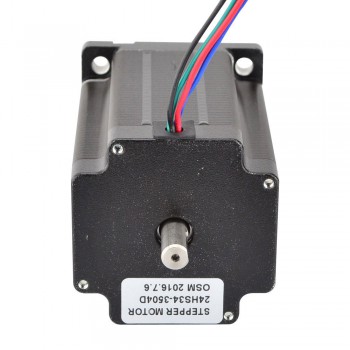

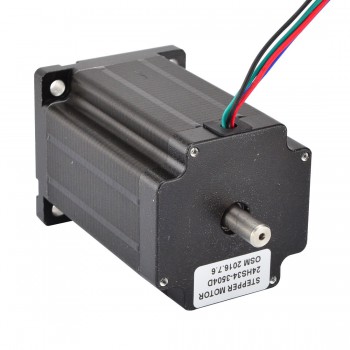

This bipolar Nema 24 stepper motor with step angle 1.8deg and size 60x60x88mm. It has 4 wires, each phase draws 3.5A, with holding torque 3.1Nm (439oz.in). A rear shaft was made for encoder or equals.

Electrical Specification

Manufacturer Part Number: 24HS34-3504D

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 3.1Nm(439oz.in)

Rated Current/phase: 3.5A

Voltage: 3.85V

Phase Resistance: 1.1ohms

Inductance: 5.6mH ± 20%(1KHz)



Physical Specification

Frame Size: 60 x 60mm

Body Length: 88mm

Shaft Diameter: Φ8mm

Front Shaft Length: 24mm

Rear Shaft Length: 15mm

D-cut Length: 20mm

Number of Leads: 4

Lead Length: 600mm

Weight: 1.34kg



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 24HS34-3504D.pdf

Torque Curver: 24HS34-3504D Torque Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 24 Stepper Motor 1.8 Deg 3.1Nm (439 oz.in) 60x60x80mm D-Cut Shaft 8 Wires
Next: Dual Shaft Nema Size 24 Stepper Motor 1.8 Deg 4Nm (566 oz.in) D-Cut Shaft 8 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 310
Holding Torque (oz.in) 439
Inductance(mH) 5.6
Phase Resistance(ohm) 1.1
Rated Current (A) 3.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 88
Frame Size(mm) 60x60
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 600
Weight(g) 1340
