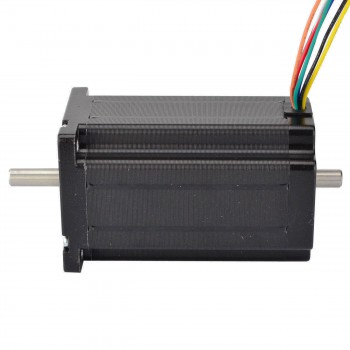

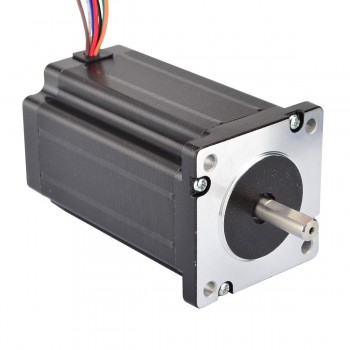

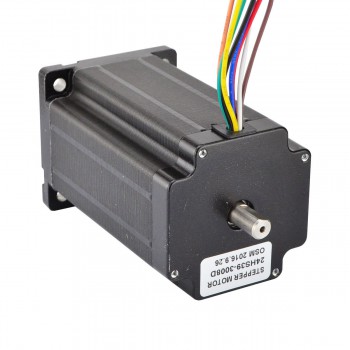

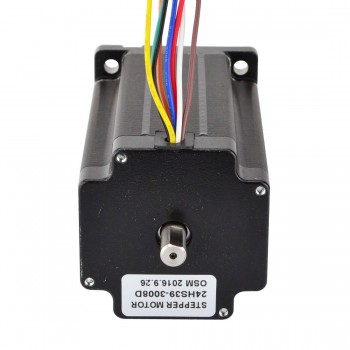

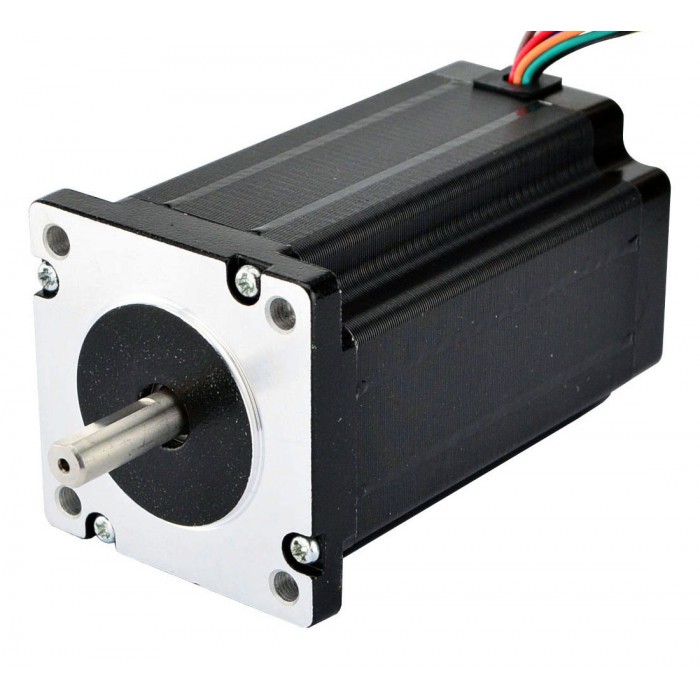

Dual Shaft Nema Size 24 Stepper Motor CNC Stepper Motor 4Nm (566 oz.in) 60x60x100mm 8 Wires

NO.:SKU:24HS39-3008D
Review: Post a review
Latest price:$39.01
Buy It Now:$30.01
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$28.81 $27.61 $26.41 $25.21
Add To Cart

This is the strongest nema 24 stepper motor, it with step angle 1.8deg and size 60x60x100mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. A rear shaft can mount encoder, hand wheel or equals. It's houlding torque reach 2.8Nm(397oz.in) with unipolar connection and 4.0Nm(566oz.in) with bipolar connection.

Electrical Specification

  • Manufacturer Part Number: 24HS39-3008D
  • Motor Type: Unipolar/Bipolar
  • Step Angle: 1.8 deg
  • Holding Torque(Bipolar): 4.0Nm(566oz.in)
  • Holding Torque(Unipolar): 2.8Nm(397oz.in)
  • Rated Current(Bipolar Serial): 2.12A
  • Rated Current(Bipolar Parallel): 4.24A
  • Rated Current(Unipolar): 3.0A
  • Phase Resistance(Bipolar Serial): 2.8ohms
  • Phase Resistance(Bipolar Parallel): 0.7ohms
  • Phase Resistance(Unipolar): 1.4ohms
  • Inductance(Bipolar Serial): 12.0mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 3.0mH ± 20%(1KHz)
  • Inductance(Unipolar): 3.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8.0mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length: 13mm
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 400mm
  • Weight: 1.6kg

Connection

A+
A-
C+
C-
B+
B-
D+
D-
RED
YEL
BLK
BLU
WHT
ORG
GRN
BRN

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 24 Stepper Motor Bipolar 3.1Nm (439 oz.in) 3.5A 60x60x88mm 4 Wires
Next: Dual Shaft Nema 24 Stepper Motor Stepper Motor 4.2A 4Nm (566 oz.in) 60x60x100mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 400
Holding Torque (oz.in) 566
Inductance(mH) 3
Phase Resistance(ohm) 0.7
Rated Current (A) 4.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 100
Frame Size(mm) 60x60
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 24
No. of Lead 8
Lead Length(mm) 400
Weight(g) 1600
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Robert Holler – 28 Nov 2017

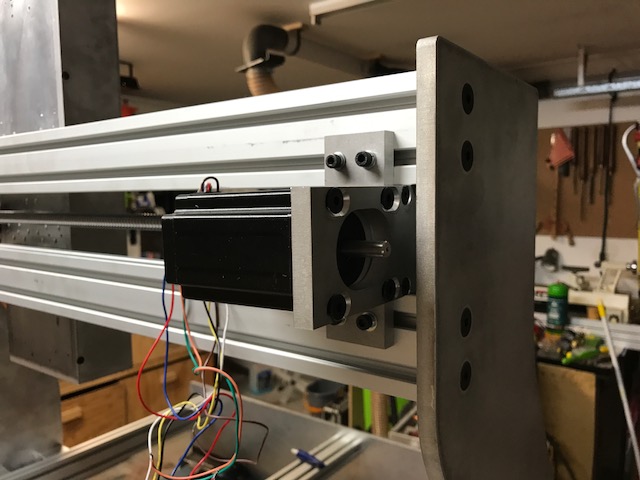

I have four of these stepper motors installed on my home built CNC router. They build quality is extremely high and the work flawless every time. Lot of holding torque which is what I needed. At first I had them paired with the M542T stepper drivers and they had a bit of a scream on them. I then changed over to the DM542T stepper drivers which made these excellent stepper motors run so smooth, very quiet and with not a lot of heat generated. This is a product that I can recommend to anybody. It is definitely worth the money paid for it, you will not be disappointed with the purchase.

Alan Tchochiev – 24 Aug 2015

Great motor. It's a bit bigger than regular Nema 23 motor, but hole spacing and sizing and everything, fits everything made for Nema 23. It is also much stronger than any Nema 23 motor that you can get and can be wired to be parallel or serial.
