Dual Shaft Nema 24 Stepper Motor 1.8 Deg 3.1Nm (439 oz.in) 60x60x80mm D-Cut Shaft 8 Wires

Dual Shaft Nema 24 Stepper Motor 1.8 Deg 3.1Nm (439 oz.in) 60x60x80mm D-Cut Shaft 8 Wires
NO.:24HS34-3008D
Review: Post a review
Our Price:$33.14
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $31.48 5%
10 $30.82 7%
50 $29.83 10%
100 $28.83 13%
Add To Cart

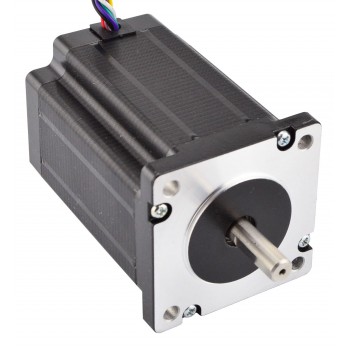

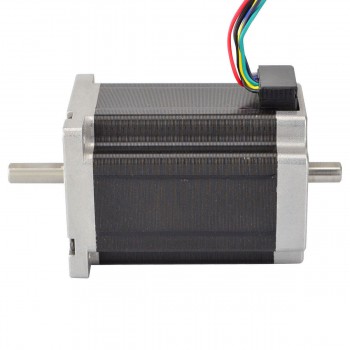

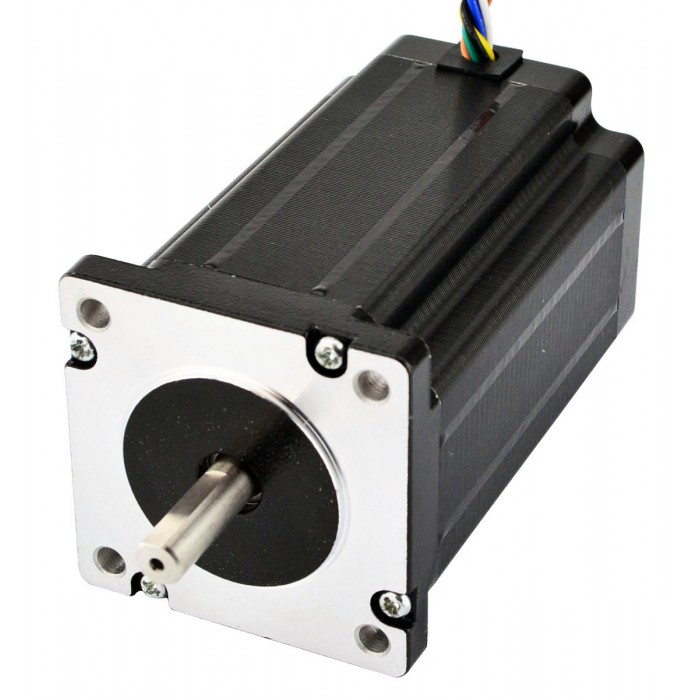

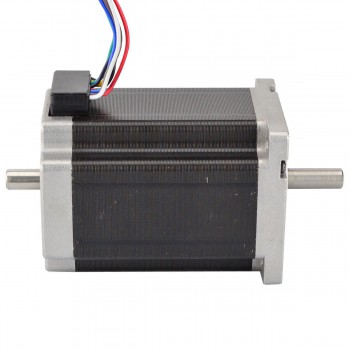

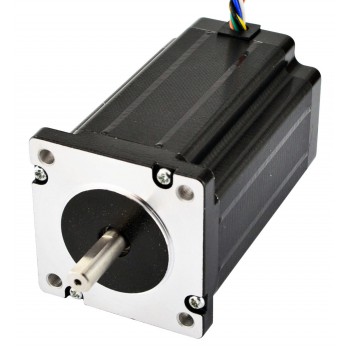

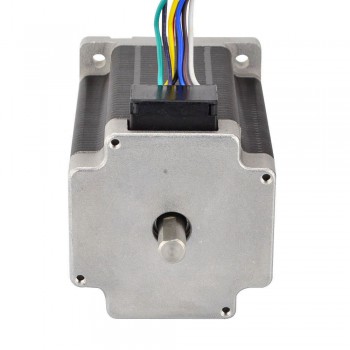

This nema 24 stepper motor with step angle 1.8deg and size 60x60x80mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 2.2Nm(312oz.in) with unipolar connection and 3.1Nm(439oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

Manufacturer Part Number: 24HS34-3008D

Motor Type: Unipolar/Bipolar

Step Angle: 1.8 deg

Holding Torque(Bipolar): 3.1Nm(439oz.in)

Holding Torque(Unipolar): 2.2Nm(312oz.in)

Rated Current(Bipolar Serial): 2.1A

Rated Current(Bipolar Parallel): 4.2A

Rated Current(Unipolar): 3.0A

Phase Resistance(Bipolar Serial): 2.6ohms

Phase Resistance(Bipolar Parallel): 0.65ohms

Phase Resistance(Unipolar): 1.3ohms

Inductance(Bipolar Serial): 12.8mH ± 20%(1KHz)

Inductance(Bipolar Parallel): 3.2mH ± 20%(1KHz)

Inductance(Unipolar): 3.2mH ± 20%(1KHz)



Physical Specification

Frame Size: 60 x 60mm

Body Length: 88mm

Shaft Diameter: Φ8mm

Front Shaft Length: 24mm

Rear Shaft Length: 15mm

D-cut Length: 20mm

Number of Leads: 8

Lead Length: 600mm

Weight: 1.4kg



Connection

A+
A-
C+
C-
B+
B-
D+
D-
RED
YEL
BLK
BLU
WHT
PUR
GRN
BRN



Resources

Full Datasheet: 24HS34-3008D.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Bipolar 3Nm (425oz.in) 3.78V 4.2A 57x57x114mm 4 Wires
Next: Dual Shaft Nema 24 Stepper Motor Bipolar 1.8 Deg 3.1Nm (439 oz.in) 3.5A 3.85V 60x60x88mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Holding Torque (Ncm) 310
Holding Torque (oz.in) 439
Inductance(mH) 3.2
Phase Resistance(ohm) 0.65
Rated Current (A) 4.2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 88
Frame Size(mm) 60x60
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 24
No. of Lead 8
Lead Length(mm) 600
Weight(g) 1340
