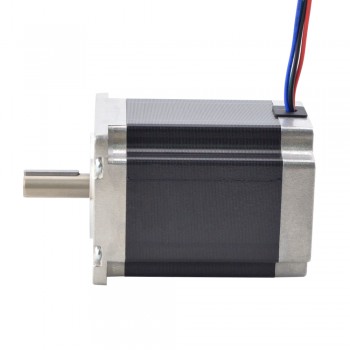

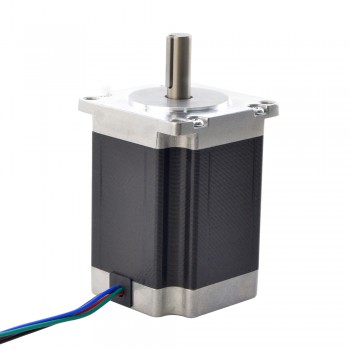

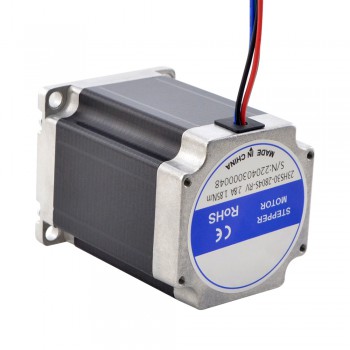

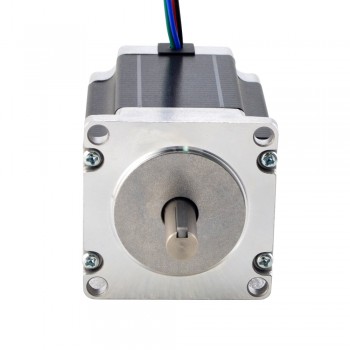

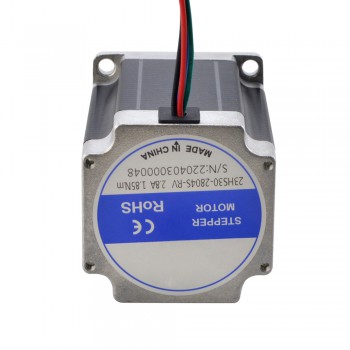

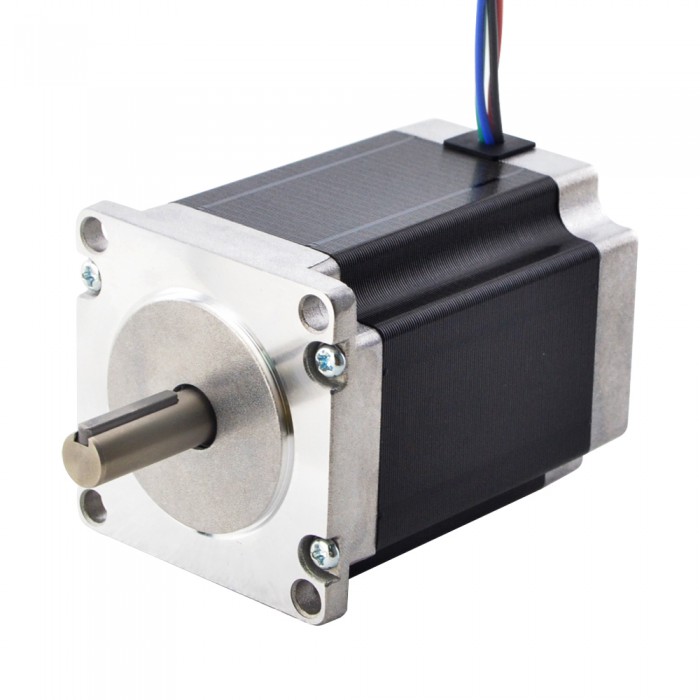

Nema 23 Stepper Motor 1.85Nm/256.9oz.in with 9mm Shaft for NMRV30 Worm Gear Speed Reducer
This motor has a torque of 1.9Nm(269oz.in) and its shaft is a 9mm keyway shaft, it can fit with NMRV30 Worm Gearbox directly.
Electrical Specification
Manufacturer Part Number: 23HS30-2804S-RV
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 1.9Nm(269oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms
Inductance: 4.8mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 76.5mm
Shaft Diameter: Φ9mm
Shaft Length: 25mm
Key-way Length: 20mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.2kg
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
- Full Datasheet:23HS30-2804S-RV.pdf
- Torque Curve:23HS30-2804S-RV_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 190 |
| Holding Torque (oz.in) | 269 |
| Inductance(mH) | 4.8 |
| Phase Resistance(ohm) | 1.13 |
| Rated Current (A) | 2.8 |
| Step Angle(deg.) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 76.5 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 9 |
| Shaft Length(mm) | 25 |
| Single Shaft/Dual Shaft | Single Shaft |
| Output Shaft Type | Keyway |
