Dual Shaft Nema 23 Stepper Motor Bipolar 3Nm (425oz.in) 3.78V 4.2A 57x57x114mm 4 Wires
Special Offer in September 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$37.76

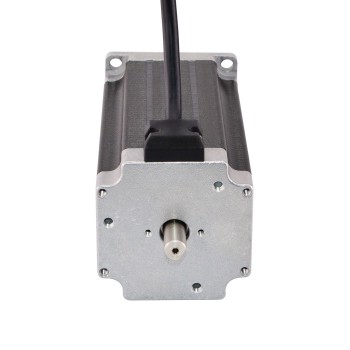

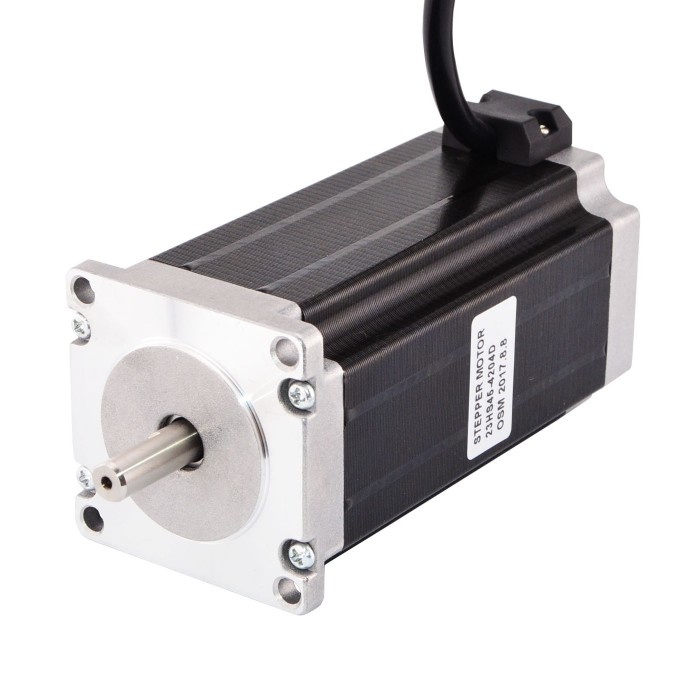

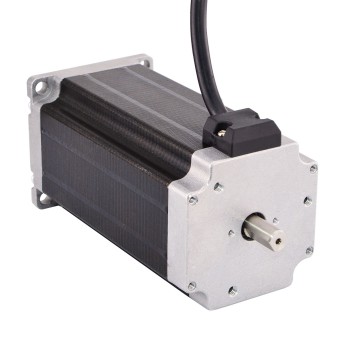

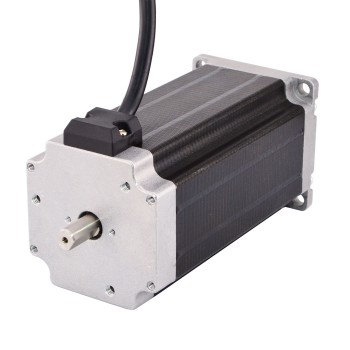

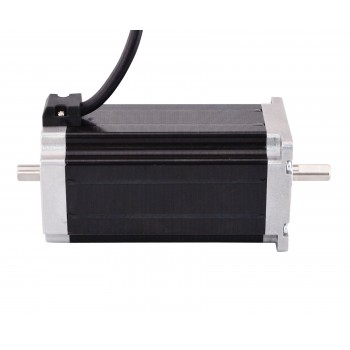

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.
Electrical Specification
Manufacturer Part Number: 23HS45-4204D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 2.8Nm(425oz.in)
Rated Current/phase: 4.2A
Voltage: 3.78V
Phase Resistance: 0.9ohms
Inductance: 3.8mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Length: 15mm
Rear Shaft Length: 13.5mm
Rear Shaft Diameter: Φ8mm
Number of Leads: 4
Lead Length: 500mm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Resources
Motor Datasheet: 23HS45-4204D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 280 |
| Holding Torque (oz.in) | 396.5 |
| Inductance(mH) | 3.8 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 113 |
| Frame Size(mm) | 57x57 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 1750 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
