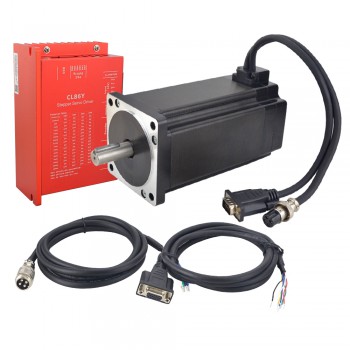

1 Axis Closed Loop Stepper Motor CNC Kit YE Series 2 Phase 4.0 Nm 5A Nema 24 Closed Loop Motor & Driver

1 Axis Closed Loop Stepper Motor CNC Kit YE Series 2 Phase 4.0 Nm 5A Nema 24 Closed Loop Motor & Driver
NO.:1-OK2D57ECS-24HE40
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$101.63
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $96.55 5%
5 $94.52 7%
10 $91.47 10%
50 $88.42 13%
Add To Cart

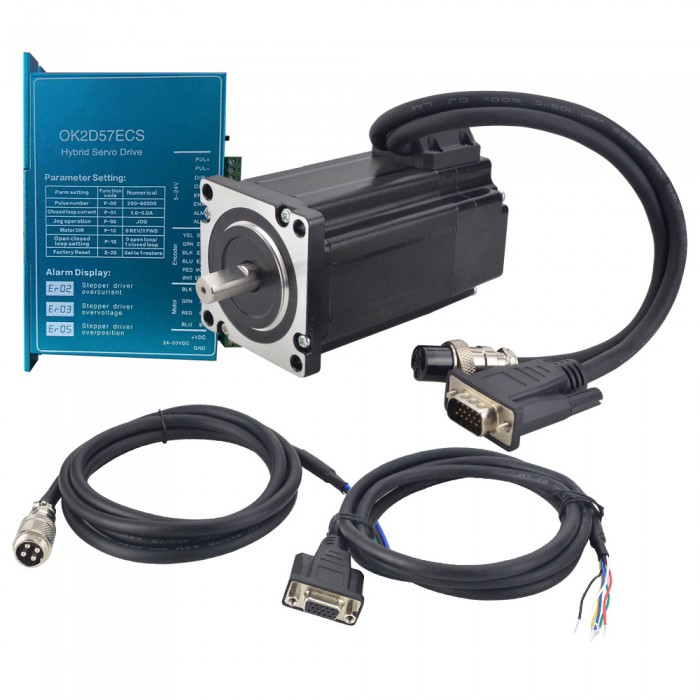

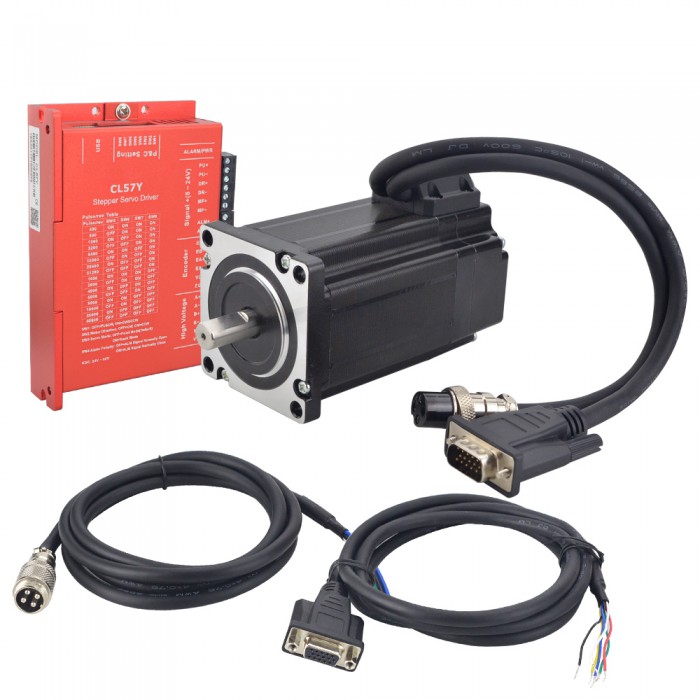

This CNC kit included:

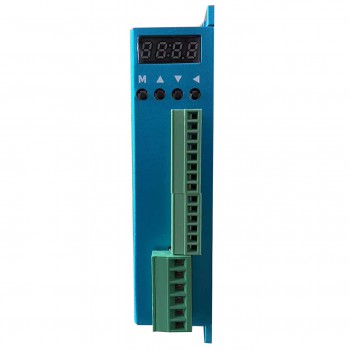

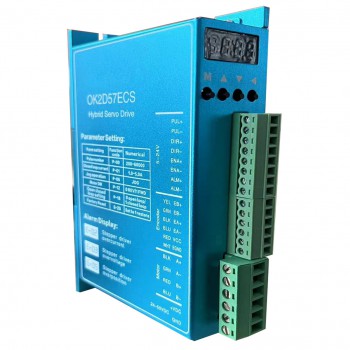

  • 1 x Closed Loop Stepper Driver 1~6A 24~48VDC for Nema 23, Nema 24 Stepper Motor OK2D57ECS

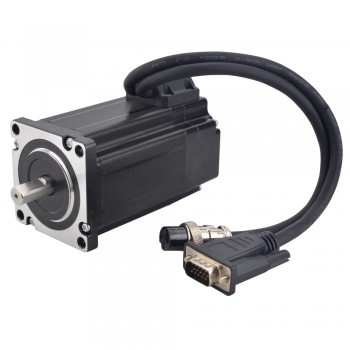

  • 1 x E Series Nema 24 Closed Loop Stepper Motor 4.0 Nm(566.56oz.in) Encoder 1000CPR

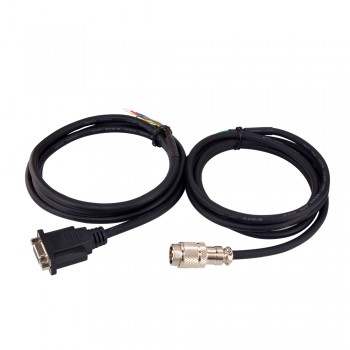

  • 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
  • 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug

Motor Specification

  • Part Number: 24HE40-5004D-E1000
  • Number of phase: 2
  • Holding Torque: 4.0 Nm(566.56oz.in)
  • Rated Current/phase: 5.0 A
  • Phase Resistance: 0.6 ohms± 10%
  • Inductance: 2.6 mH ± 20%(1KHz)
  • Frame Size: 60 x 60 mm
  • Body Length: 100 mm
  • Shaft Diameter: Φ10 mm
  • Shaft Length: 21 mm
  • Keyway Shaft Length: 15 mm
  • Lead Length: 300 mm

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

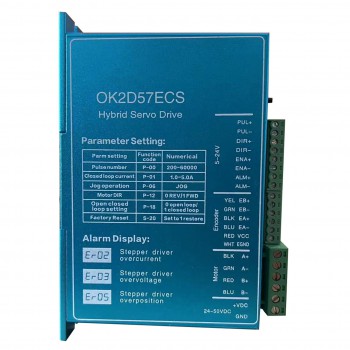

Driver Specification

Model:OK2D57ECS
Output Peak Current: 1~6.0A
Input Voltage: +24~48VDC (Typical 36VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Digital output port logic current:100mA
Digital output port voltage resistance:24V
Power:150W
Isolation Resistance: 500MΩ
Weight:300g;
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 200KHZ;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.



Connection

PIN
1
2
3
4
Color
White
Green
Blue
Black
Motor
A+
A-
B+
B-



PIN
2
3
1
13
11
12
Color
Red
White
Black
Blue
Yellow
Green
Encoder
VCC
EGND
EA+
EA-
EB+
EB-



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed Loop Stepper Motor CNC Kit YE Series 2 Phase 3.0 Nm 5A Nema 24 Closed Loop Motor & Driver
Next: 1 Axis Closed Loop Stepper Motor CNC Kit YE Series 4.8 Nm 6.0 A Nema 34 Closed Loop Motor & Driver
