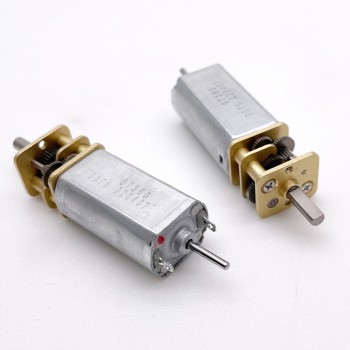

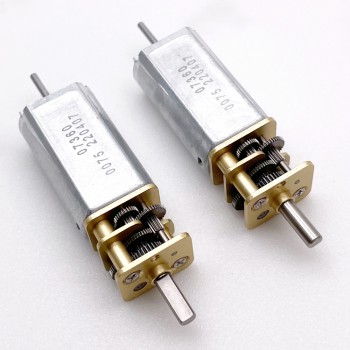

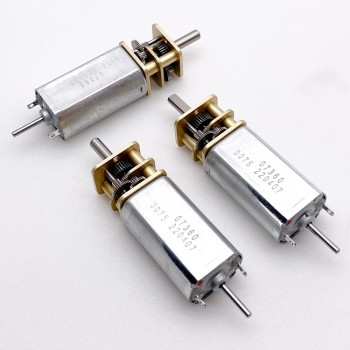

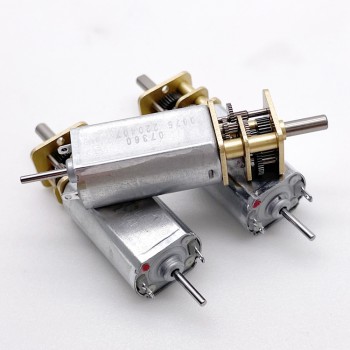

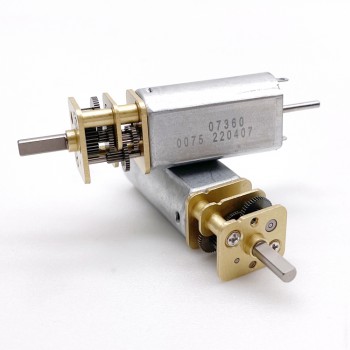

6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter

6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter
NO.:GM14-050SH
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$6.90

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $6.56 5%
30 $6.42 7%
50 $6.21 10%
100 $5.87 15%
Add To Cart

Videos

6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter

Features:
1.Small size dc gear motor with low speed and big torque
2.14mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

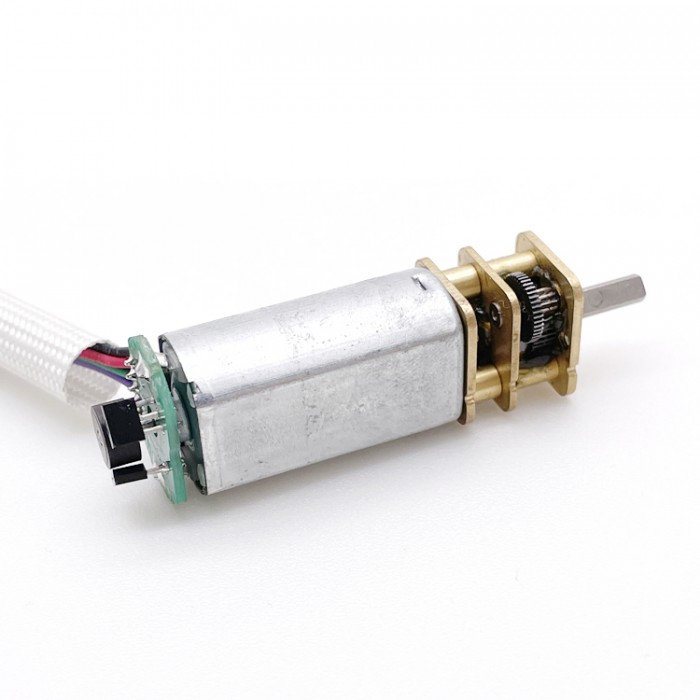

4.Dc Gear motors can match encoder, 3ppr
5.Reduction Ratio: 31、63、115、130、150、180、210、250、300、350;

Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Robot DIY

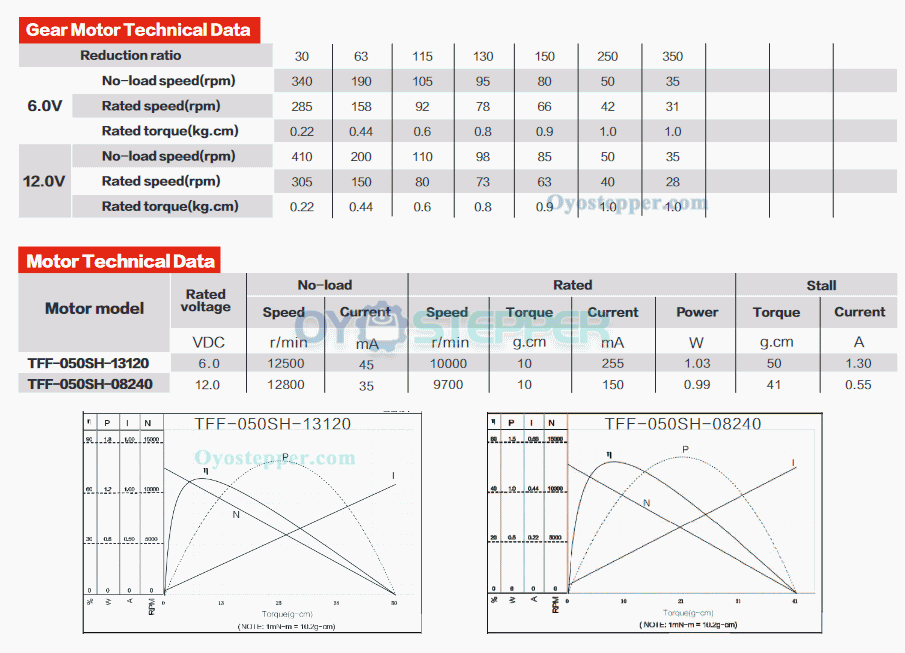

Electrical Specification:
Part Number:GM14-050SH
Rated Power:0.5W Max
Rated Speed:10rpm-1200rpm
Rated Voltage:6-12 VDC
Continuous Current(A):75-200mA
No-load speed:12800rmp
No-load current:30mA-50mA
Rated Torque:1kg.cm
Gearbox Type:Spur gearbox
Average Backlash no load:<3°
Reduction ratio:3-1000
Output power:1.8W
Efficiency:LE 3
Noise:30cm.40-50db

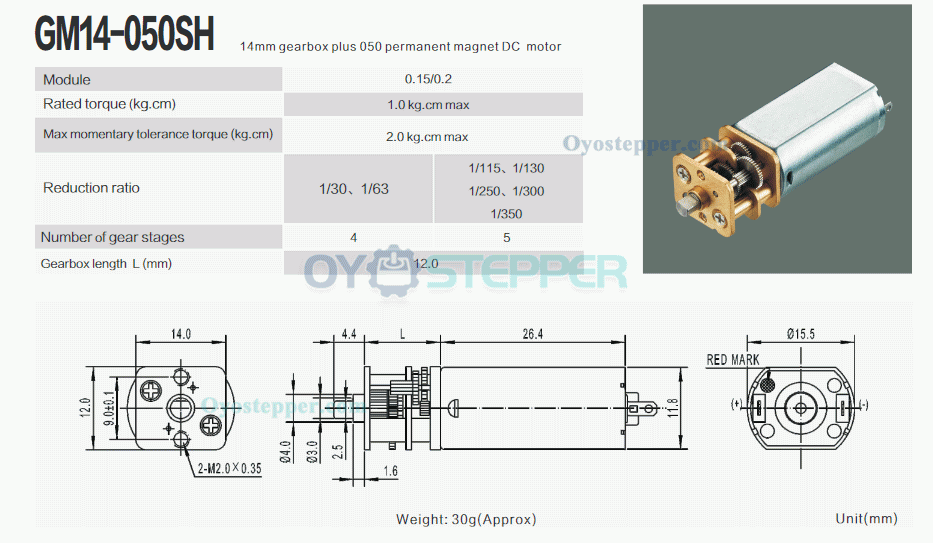

Physical Specification:
Motor Size:11.8mm*26.4mm
Gearbox size:14*12mm
Shaft Diameter:3mm
Shaft Length: 4.4mm
Weight:30g;



 6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter

6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 6V 12V Brushed DC Gear Motor Brush PMDC Motor 0.5kg.cm 12mm*29.6mm
Next: 6V 12V Brushed DC Gear Motor with Spur Gear 0.5kg.cm Small Electric DC Gear Motor
Physical Specification
Frame Size(mm) 14*12mm
Shaft Diameter(mm) 3mm
Shaft Length(mm) 4.4mm
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 30g
Gearbox Type DC gear motor
Electrical Specification
Rated Power(W) 0.5W
Rated Voltage(V) 6-12 VDC
Current(A) 75-200mA
Rated Torque(kg.cm) 1kg.cm
Rated Speed(rpm) 10rpm-1200rpm
