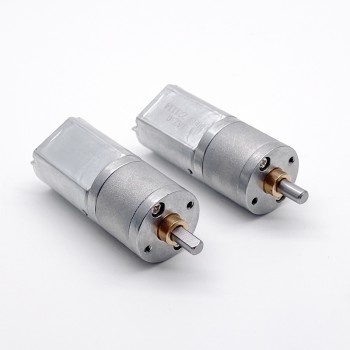

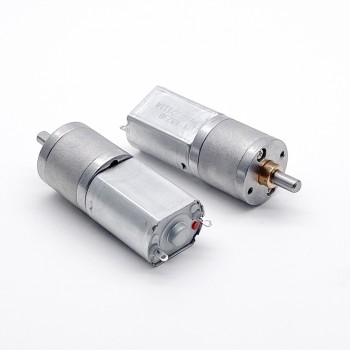

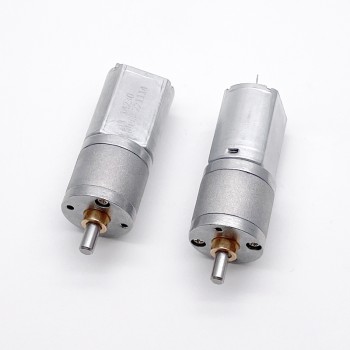

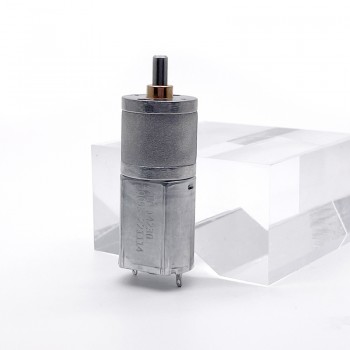

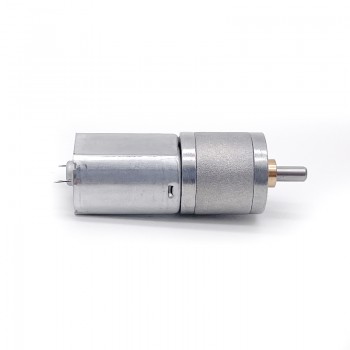

2Pcs 6V 12V High Torque Brushed DC Gear Motor with Spur Gear 2.5kg.cm Speed Reducer Gear Motor

2Pcs 6V 12V High Torque Brushed DC Gear Motor with Spur Gear 2.5kg.cm Speed Reducer Gear Motor
NO.:GM20-130SH
Post a review
Our Price:$12.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $12.34 5%
30 $12.08 7%
50 $11.68 10%
100 $11.04 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.20mm gear motor provide 0.3Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,3ppr
5.Reduction Ratio: 29、31、56、73、78、107、140、182、195、268、349、456、488;

4 stages: 29:1 / 31:1
5 stages: 56:1 / 73:1
6 stages: 107:1 / 182:1
7 stages: 268:1 / 349:1 / 456:1 / 488:1

Application:
BOAT, Home Appliance, SMART HOME, Other.

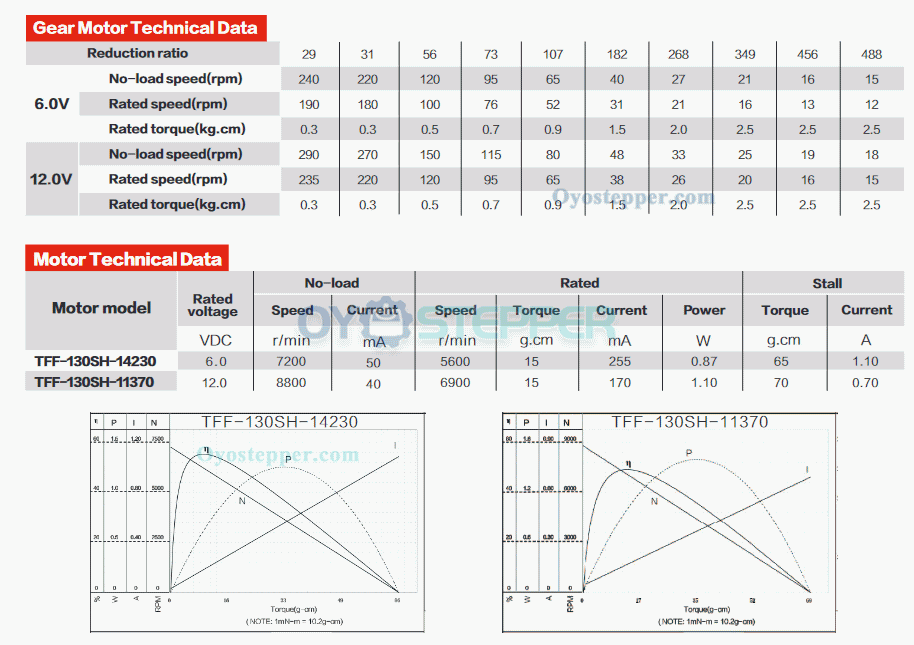

Electrical Specification:
Part Number:GM20-130SH
Rated Voltage:6/12VDC
Rated Torque:2.5kg.cm
Max momentary tolerance torque: 5.0kg.cm
Rated current:255mA(6V)/170mA(12V)
No Load Speed W/O Gearbox: 7200RPM(6V)/8800RPM(6V)
Rated Speed W/O Gearbox: 5600RPM(6V)/6900RPM(12V)
No Load Speed W Gearbox: 15-240 RPM
Rated Speed W/ Gearbox:12-235 RPM
Rated Power:0.87W(6V) / 1.1W(12V)
Gear type:Spur gearbox
Efficiency:IE 1
Noise:30cm.40-50db

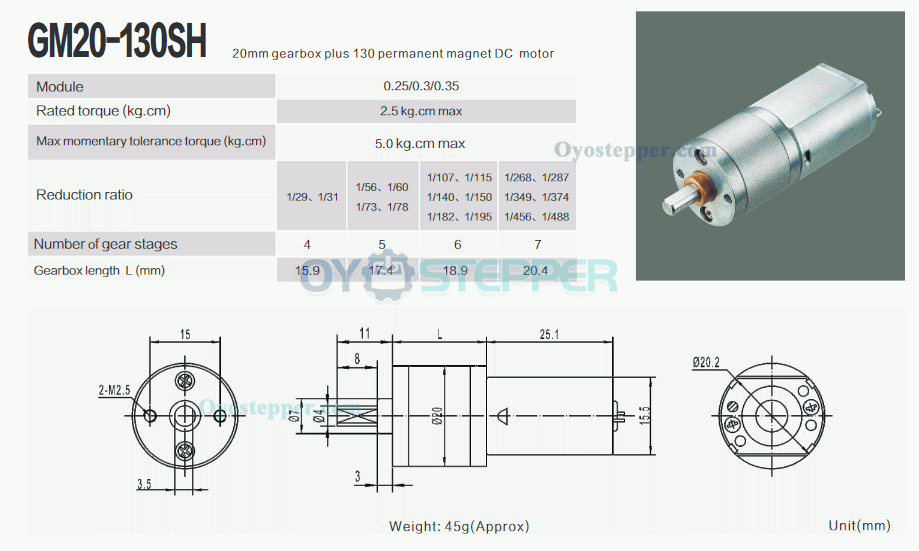

Physical Specification:
Motor Size:20.2x15.5x25.1mm
Gearbox Length:15.9mm / 17.4mm / 18.9mm / 20.4mm
Flange size:Φ20mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
Shaft Length:8mm
Shaft Diameter:4mm
Weight:45g;

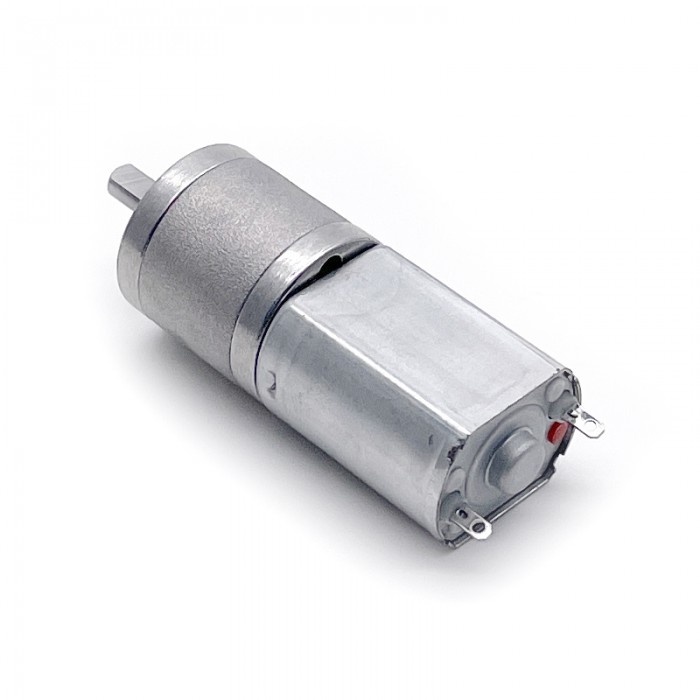

2Pcs 6V 12V High Torque Brushed DC Gear Motor with Spur Gear 2.5kg.cm Speed Reducer Gear Motor

2Pcs 6V 12V High Torque Brushed DC Gear Motor with Spur Gear 2.5kg.cm Speed Reducer Gear Motor

Resources

GM20-130SH.pdf



Resources

GM20-130SH.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 6V 12V Brushed DC Gear Motor with Spur Gear 0.5kg.cm Brush PMDC Motor
Next: 2Pcs 6V 12V Brushed DC Gear Motor with Encoder 2.5kg.cm Electric Permanent Magnet DC Motor
Physical Specification
Body Length(mm) 25+gearbox
Frame Size(mm) Φ20
Shaft Diameter(mm) 4
Shaft Length(mm) 8
Weight(g) 45
Gearbox Length(mm) 15.9 / 17.4 / 18.9 / 20.4
Gear Ratio 29:1 / 31:1 / 56:1 / 73:1 / 107:1 / 182:1 / 268:1 / 349:1 / 456:1 / 488:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Spur Gearbox
Electrical Specification
Rated Power(W) 0.87 / 1.1
Rated Voltage(V) 6 / 12
Rated Current (A) 0.255 / 0.17
Rated Speed(rpm) 5600 / 6900
Rated Torque(kg.cm) 0.015
