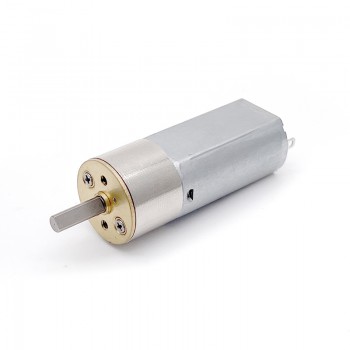

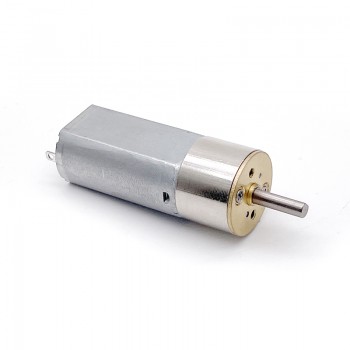

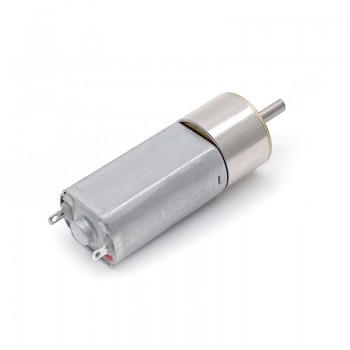

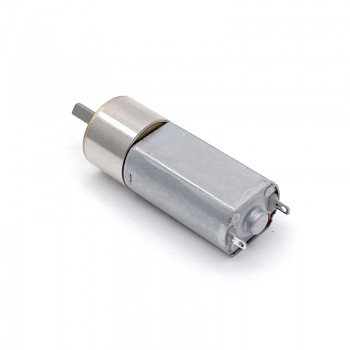

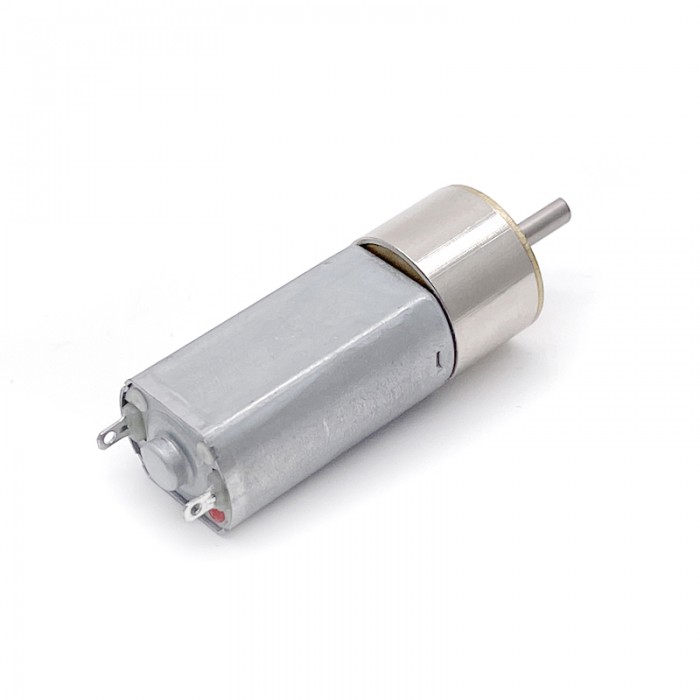

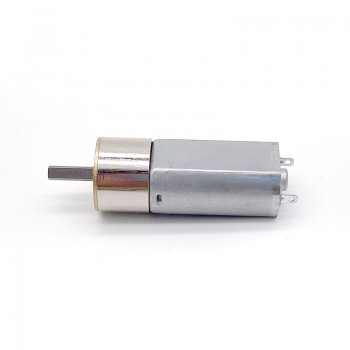

2Pcs 6V 12V Brushed DC Gear Motor with Spur Gear 0.5kg.cm Brush PMDC Motor
Features:
1.Small size dc gear motor with low speed and big torque
2.16mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,3ppr
5.Reduction Ratio: 10/20/35/63/86/115/150/250/360;
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Robot DIY.

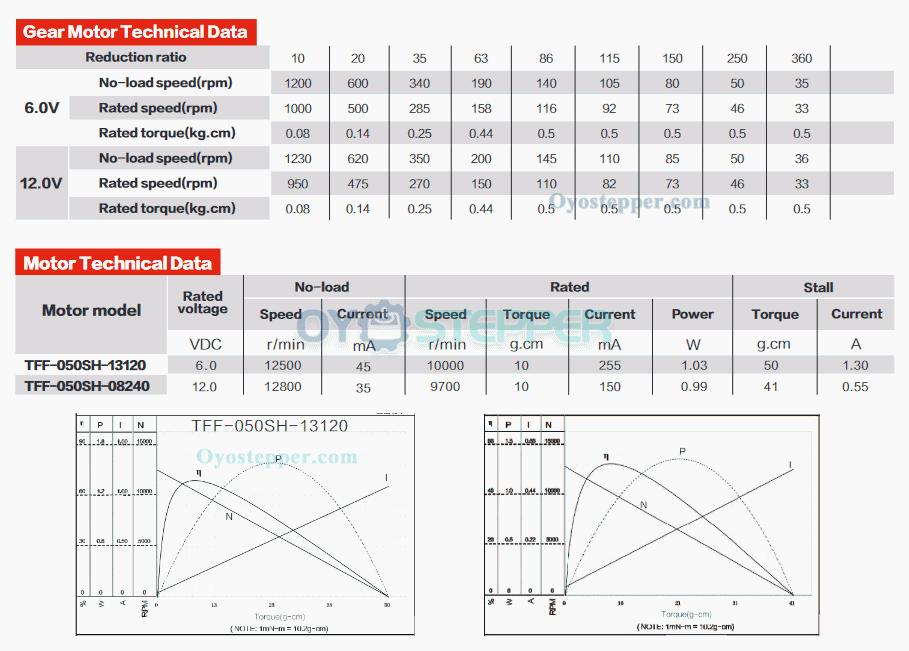

Electrical Specification：
Part Number:GM16-050SH
Rated Voltage:6/12VDC
Rated Torque:0.5kg.cm
Max momentary tolerance torque: 1.0kg.cm
Rated current:255mA(6V)/150mA(12V)
No Load Speed W/O Gearbox: 12500RPM(6V)/12800RPM(6V)
Rated Speed W/O Gearbox: 10000RPM(6V)/9700RPM(12V)
No Load Speed W Gearbox: 35-1230 RPM
Rated Speed W/ Gearbox:33-1000 RPM
Rated Power:1.03W(6V) / 0.99W(12V)
Motor type:Brushed
Gearbox Type:Spur gearbox
Encoder:1-1024ppr
Output power:2W
Efficiency:IE 3
Noise:30cm.40-50db

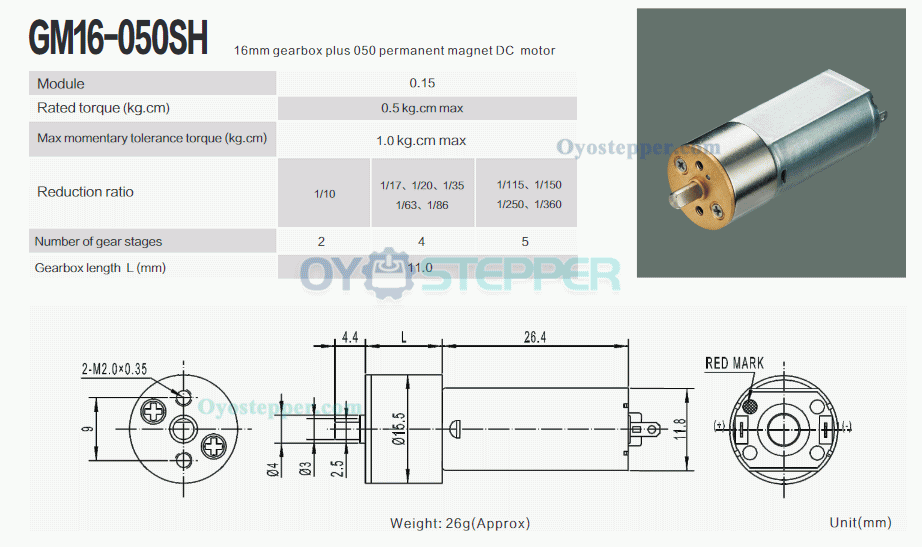

Physical Specification:
Motor Size:15.5x11.8x26.4mm
Gearbox Length:11mm
Flange size:Φ15.5mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
Shaft Length:4.4mm
Shaft Diameter:3mm
Weight:26g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Shaft Length(mm) | 4.4 |
| Frame Size(mm) | Φ15.5 |
| Gearbox Length(mm) | 11 |
| Gear Ratio | 10:1 / 20:1 / 35:1 / 63:1 / 86:1 / 115:1 / 150:1 / 250:1 / 360:1 |
| Body Length(mm) | 26.4+gearbox |
| Shaft Diameter(mm) | 3 |
| Weight(g) | 26 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Gearbox Type | Spur Gear |
| Electrical Specification | |
| Rated Voltage(V) | 6 / 12 |
| Rated Current (A) | 0.255 / 0.15 |
| Rated Speed(rpm) | 9700 / 10000 |
| Rated Power(W) | 1.03 / 0.99 |
| Rated Torque(kg.cm) | 0.01 |
