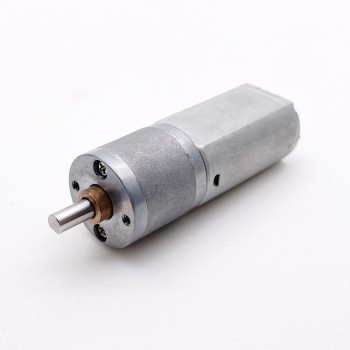

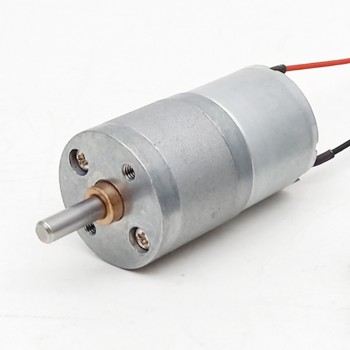

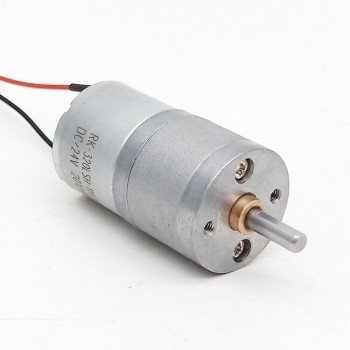

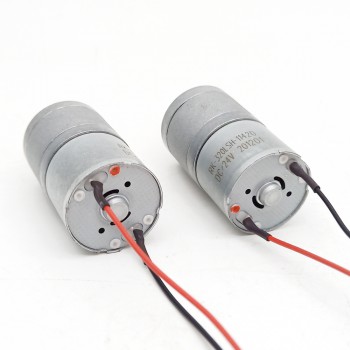

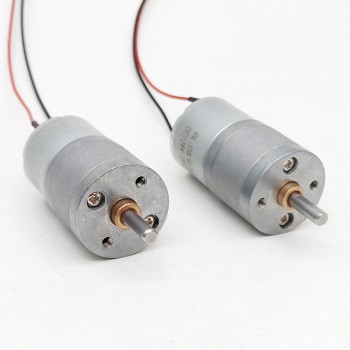

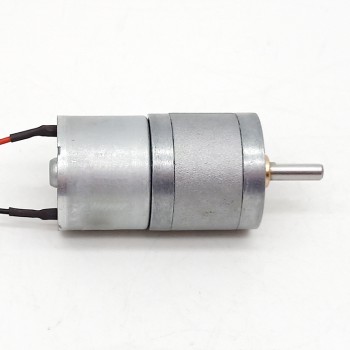

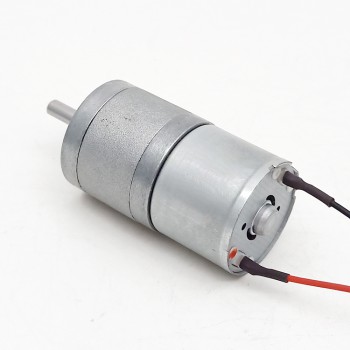

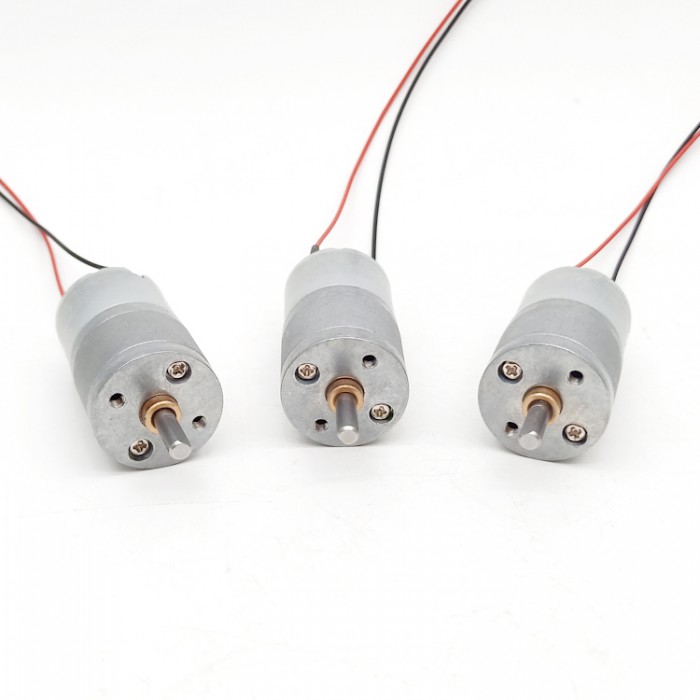

2Pcs 6V 12V High Torque Brush DC Gear Motor with Spur Gearbox 3kg.cm Permanent Magnet Motor
Features:
1.Small size dc gear motor with low speed and big torque
2.25mm gear motor provide 0.5Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、10、21、34、47、78、103、130、227、499;
2 stages: 4.2:1
3 stages: 10:1
4 stages: 21:1
5 stages: 34:1/47:1
6 stages: 78:1/103:1
7 stages: 130:1/227:1
7 stages: 499:1
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment.

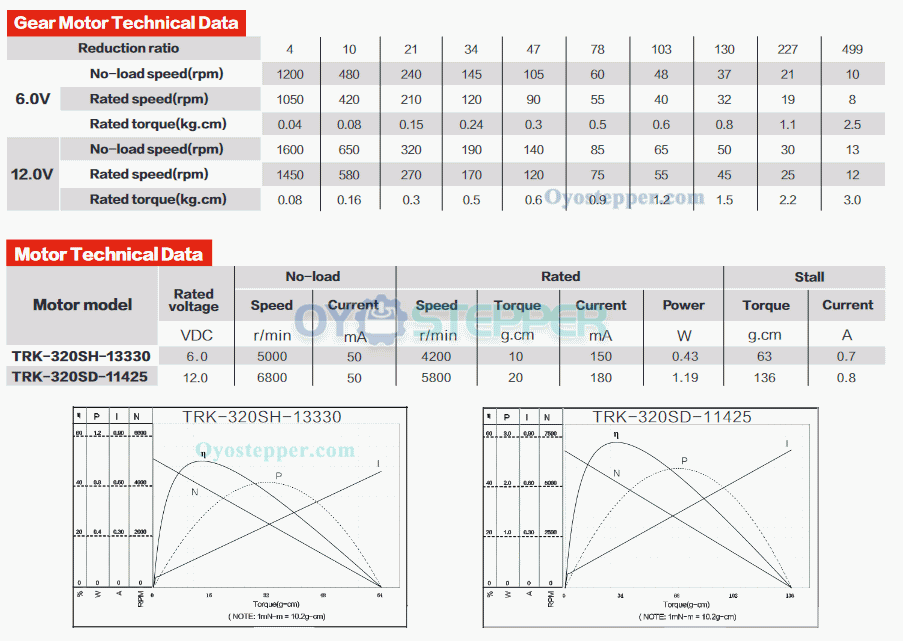

Electrical Specification：
Part Number:GM25-320SH
Rated Voltage:6/12VDC
Rated Torque:3.0kg.cm
Max momentary tolerance torque: 6.0kg.cm
Rated current:150mA(6V)/180mA(12V)
No Load Speed W/O Gearbox: 5000RPM(6V)/6800RPM(12V)
Rated Speed W/O Gearbox: 4200RPM(6V)/5800RPM(12V)
No Load Speed W Gearbox: 10-1600 RPM
Rated Speed W/ Gearbox:8-1450 RPM
Rated Power:0.43W(6V) / 1.19W(12V)
Gear type:Spur gearbox
Efficiency: 80%-90%
Noise:30cm.40-50db

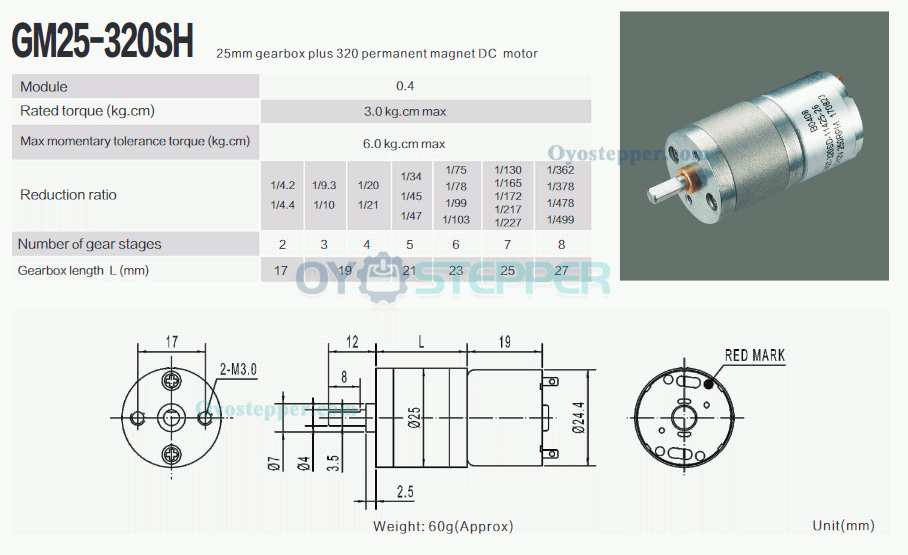

Physical Specification:
Motor Size:Φ24.4x19mm
Gearbox Length:17mm/19mm/21mm/23mm/25mm/27mm
Flange size:Φ25mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
D-cut Length:8mm
Shaft Length:9.5mm
Shaft Diameter:4mm
Weight:60g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Power(W) | 1.19 / 0.43 |
| Rated Voltage(V) | 6 / 12 |
| Rated Torque(kg.cm) | 3 |
| Rated Speed(rpm) | 8-1450 |
| Rated Current (A) | 0.15 / 0.18 |
| Physical Specification | |
| Body Length(mm) | 19+gearbox |
| Frame Size(mm) | Φ25 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 9.5 |
| Weight(g) | 60 |
| Gearbox Length(mm) | 17 / 19 / 21 / 23 / 25 / 27 |
| Gear Ratio | 4:1 / 10:1 / 21:1 / 34:1 / 47:1 / 78:1 / 103:1 / 130:1 / 227:1 / 499:1 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Gearbox Type | Spur gearbox |
