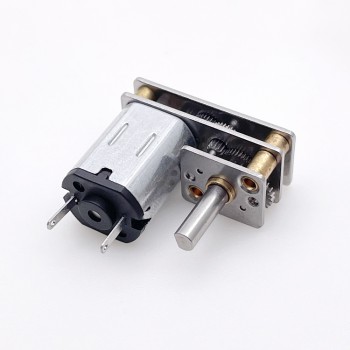

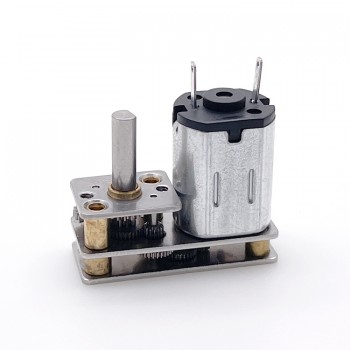

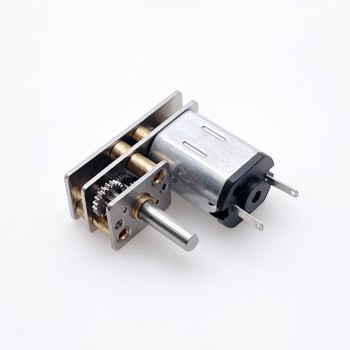

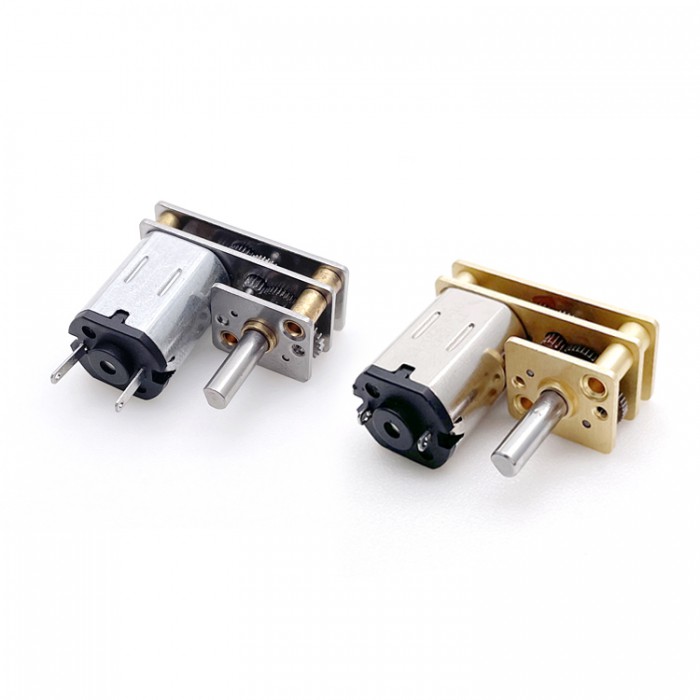

2Pcs 2.4V 5V Small Mini Brush DC Gear Motor Permanent Magnet DC Motor 0.21-0.5g.cm

2Pcs 2.4V 5V Small Mini Brush DC Gear Motor Permanent Magnet DC Motor 0.21-0.5g.cm
NO.:GM24-N20VA
Post a review
Our Price:$19.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.98 5%
30 $18.58 7%
50 $17.98 10%
100 $16.98 15%
Add To Cart



Features:
1. Small size dc gear motor with low speed and big torque.
2. 24×12mm gear motor provide 0.05Nm torque and more reliable.
3. Suitable to small diameter, low noise and big torque application.
4. Dc Gear motors can match encoder, 3ppr.
5. Reduction Ratio: 150/350/500


Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment.

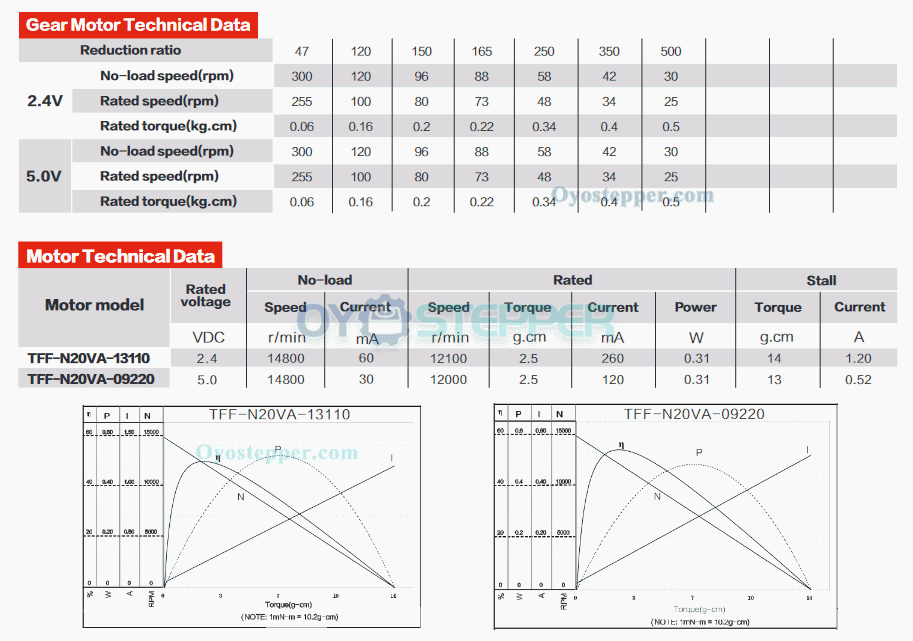

Electrical Specification:
Part Number:GM24-N20VA-0.15
Rated Voltage:2.4/5VDC
Rated Torque:0.5kg.cm
Max momentary tolerance torque: 1.0kg.cm
Rated current:260mA(2.4V)/120mA(6V)
No Load Speed W/O Gearbox: 14800RPM
Rated Speed W/O Gearbox: 12100RPM(2.4V)/12000RPM(6V)
No Load Speed W Gearbox: 30-300 RPM
Rated Speed W/ Gearbox:25-255 RPM
Rated Power:0.31W
Gear type:Spur gearbox
Motor type:Brushed
Efficiency:80%-90%
Noise:30cm.40-50db

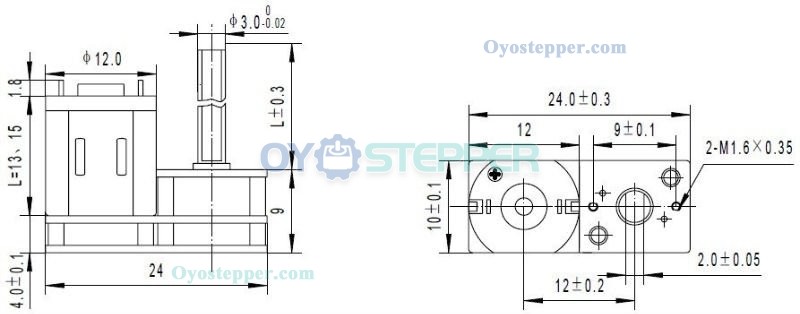

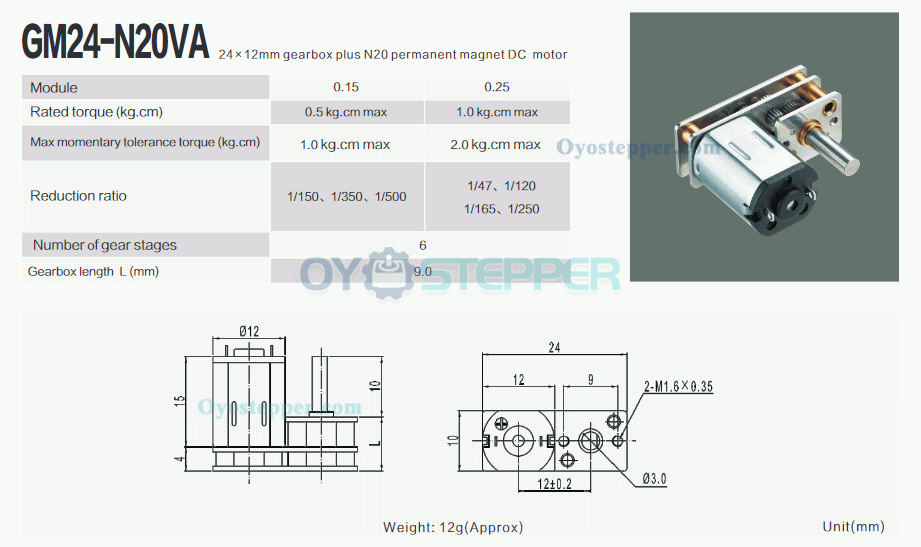

Physical Specification:

Motor Size:12x10x15mm
Gearbox Length:6mm
Flange size:12mmx10mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
Shaft Length:10mm
Shaft Diameter:3mm
Weight:12g;

2Pcs 2.4V 5V Small Mini Brush DC Gear Motor Permanent Magnet DC Motor 0.21-0.5g.cm

2Pcs 2.4V 5V Small Mini Brush DC Gear Motor Permanent Magnet DC Motor 0.21-0.5g.cm

2Pcs 2.4V 5V Small Mini Brush DC Gear Motor Permanent Magnet DC Motor 0.21-0.5g.cm

Resources

GM24-N20VA.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 6V 12V Brushed DC Gear Motor with Encoder 2.5kg.cm Electric Permanent Magnet DC Motor
Next: 2Pcs 6V 12V High Torque Brush DC Gear Motor with Spur Gearbox 3kg.cm Permanent Magnet Motor
Electrical Specification
Rated Voltage(V) 5 / 2.4
Rated Power(W) 0.31
Rated Torque(kg.cm) 0.5
Rated Speed(rpm) 25-255
Rated Current (A) 0.26 / 0.12
Physical Specification
Shaft Diameter(mm) 3
Shaft Length(mm) 10
Weight(g) 12
Frame Size(mm) 12X10
Shaft Type D-cut
Gearbox Length(mm) 6
Gearbox Type Spur gearbox
Gear Ratio 150:1 / 350:1 / 500:1
Single Shaft/Dual Shaft Single Shaft
