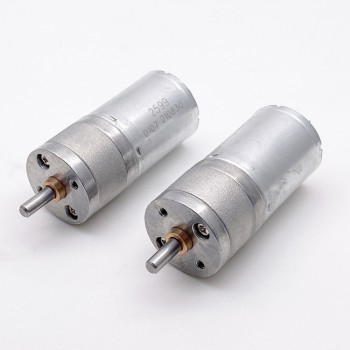

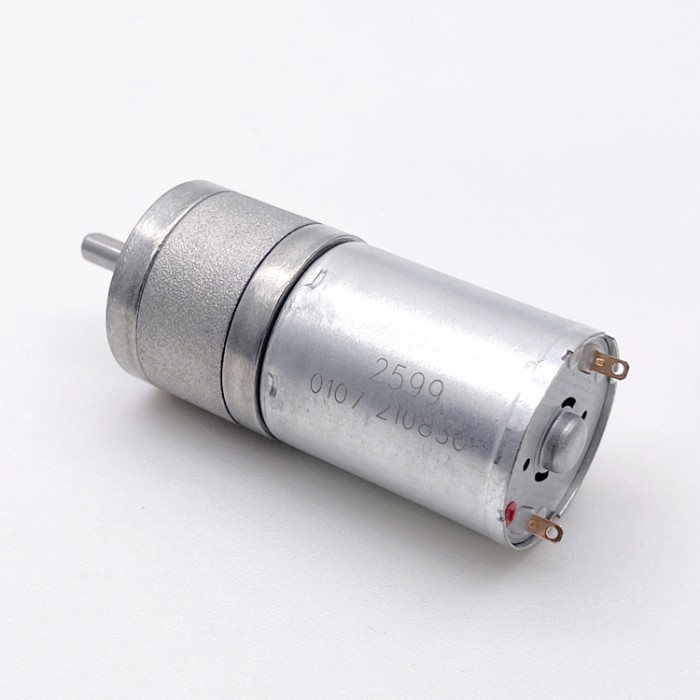

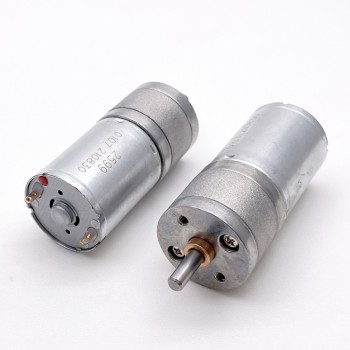

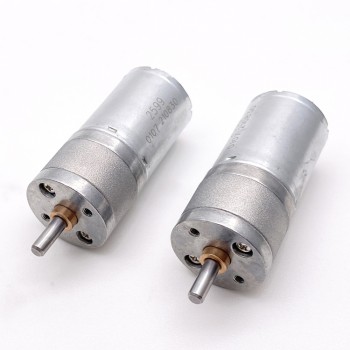

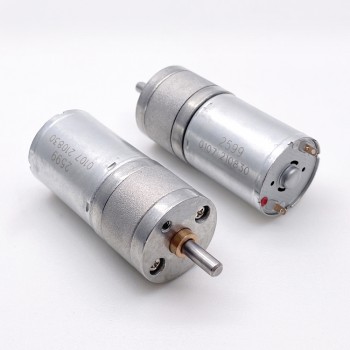

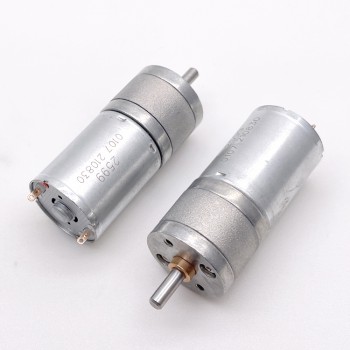

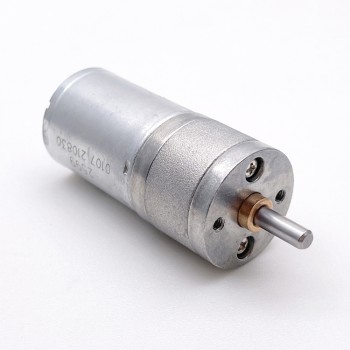

2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm

2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm
NO.:GM25-370CA
Post a review
Our Price:$21.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $20.88 5%
30 $20.44 7%
50 $19.78 10%
100 $18.68 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.25mm gear motor provide 0.5Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、10、21、34、45、47、78、103、130、172、227、378、499;

2 stages: 4.2:1
3 stages: 10:1
4 stages: 21:1
5 stages: 34:1/47:1
6 stages: 78:1/103:1
7 stages: 130:1/227:1
8 stages: 499:1

Application:
BOAT, Car, Electric Bicycle, Home Appliance, Industrial equipment.

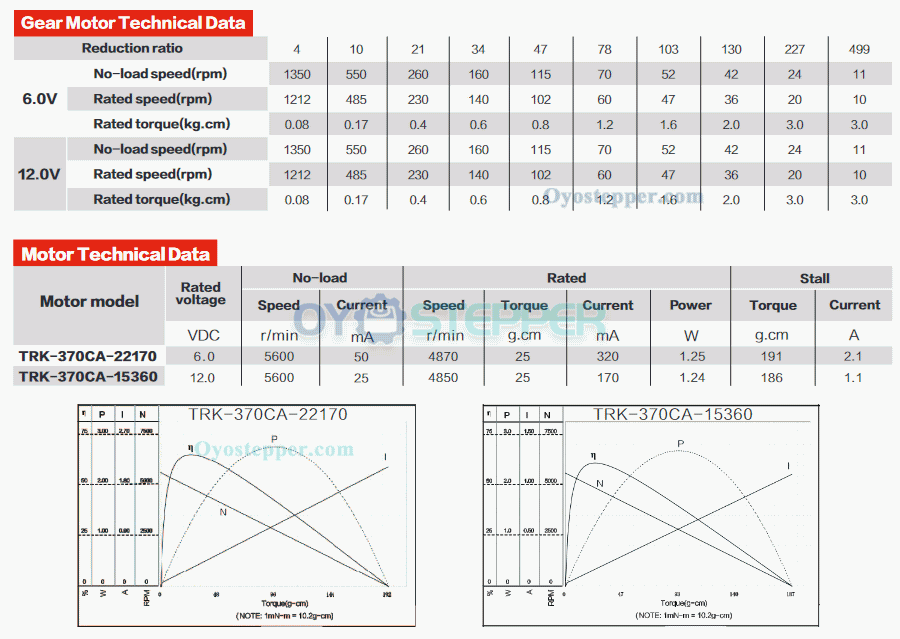

Electrical Specification:
Part Number:GM25-370CA
Rated Voltage:6/12VDC
Rated Torque:3.0kg.cm
Max momentary tolerance torque: 6.0kg.cm
Rated current:320mA(6V)/170mA(12V)
No Load Speed W/O Gearbox: 5600RPM(6V)/5600RPM(12V)
Rated Speed W/O Gearbox: 4870RPM(6V)/4850RPM(12V)
No Load Speed W Gearbox: 11-1350 RPM
Rated Speed W/ Gearbox:10-1212 RPM
Rated Power:1.25W(6V) / 1.24W(12V)
Gear type:Spur gearbox
Motor type:Brushed
Directions:CW/CCW
Axial Play:0.05-0.5mm
Efficiency: 80%-90%
Noise:30cm.40-50db

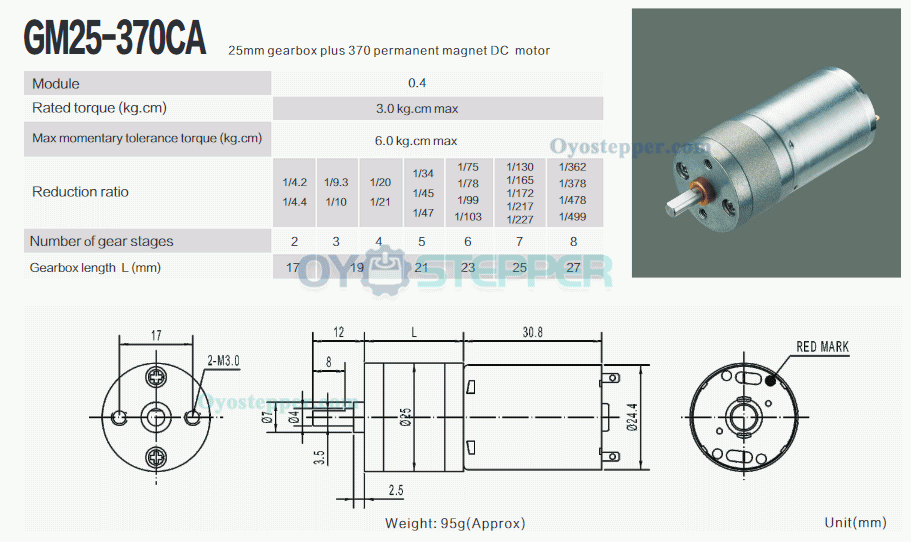

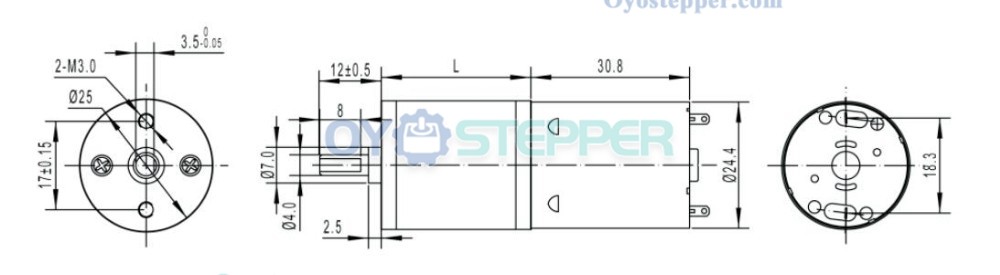

Physical Specification:
Motor Size:Φ24.4x30.8mm
Gearbox Length:17mm/19mm/21mm/23mm/25mm/27mm
Flange size:Φ25mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
D-cut Length:8mm
Shaft Length:9.5mm
Shaft Diameter:4mm
Weight:95g;



2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm



2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm

Resources

GM25-370CA.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 6V 12V High Torque Brush DC Gear Motor with Spur Gearbox 3kg.cm Permanent Magnet Motor
Next: 2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm
Electrical Specification
Rated Voltage(V) 12 / 6
Rated Power(W) 1.24 / 1.25
Rated Speed(rpm) 10-1212
Rated Current (A) 0.32 / 0.17
Rated Torque(kg.cm) 3
Physical Specification
Body Length(mm) 30.8+gearbox
Frame Size(mm) Φ25
Shaft Diameter(mm) 4
Shaft Length(mm) 9.5
Gearbox Length(mm) 17 / 19 / 21 / 23 / 25 / 27
Gear Ratio 4:1 / 10:1 / 21:1 / 34:1 / 47:1 / 78:1 / 103:1 / 130:1 / 227:1 / 499:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 95
Gearbox Type Spur gearbox
