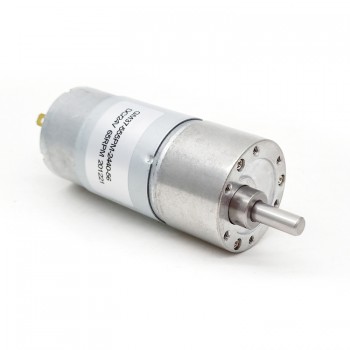

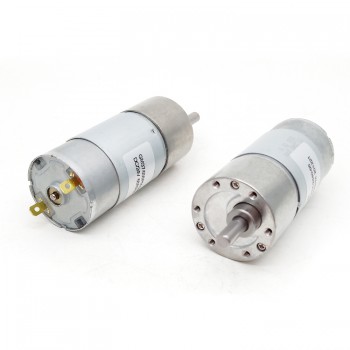

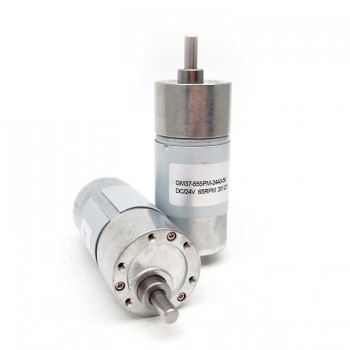

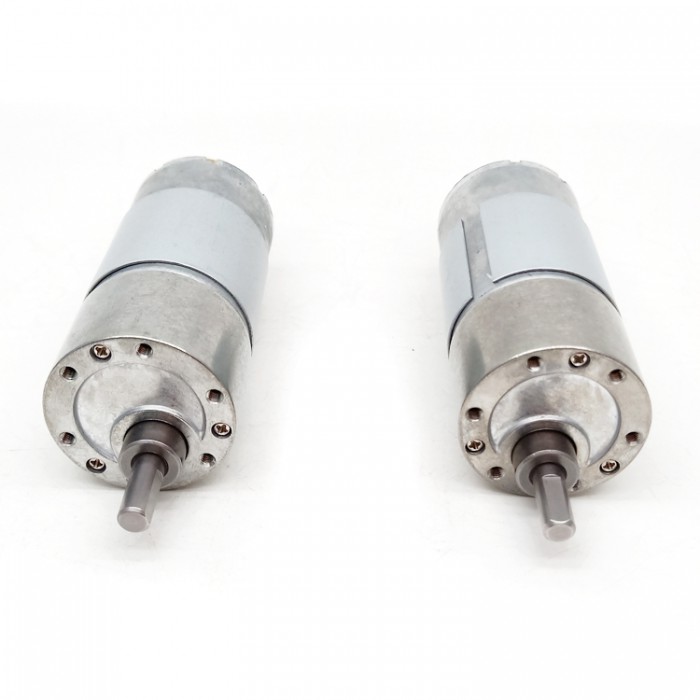

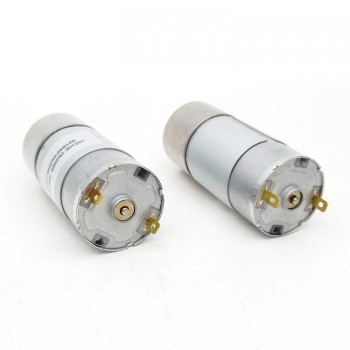

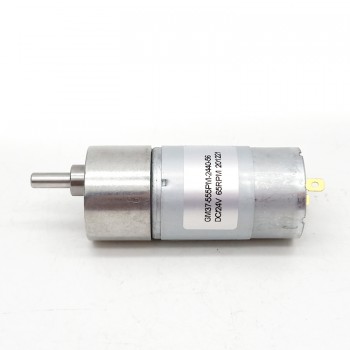

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm
NO.:GM37-555
Post a review
Our Price:$25.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $24.68 5%
30 $24.16 7%
50 $23.38 10%
100 $22.08 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.37mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio:29/49/67/98/126/145/202/294/378/635;

2 stages: 29:1/49:1
3 stages: 67:1/98:1/126:1/145:1
4 stages: 202:1/294:1/373:1/635:1

Application:
BOAT, Car, Electric Bicycle, Home Appliance, Industrial equipment.

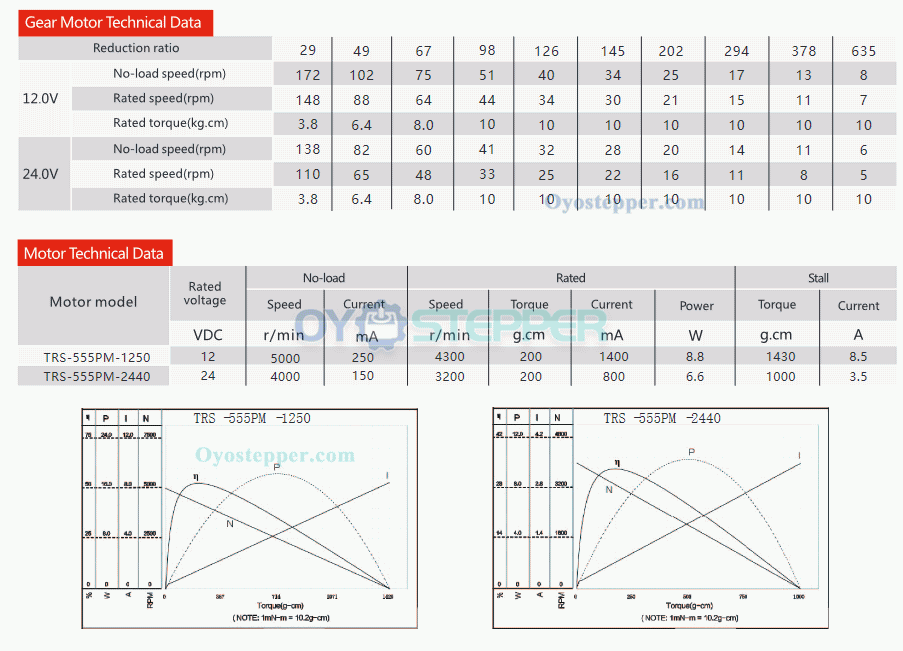

Electrical Specification:
Part Number:GM37-555
Rated Voltage:12/24VDC
Rated Torque:10.0kg.cm
Max momentary tolerance torque: 20.0kg.cm
Rated current:1400mA(12V)/800mA(24V)
No Load Speed W/O Gearbox: 5000RPM(12V)/4000RPM(24V)
Rated Speed W/O Gearbox: 4300RPM(12V)/3200RPM(24V)
No Load Speed W Gearbox: 8-172 RPM
Rated Speed W/ Gearbox:5-148 RPM
Rated Power:8.8W(6V) / 6.6W(12V)
Gear type:Spur gearbox
Motor type:Brushed
Efficiency: 65%
Axial play:0.05-0.3
Noise:30cm.40-50db;

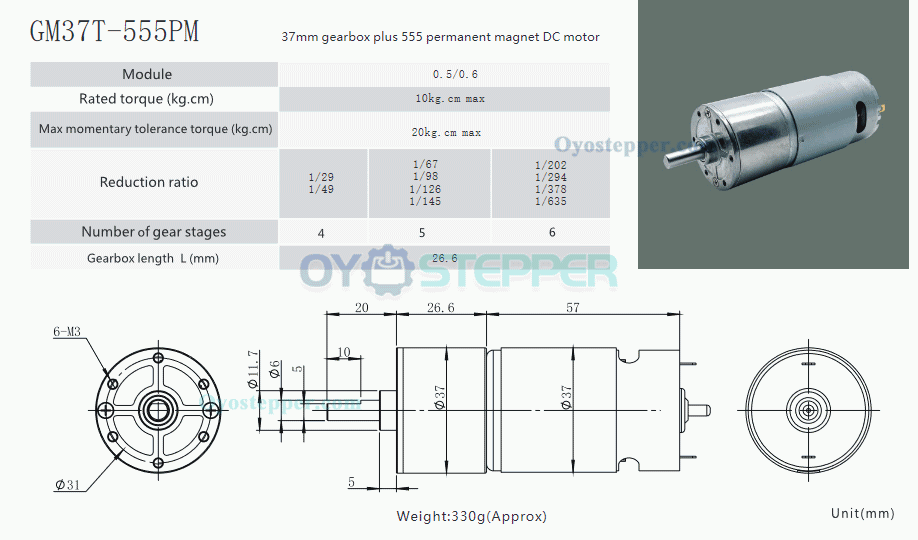

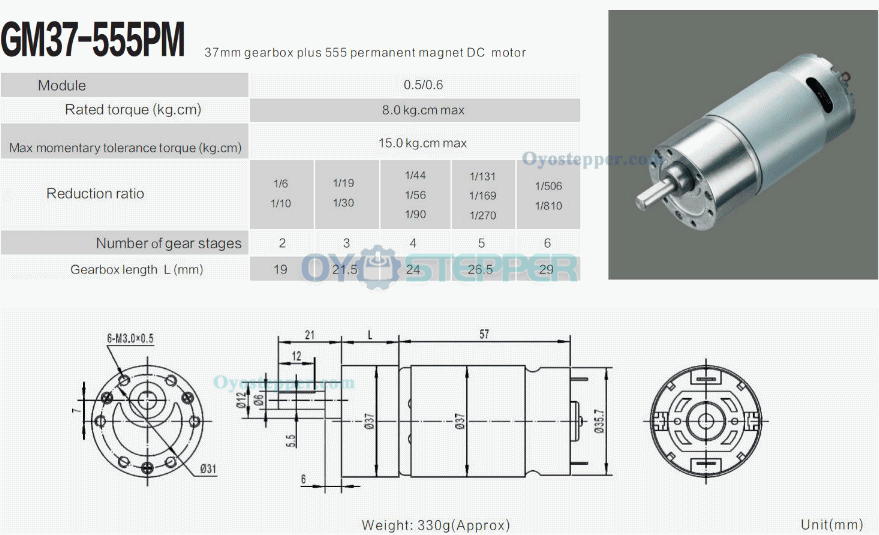

Physical Specification:
Motor Size:Φ35.7.5x57mm
Gearbox Length:26.6mm
Flange size:Φ37mm
Shaft Type:D-cut
D-cut Diameter:5mm
D-cut Length:10mm
Shaft Length:15mm
Shaft Diameter:6mm
Weight:330g;



2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm

Resources

GM37T-555PM.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm
Next: 2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Gearbox Type Spur gearbox
Frame Size(mm) Φ37
Body Length(mm) 57
Gearbox Length(mm) 26.6
Gear Ratio 294:1 / 378:1 / 635:1 / 29:1 / 49:1 / 67:1 / 98:1 / 126:1 / 145:1 / 202:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 330g
Electrical Specification
Rated Power(W) 6.6 / 8.8
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 10
Rated Speed(rpm) 5-148
Rated Current (A) 1.4 / 0.8
