2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter
NO.:GMP42-4278
Post a review
Our Price:$103.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $98.78 5%
10 $96.70 7%
50 $93.58 10%
100 $88.38 15%
Add To Cart

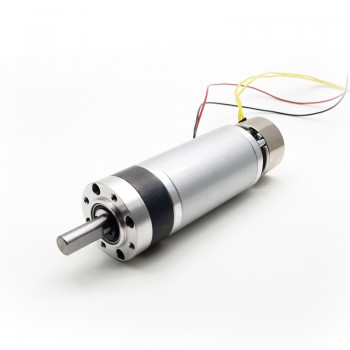

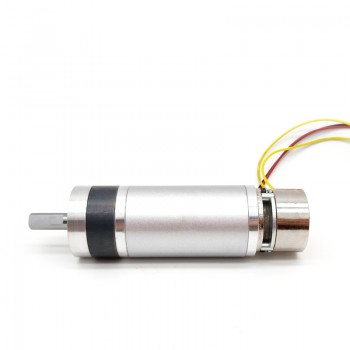

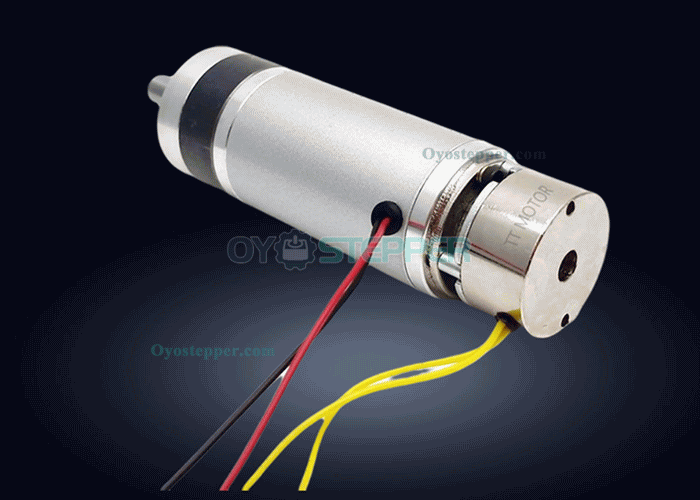

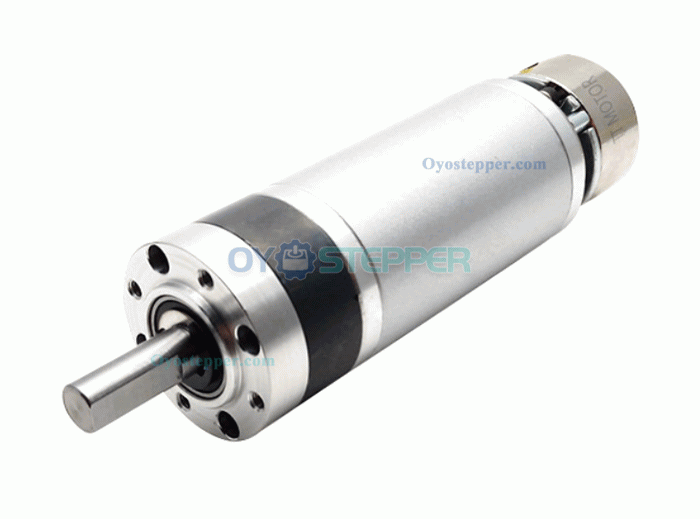

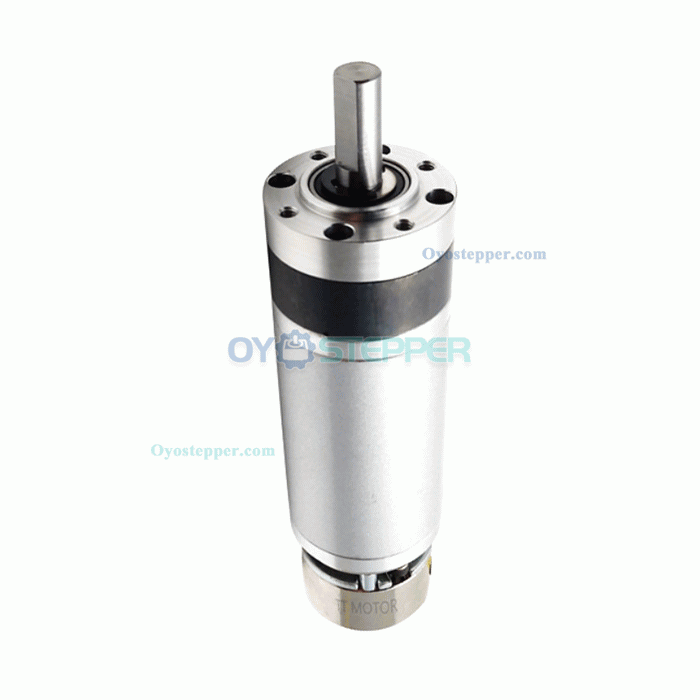

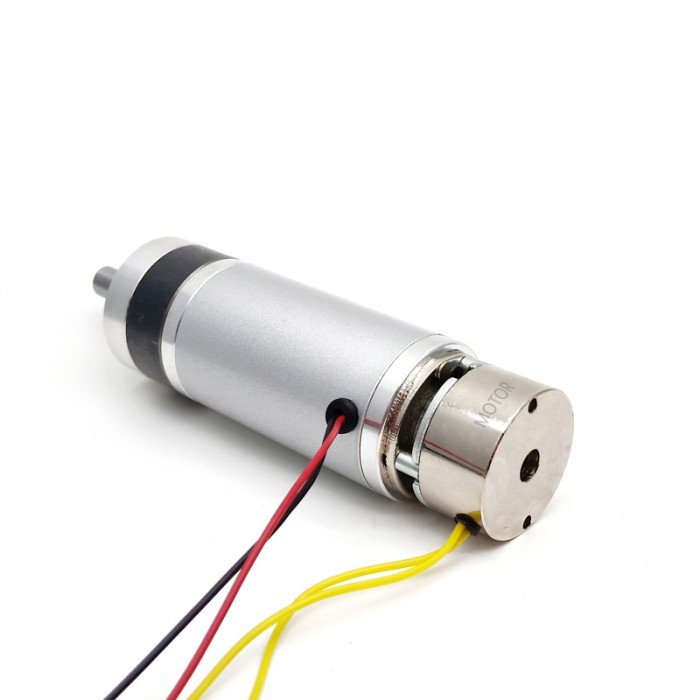

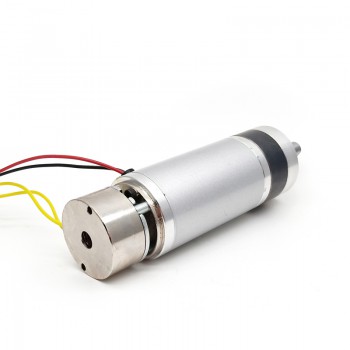

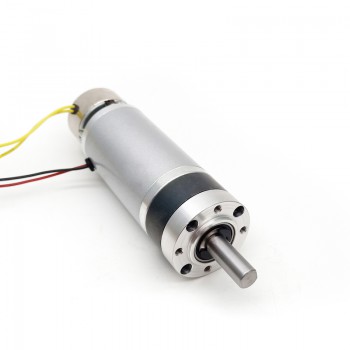

2Pcs Φ42mm 24V DC Planetary Gear Motor GMP42-4278 Shaft 9mm with Brake + Planetary Gearbox





Features:
1. Small size dc gear motor with low speed and big torque
2. 42mm gear motor provide 12.0Nm torque max and more reliable
3. Suitable to small diameter, low noise and big torque application
4. Dc Gear motors can match encoder,11ppr
5. Reduction Ratio: 4、19、51、100、139、189、264、369、516、720;


Application:
Electronic lock, robot.

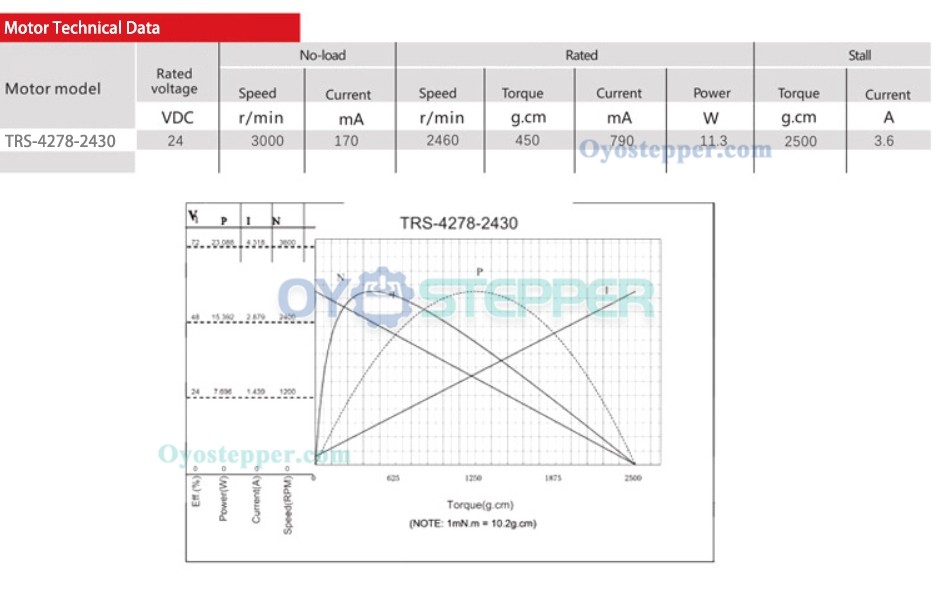

Electrical Specification:
Part Number:GMP42-4278
Rated Voltage:24VDC
Rated Torque:1.5Kg-60.0kg.cm
Rated current:790mA
No Load Speed W/O Gearbox: 3000RPM
Rated Speed W/O Gearbox: 2460RPM
No Load Speed W Gearbox: 4-750 RPM
Rated Speed W/ Gearbox:3-630 RPM
Rated Power:11.3W
Gear type:Planetary gearbox
Motor type:Brushed
Efficiency: 75%
Axial play:0.05-0.3
Noise:30cm.40-50db

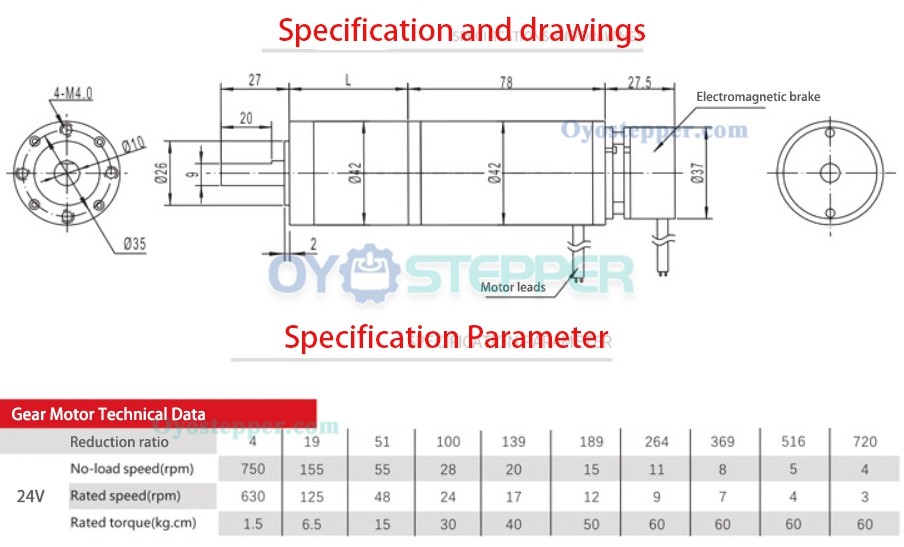

Physical Specification:
Motor Size:42*78 mm
Diameter:42mm
Length: 78mm+Planetary gearbox+27.5mm brake
Shaft Type:D-cut
Shaft Diameter: Φ10mm
Shaft Length: 25mm
D-cut Diameter:9mm
D-cut Length: 20mm
Weight:50g;

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm
Next: 2Pcs 6V 12V Micro Brush Geared DC Motor with Gear Reducer 2.4 kg.cm 12-500 RPM
Physical Specification
Shaft Diameter(mm) 10
Shaft Length(mm) 25
Weight(g) 50
Body Length(mm) 78+Gearbox+27.5
Frame Size(mm) Φ42
Gearbox Type Planetary gearbox
Gear Ratio 4:1 / 19:1 / 51:1 / 100:1 / 139:1 / 189:1 / 264:1 / 369:1 / 516:1 / 720:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Electrical Specification
Rated Power(W) 11.3
Rated Voltage(V) 24
Rated Torque(kg.cm) 1.5-60
Rated Current (A) 0.79
Rated Speed(rpm) 3-630
