12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM

12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM
NO.:TEC56100
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$69.99

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $66.49 5%
10 $65.09 7%
50 $62.99 10%
100 $59.49 15%
Add To Cart

Videos


12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM



Features:
1. Small size dc brushless motor with low speed and big torque
2. Suitable to small diameter, low noise and big torque application
3. Can equip with Planetar Gear Reducer
Brushless dc motors (BLDC motors) are now a common product due to their qualities of low interference, low noise, and long life. Due to its stable performance, Brushless dc motors is paired with a high-precision planetary gearbox, which significantly increases the motor's torque and lowers its speed, making it suitable for a variety of application fields.


Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Grass cutter.

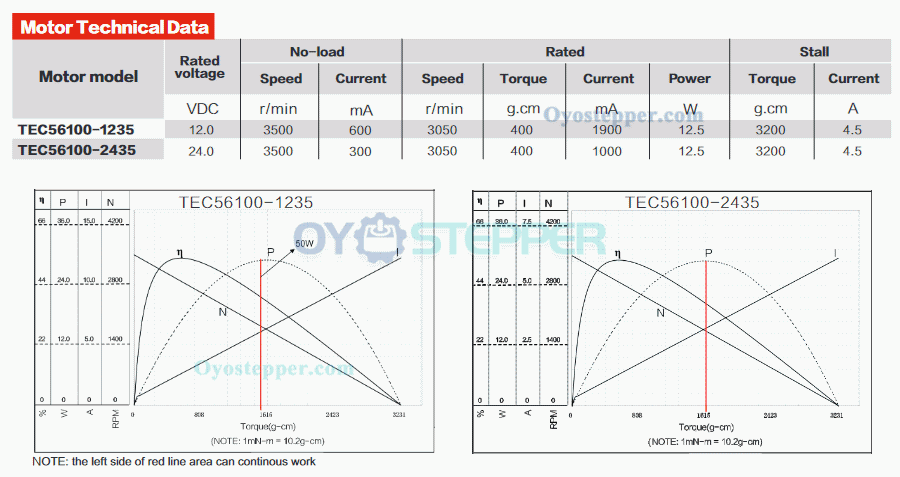

Electrical Specification:
Part Number: TEC56100
Output Power:50W
Rated Voltage:12-24V
Continuous Current(A):1500mA
Torque:2kg.cm
Speed:800-8000RPM
Efficiency: 65%
Noise:30cm.40-50db

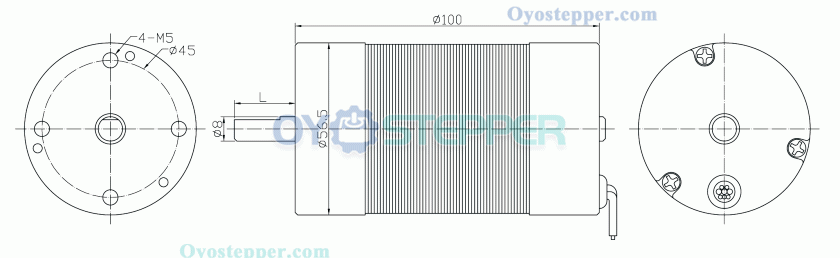

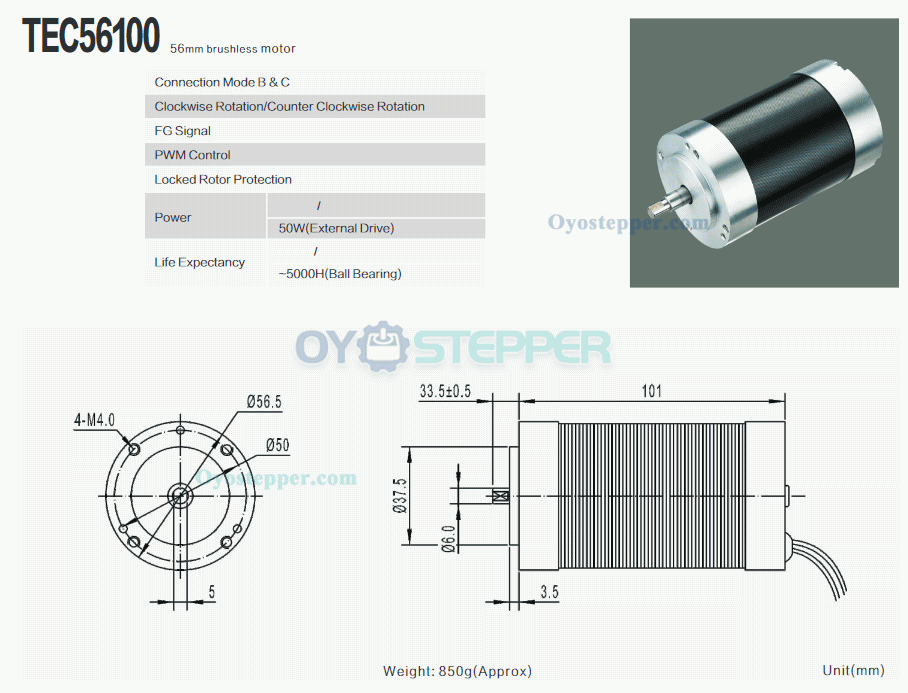

Physical Specification:
Motor Size: 56*100 mm
Diameter: 56mm
Length:100mm
Shaft diameter:6mm
Weight:850g;





12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM

12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM

12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM

Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 12V 24V Brushless DC Motor Electric BLDC DC Motor 500g.cm 21-24W 5000RPM
Next: 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm
Electrical Specification
Rated Voltage(V) 12-24V
Rated Current (A) 1.5A
Rated Power(W) 50W
Rated Torque(kg.cm) 2kg.cm
Physical Specification
Body Length(mm) 100 mm
Frame Size(mm) 56*100 mm
No. of Lead 6mm
Single Shaft/Dual Shaft Single Shaft
Weight(g) 850g
Gearbox Type Spur Gearbox
