Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2A 7.2V Lead Screw 355mm 4 Wires
Special Offer in September 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$57.86

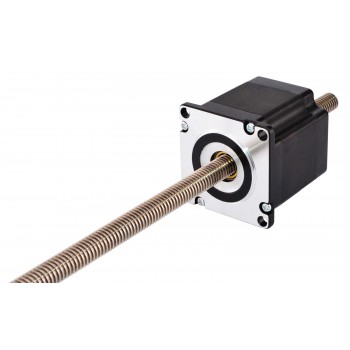

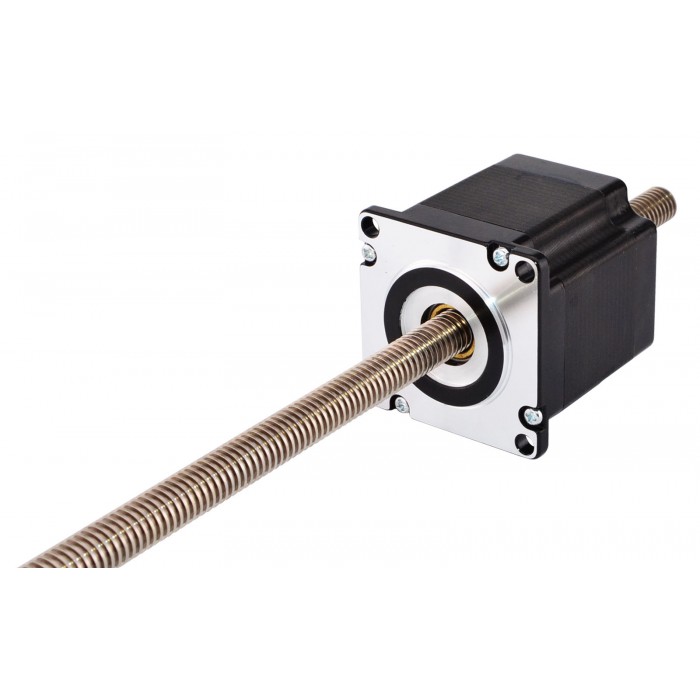

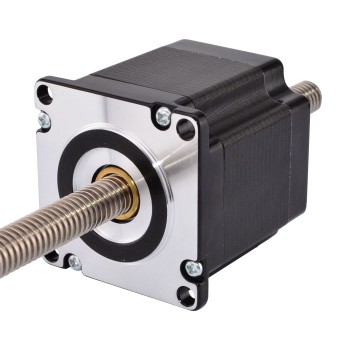

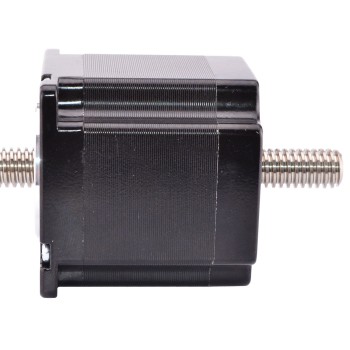

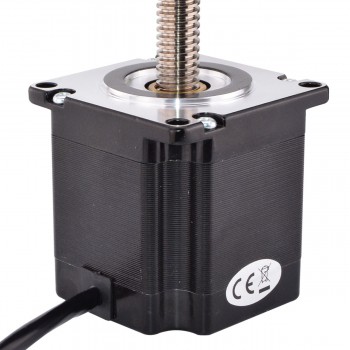

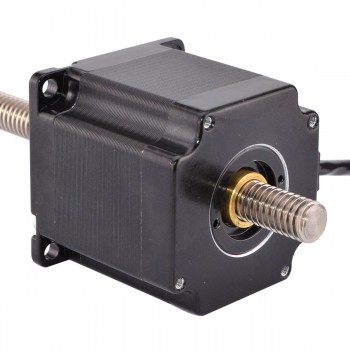

This model is economy linear stepper motor which named Nema 23 non-captive linear actuator, it was composed of 56mm 2A Nema 23 stepper motor and 355mm length Tr11x2 linear screw.
Electrical Specification
Manufacturer Part Number: 23LS22-2004N-355T
Motor Type: Bipolar Stepper
Holding Torque: 1.2Nm
Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms
Voltage: 7.2V
Inductance: 12mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 300mm（11.811"）
Lead Screw Diameter: Φ11mm（0.433"）
Lead /Step: 0.01mm(0.0003937" )
Lead/Revolution: 2mm（0.0787"）
Number of Leads: 4
Lead Length: 500mm
Weight : 650g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23LS22-2004N-355T.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 120 |
| Holding Torque (oz.in) | 170 |
| Inductance(mH) | 12 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 3.6 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Lead Screw Diameter(mm) | 11 |
| Lead Screw Length(mm) | 355 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 23 (57 x 57) |
