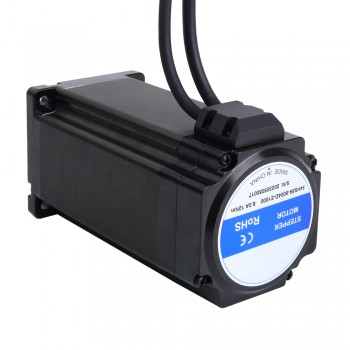

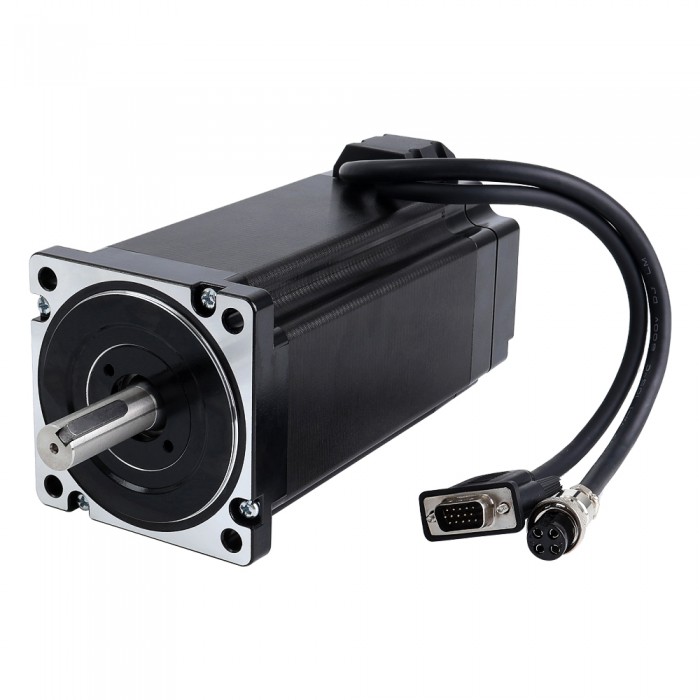

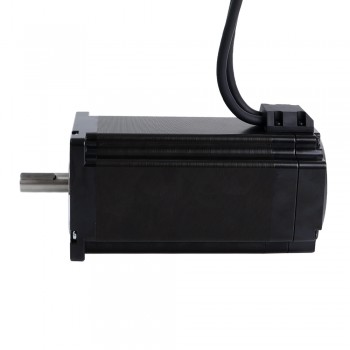

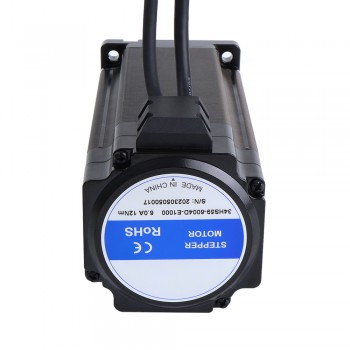

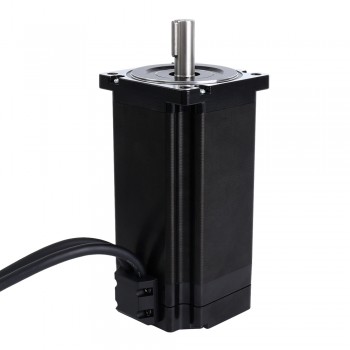

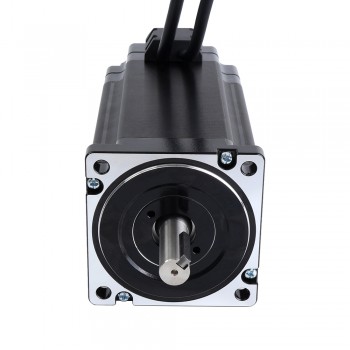

S Series Nema 34 Closed Loop Stepper Motor 1.8 Deg 12.0 Nm(1699.34oz.in) 6.0A 2 Phase with Encoder 1000PPR(4000CPR)

S Series Nema 34 Closed Loop Stepper Motor 1.8 Deg 12.0 Nm(1699.34oz.in) 6.0A 2 Phase with Encoder 1000PPR(4000CPR)
NO.:34HS59-6004D-E1000
Review: Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$74.49
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $70.77 5%
10 $69.28 7%
50 $67.04 10%
100 $64.81 13%
Add To Cart

S Series Nema 34 Closed Loop Stepper Motor 1.8 Deg 12.0 Nm(1699.34oz.in) 6.0A 2 Phase with Encoder 1000PPR(4000CPR)



Electrical Specification

Manufacturer Part Number: 34HS59-6004D-E1000

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 12.0 Nm(1699.34oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.53 ohms± 10%

Inductance: 4.8 mH ± 20%(1KHz)



Physical Specification

Frame Size: 86 x 86 mm

Body Length: 175 mm

Shaft Diameter: Φ14 mm

Shaft Length: 37 mm

Keyway Shaft Length: 25 mm

Lead Length: 300 mm

Weight: 5.5 kg



Encoder Specification

Output Circuit Type: Differential type

Encoder Type: Optical Incremental

Encoder Resolution: 1000PPR(4000CPR)

Output Signal Channels: 2 channels

Supply Voltage Min: 4V

Supply Voltage Max: 5V

Output Current: 100mA

Output High Voltage: 5V

Output Low Voltage: 4.5V

Output Frequency Max: 60kHZ



Connection



PIN 1 2 3 4
Motor A+ A- B+ B-



PIN 2 3 1 13 11 12
Encoder VCC EGND EA+ EA- EB+ EB-



Resources

Full Datasheet: 34HS59-6004D-E1000.pdf

Torque Curver: 34HS59-6004D-E1000_Torque_Curve.pdf

34HS59-6004D-E1000.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQEG Series Planetary Gearbox 10:1 for Nema 11 Stepper Motor BLDC Motor & Servo Motor Backlash 15 Arc-min
Next: S Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2.0 Nm/283.22oz.in 5.0A 2 Phase with Optical Incremental Encoder
Electrical Specification
Holding Torque (Ncm) 1200
Holding Torque (oz.in) 1699.34
Inductance(mH) 7.9
Phase Resistance(ohm) 0.7
Rated Current (A) 6.0
Encoder Type Optical Incremental
Output Circuit Type Differential type
Encoder Resolution 1000PPR
Output Signal Channels 2
Physical Specification
Body Length(mm) 169
Frame Size(mm) Nema 34 (86 x 86)
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Product Series S Series
IP Rating 40
