Nema 14 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 2.438mm/0.096" Lead Screw 150mm

Nema 14 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 2.438mm/0.096" Lead Screw 150mm
NO.:14LS13-0574J-150E
Post a review
Our Price:$71.16
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $67.60 5%
10 $66.18 7%
50 $64.04 10%
100 $61.91 13%
Add To Cart

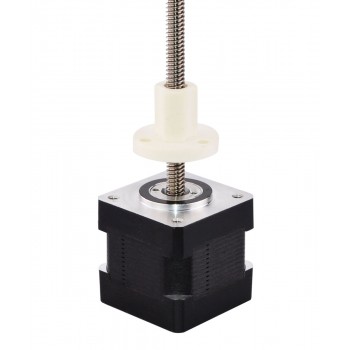

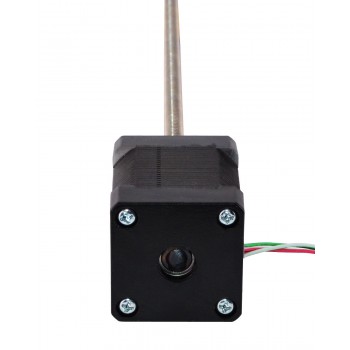

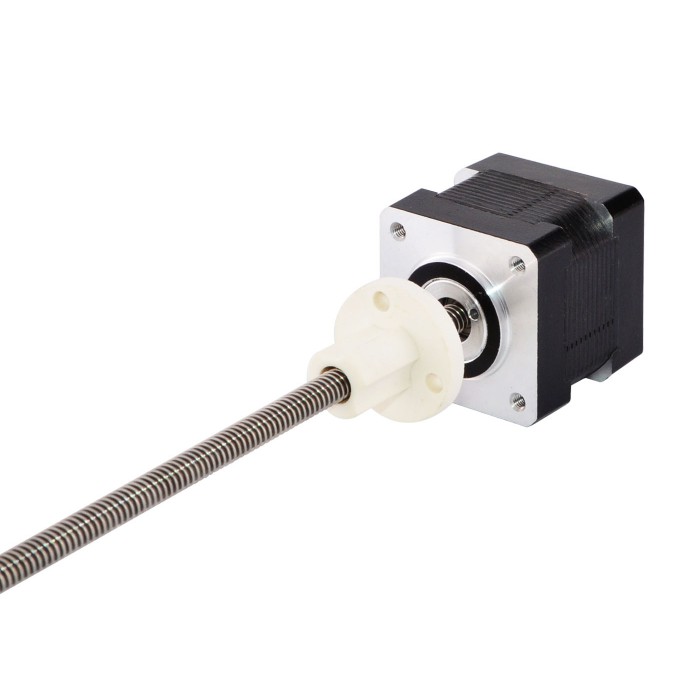

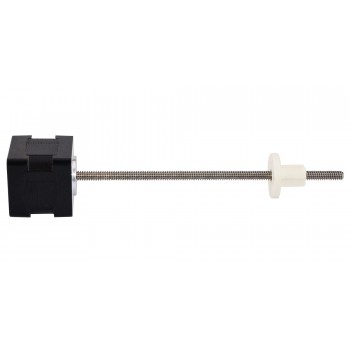

This model is almost exactly same as Haydon Kerk 35000 series size 14 external stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 2.438mm (0.096") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS13-0574J-150E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 140N (300pps)
  • Rated Current/phase: 0.57A
  • Phase Resistance: 8.8ohms
  • Voltage: 5V
  • Inductance: 13mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 35mm
  • Lead Screw Length: 150mm(5.9055")

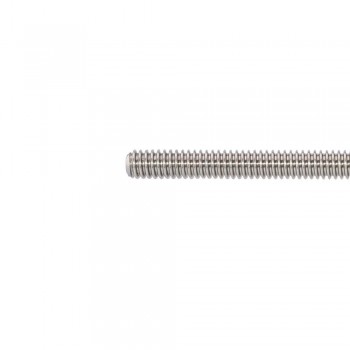

  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048" )
  • Lead Travel/Revolution: 2.438mm(0.096")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 162g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 1.27mm/0.05" Lead Screw 150mm
Next: Nema 14 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 4.877mm/0.192" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 13
Minimal Thrust(N) 140
Motor Type External
Phase Resistance(ohm) 8.8
Rated Current (A) 0.57
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34.5
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.4384
Linear Travel / Step(mm) 0.012192
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
