Nema 14 External 35mm Stack 0.57A Lead 4.877mm/0.192" Length 150mm

NO.:SKU:14LS13-0574Q-150E
Review: Post a review
Latest price:$74.49
Buy It Now:$57.30
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$55.51 $53.72 $51.93 $50.14
Add To Cart

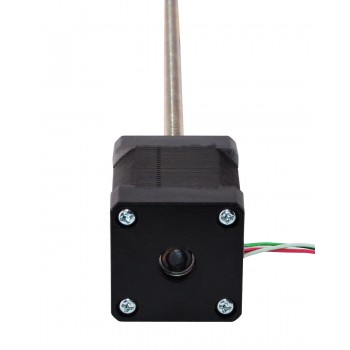

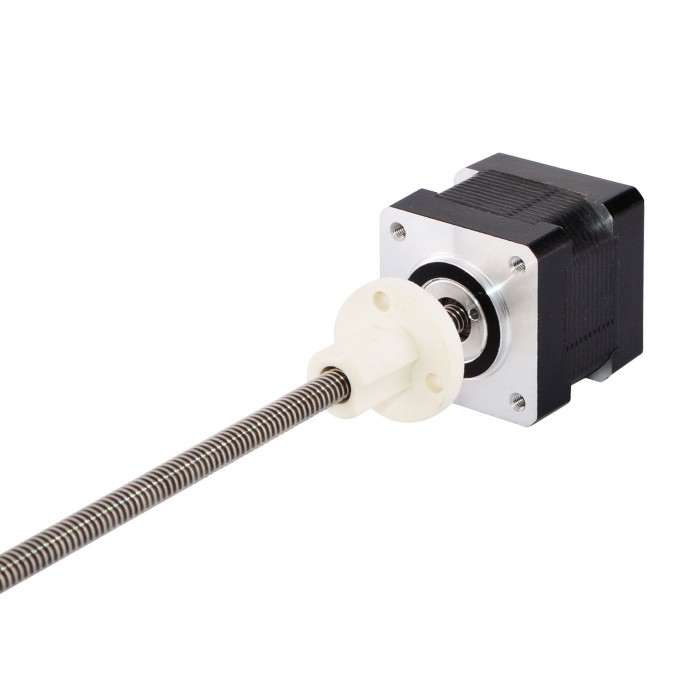

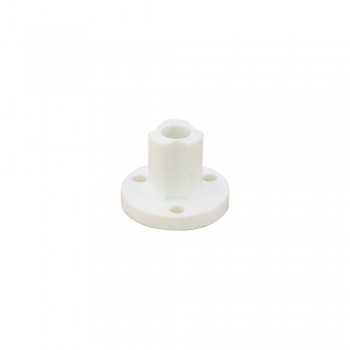

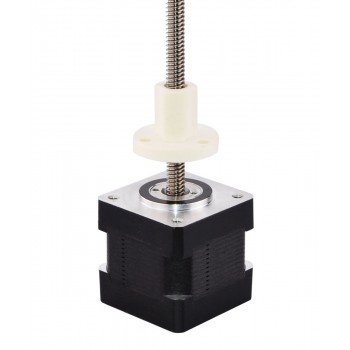

This model is almost exactly same as Haydon Kerk 35000 series size 14 external stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 4.877mm (0.192") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS13-0574Q-150E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 70N (300pps)
  • Rated Current/phase: 0.57A
  • Phase Resistance: 8.8ohms
  • Voltage: 5V
  • Inductance: 13mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 35mm
  • Lead Screw Length: 150mm(5.9055")

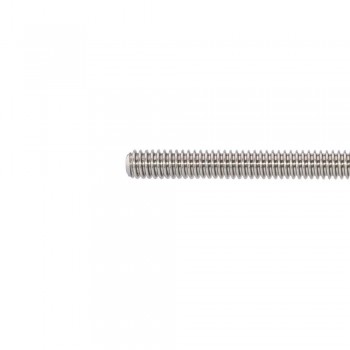

  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.024384mm(0.00096" )
  • Lead Travel/Revolution: 4.877mm(0.192")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 162g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 14 External 35mm Stack 0.57A Lead 2.438mm/0.096" Length 150mm
Next: Nema 14 Non-captive 48mm Stack 0.91A Lead 1.27mm/0.05" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 13
Minimal Thrust(N) 70
Motor Type External
Phase Resistance(ohm) 8.8
Rated Current (A) 0.57
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34.5
Frame Size(mm) 35x35
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 150
Lead Revolution(mm) 4.8768
Linear Travel / Step(mm) 0.024384
No. of Lead 4
Lead Length(mm) 300
