Nema 14 External Precision Stepper Motor Linear Actuator 48mm Stack 0.91A 2.33V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm

Nema 14 External Precision Stepper Motor Linear Actuator 48mm Stack 0.91A 2.33V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm
NO.:14LS17-0914Q-250E
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$96.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $91.49 5%
10 $89.56 7%
50 $86.67 10%
100 $83.78 13%
Add To Cart

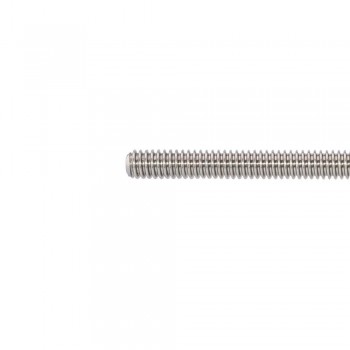

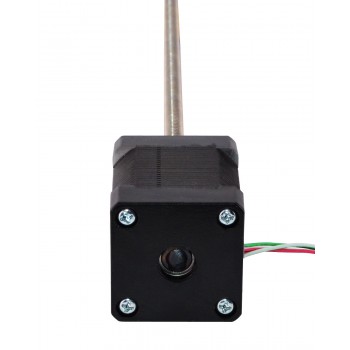

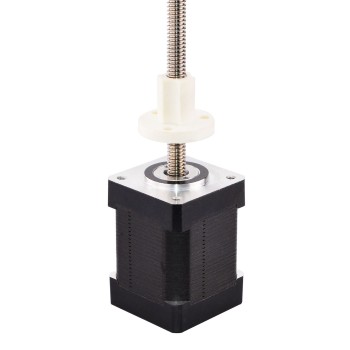

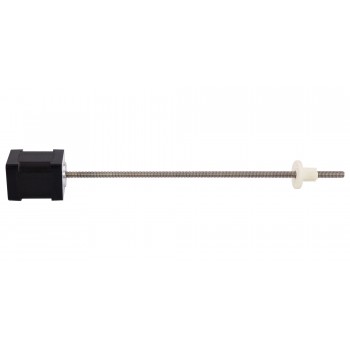

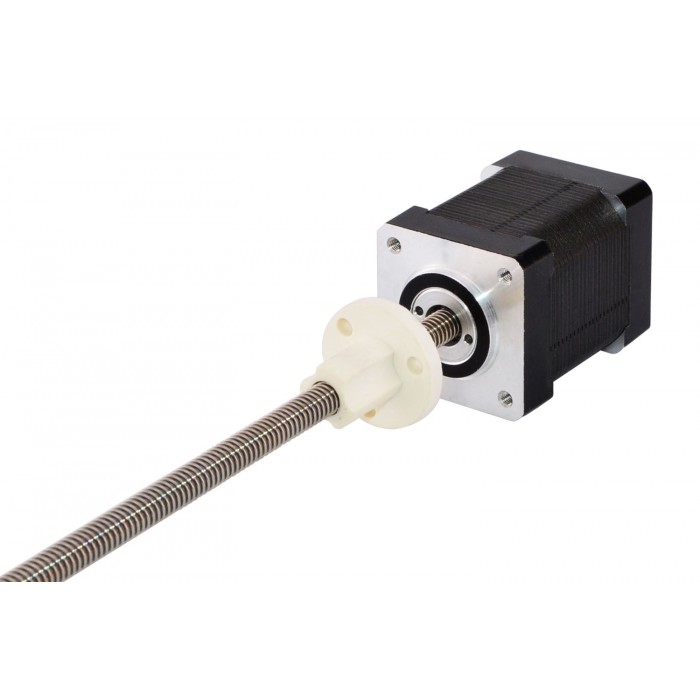

This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack external stepper motor linear actuator. The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it has integrated with a 5.54mm (0.2181") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 4.877mm (0.192") per revolution.

Electrical Specification

Manufacturer Part Number: 14LS17-0914Q-250E

Motor Type: External Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 98N (300pps)

Rated Current/phase: 0.91A

Phase Resistance: 5.5ohms

Voltage: 5V

Inductance: 7.63mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 48mm

Lead Screw Length: 250mm(9.8425")

Lead Screw Diameter: Φ5.54mm(0.2181")

Lead/Step: 0.024384mm(0.00096" )

Lead Travel/Revolution: 4.877mm(0.192")

Number of Leads: 4

Lead Length: 300mm

Weight : 240g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 14LS17-0914Q-250E.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 External Precision Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 2.4384mm/0.096" Lead Screw 250mm
Next: Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 0.794mm/0.031" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 7.63
Minimal Thrust(N) 98
Motor Type External
Phase Resistance(ohm) 5.5
Rated Current (A) 0.91
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Revolution(mm) 4.8768
Linear Travel / Step(mm) 0.024384
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
