Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 0.794mm/0.031" Lead Screw 150mm

NO.:17LS13-1504P-150N
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$76.75

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$72.91	5%
10	$71.38	7%
50	$69.08	10%
100	$66.77	13%

Description Specification Custom Options Review

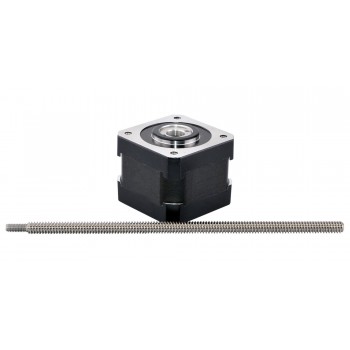

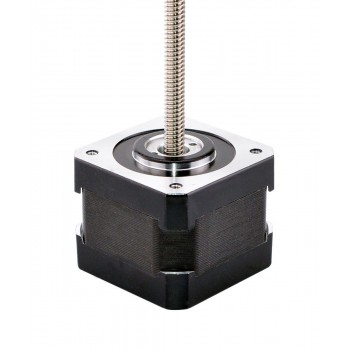

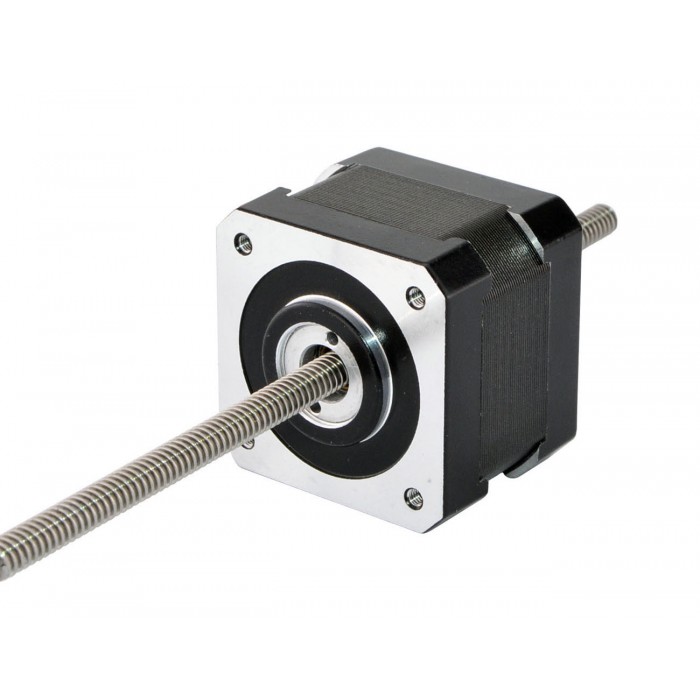

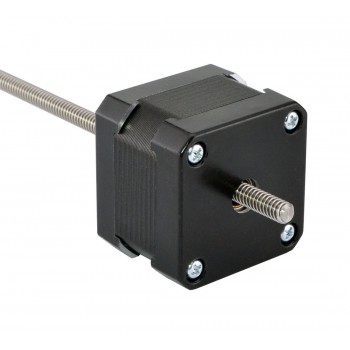

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 1.5A Nema 17 stepper motor, and it works with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw, the linear travel is 0.794mm(0.03125") per revolution.

Electrical Specification

Manufacturer Part Number: 17LS13-1504P-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 434N (300pps)
Rated Current/phase: 1.5A
Phase Resistance: 1.56ohms
Voltage: 2.33V
Inductance: 1.9mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm (0.25")
Lead/Step: 0.00396875mm(0.00015625" )
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight : 241g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Resources

Full Datasheet: 17LS13-1504P-150N.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 External Precision Stepper Motor Linear Actuator 48mm Stack 0.91A 2.33V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm
Next: Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution1.27mm/0.05" Lead Screw 150mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	1.9
Minimal Thrust(N)	434
Motor Type	Non-Captive
Phase Resistance(ohm)	1.56
Rated Current (A)	1.5
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	33.8
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	150
Lead Revolution(mm)	0.79375
Linear Travel / Step(mm)	0.00396875
No. of Lead	4
Lead Length(mm)	300
Frame Size(mm)	Nema 17 (42 x 42)
