Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 2.4384mm/0.096" Lead Screw 150mm

Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 2.4384mm/0.096" Lead Screw 150mm
NO.:17LS13-1504J-150N
Post a review
Our Price:$76.75
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $72.91 5%
10 $71.38 7%
50 $69.08 10%
100 $66.77 13%
Add To Cart

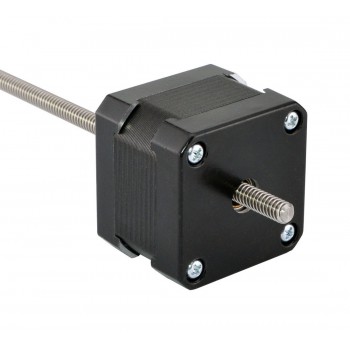

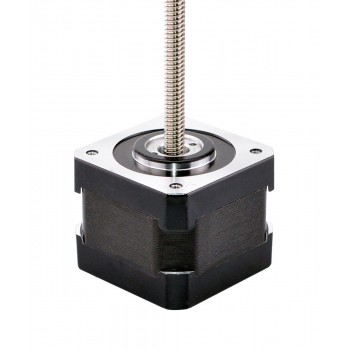

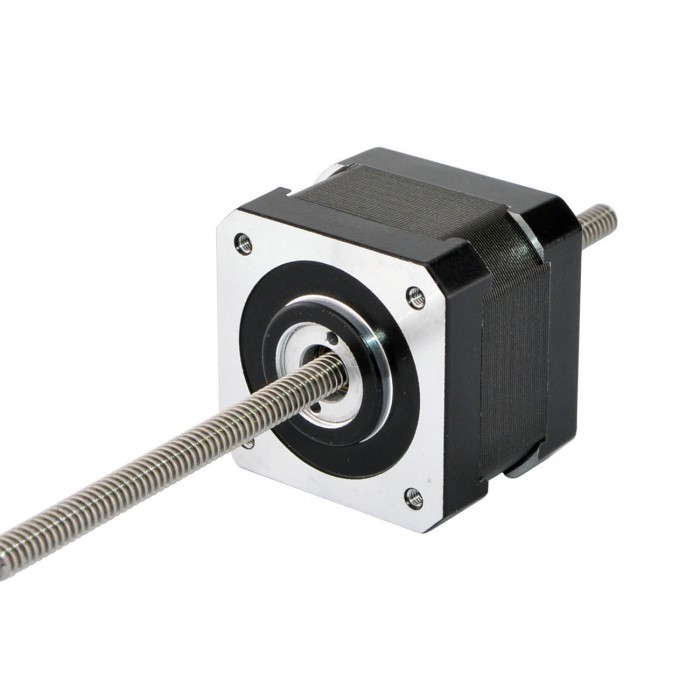

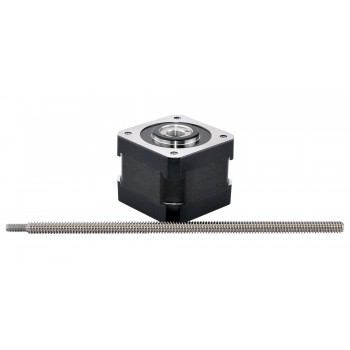

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 1.5A Nema 17 stepper motor, and it works with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw, the linear travel is 2.348mm (0.096") per revolution.

Electrical Specification

  • Manufacturer Part Number: 17LS13-1504J-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 196N (300pps)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 1.56ohms
  • Voltage: 2.33V
  • Inductance: 1.9mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048" )
  • Lead Travel/Revolution: 2.438mm(0.096")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 241g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution1.27mm/0.05" Lead Screw 150mm
Next: Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 4.877mm/0.192" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.9
Minimal Thrust(N) 196
Motor Type Non-Captive
Phase Resistance(ohm) 1.56
Rated Current (A) 1.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 33.8
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.4384
Linear Travel / Step(mm) 0.012192
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 17 (42 x 42)
