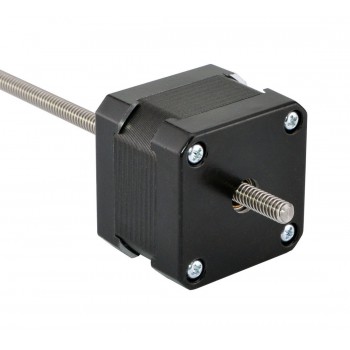

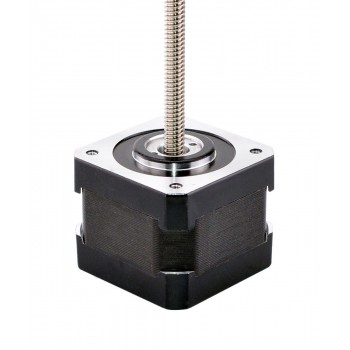

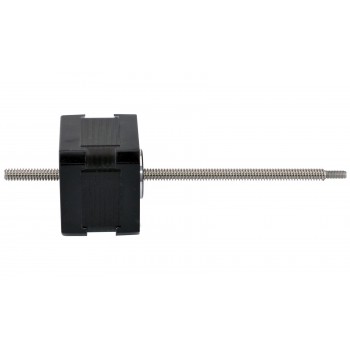

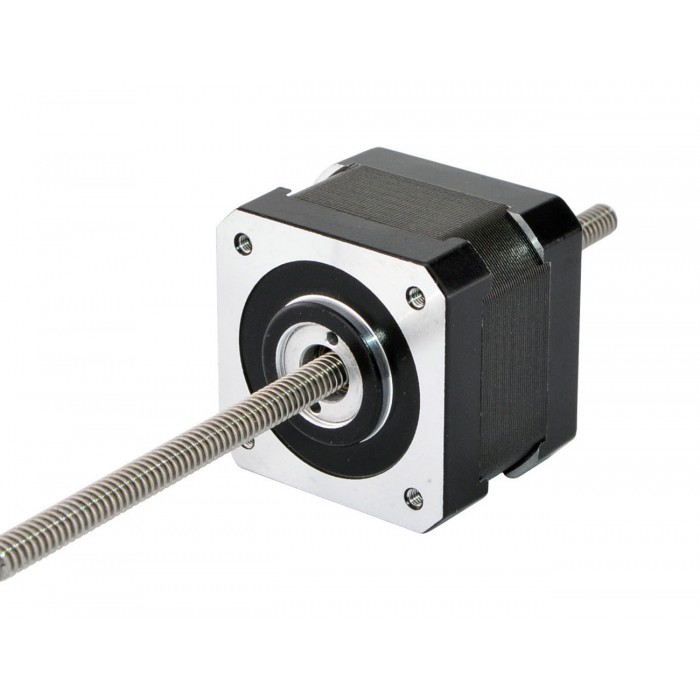

Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 4.877mm/0.192" Lead Screw 150mm

Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 4.877mm/0.192" Lead Screw 150mm
NO.:17LS13-1504Q-150N
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$76.75
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $72.91 5%
10 $71.38 7%
50 $69.08 10%
100 $66.77 13%
Add To Cart

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 1.5A Nema 17 stepper motor, and it works with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw, the linear travel is 4.877mm (0.192") per revolution.

Electrical Specification

Manufacturer Part Number: 17LS13-1504Q-150N

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 105N (300pps)

Rated Current/phase: 1.5A

Phase Resistance: 1.56ohms

Voltage: 2.33V

Inductance: 1.9mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 34mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ5.54mm(0.2181")

Lead/Step: 0.024384mm(0.00096" )

Lead Travel/Revolution: 4.877mm(0.192")

Number of Leads: 4

Lead Length: 300mm

Weight : 241g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 17LS13-1504Q-150N.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 2.4384mm/0.096" Lead Screw 150mm
Next: Nema 17 Non-captive Precision Stepper Motor Bipolar 1.8 Deg 5V 0.7A Lead Revolution 0.794mm/0.031" Lead Screw 150mm
