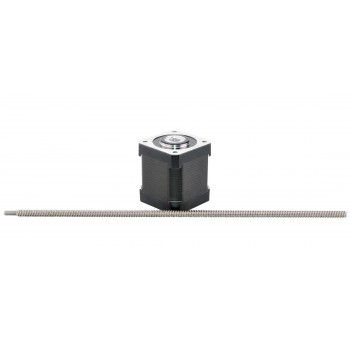

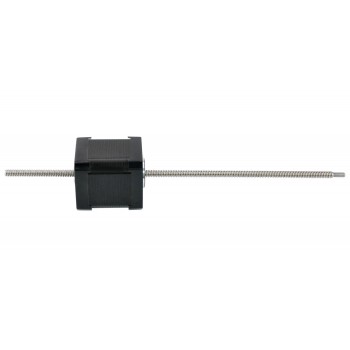

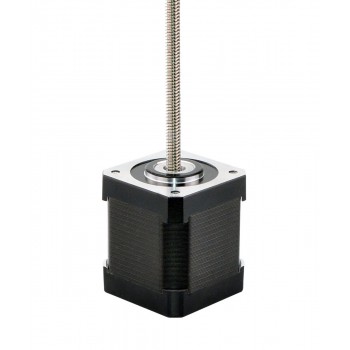

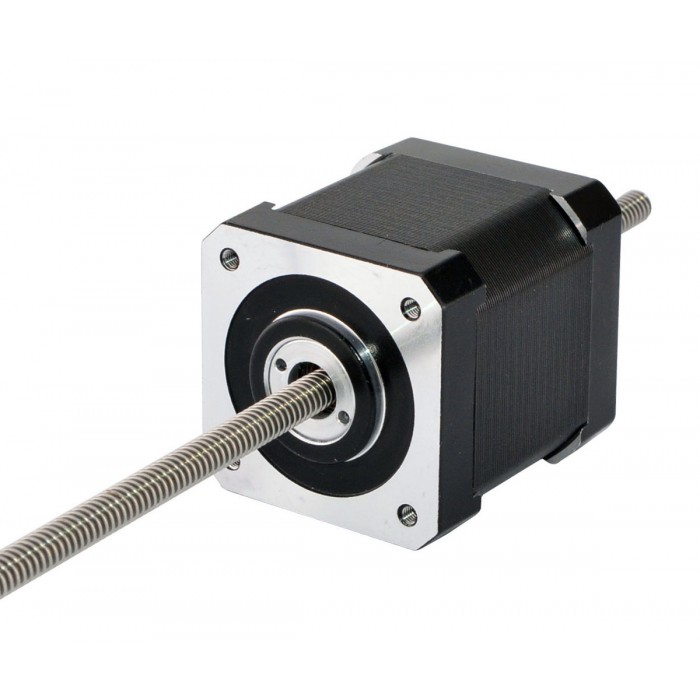

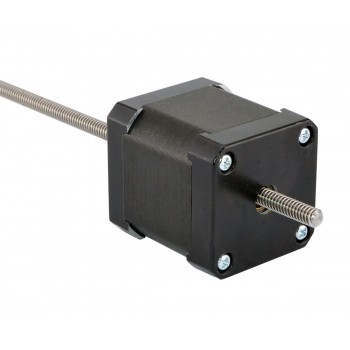

Nema 17 Non-captive Precision Linear Motor Actuator Bipolar 1.8 Deg 1.3A 5V Lead Screw 250mm
The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it works with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw, the linear travel is 1.27mm (0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS19-13049-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 308N (300pps)
Rated Current/phase: 1.3A
Phase Resistance: 3.96ohms
Voltage: 5V
Inductance: 6.66mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00635(0.00025" )
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Lead Length: 300mm
Weight : 352g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS19-13049-250N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6.66 |
| Minimal Thrust(N) | 308 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 3.96 |
| Rated Current (A) | 1.3 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 47.75 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 1.27 |
| Linear Travel / Step(mm) | 0.00635 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
