5PCS Nema 17 Stepper Motor Bipolar 1.8 deg 26Ncm (36.8oz.in) 0.4A 12V 42x42x34mm 4 Wires

NO.:SKU:5-17HS13-0404S
Review: Post a review
Latest price:$48.41
Buy It Now:$37.24
Quantity:- +

Add To Cart

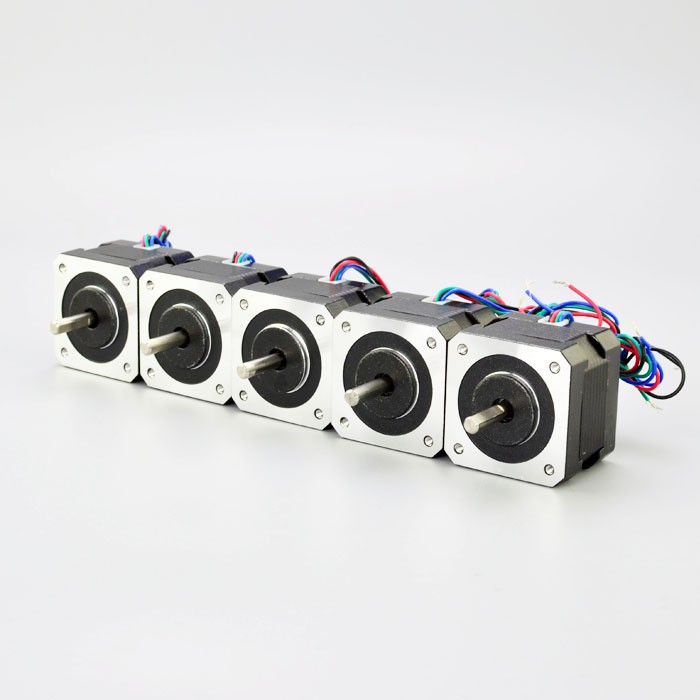

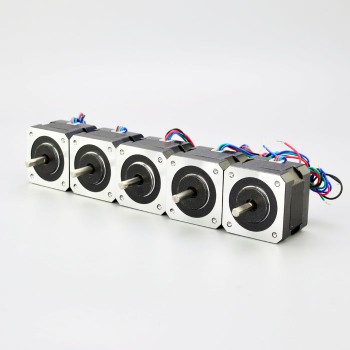

This package including: 5 x 17HS13-0404S

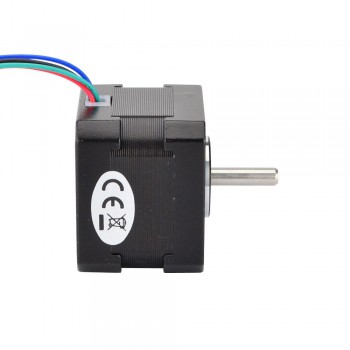

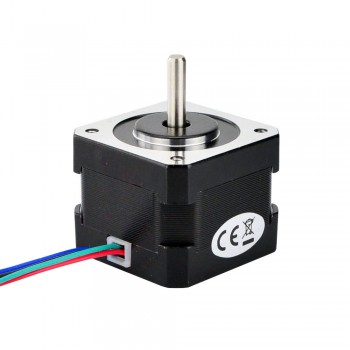

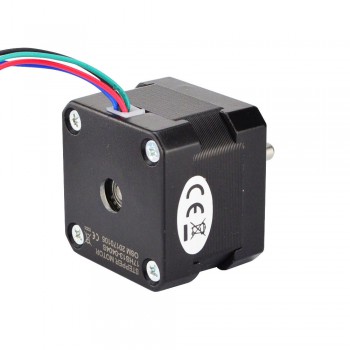

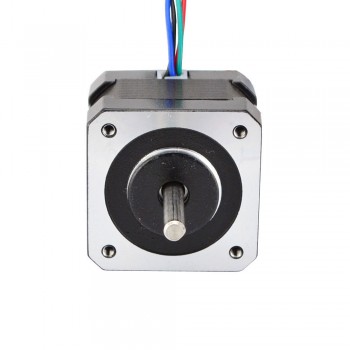

This bipolar Nema 17 stepper motor is one of the most popular model, it with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 26Ncm(36.8oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 37mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 1250g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 1.8 deg 26Ncm (36.8oz.in) 0.4A 12V 42x42x34mm 4 Wires(17HS13-0404S)
Next: Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 deg 26Ncm (36.8oz.in) 0.4A 12V 42x34mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.8
Rated Current (A) 0.4
Phase Resistance(ohm) 30
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

jeremias_love – 27 Mar 2018

Einwandfrei, schnellund sicher verpackt, wie beschrieben, super!

Steven Schnelz – 21 Jul 2017

These are now my standard stepper motor. At $11.50 a piece, these are well priced. They do not have removable cables but I have found that to be a good thing. Using motors with detachable cables, I have had the cables come loose from the motor during operation as the plugs do not seem that secure. The concern would be a cable failure could kill the motor but I have hundreds and hundreds of operation hours (3D printer) with no problems. A little strain relief goes a long way. Running at maximum current from a 4988 driver these barely get warm and I have had no failures or DOA issues yet over about 20 units. They provide plenty of power for X,Y, Z and extruder on 8x8x8" 3d printers. I am building a 16x16x16 and we will see if they are adequate to sling that bed around. They come well packed and are available with same day shipping when you just gotta have it.

Andrew C. – 28 Feb 2017

quality shipping, they put a lot of effort into the packaging to insure its safe travel. Super impressed. If i dont update with a complaint. They are working just fine

FancyChancie – 03 Oct 2016

These work great! My only issue is that the wiring is connected to the motor INSIDE the motor, there is no external connector, so it can be tricky mounting & wiring everything in 1 shot, and I am worried about the wear on the wires at he motors due to repetitive movement. Eventually this is going to degrade the wires beyond use and I will have to replace the motors.

philosiraptor117 – 06 Sep 2016

holy crap these are dead silent. these are like a thieve in the night, the moving air in my house is louder than these, oh and their also stupid accurate, running them on my 3d printer with vibro isolators and they are sublime!
