36V BLDC Motor 4000RPM 0.44Nm 184W 7.3A Ф57x109mm 57BLR Brushless DC Motor

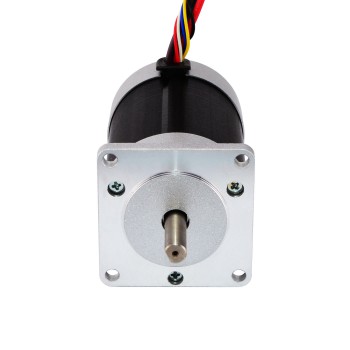

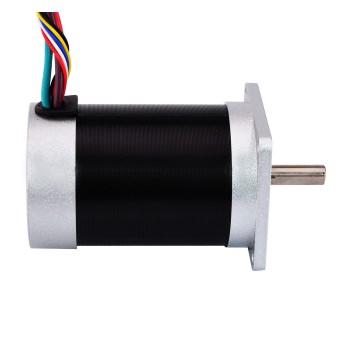

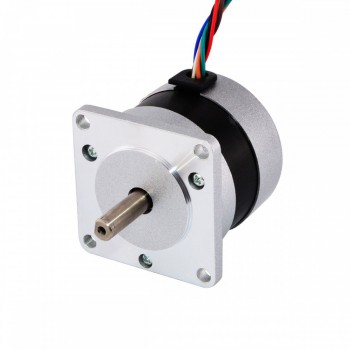

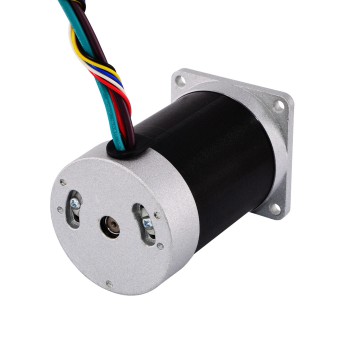

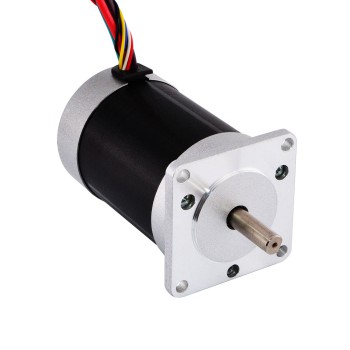

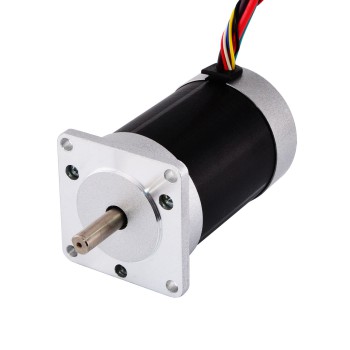

This 57BLR110-36-01 is a 36V, 3-phase, 4-pole BLDC motor that delivers 184W at 4000 RPM and 0.44 N·m torque in a Φ57×109.1 mm body with a Φ8×25 mm D-cut shaft and NMB C3 ball bearings.
Electrical Specification
Manufacturer Part Number: 57BLR110-36-01
Phase: 3
Poles: 4
Rated Voltage: 36V
Rated Speed: 4000±10%RPM
Rated Torque: 0.44Nm(62.31oz.in)
Rated Current: 7.3±10%A
Rated Power: 184W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ57mm
Body Length: 109.1mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.25kg
Connection
|
U |
V |
W |
+5V |
GND |
A |
B |
C |
|
ORG |
GRN |
BRW |
RED |
BLK |
YEL |
WHT |
BLU |
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 7.3 |
| Rated Power(W) | 184 |
| Rated Speed(rpm) | 4000±10% |
| Rated Torque(Nm) | 0.44 |
| Rated Torque(oz.in) | 62.31 |
| Rated Voltage(V) | 36 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Flange Size(mm) | Ф57 |
| Body Length(mm) | 109.1 |
| Physical Specification | |
| Weight(g) | 1250 |
