Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 44Ncm (62.3oz.in) 1.68A 2.8V 42x48mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$14.30

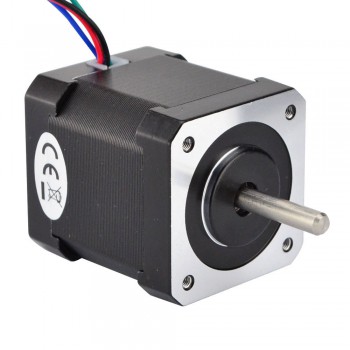

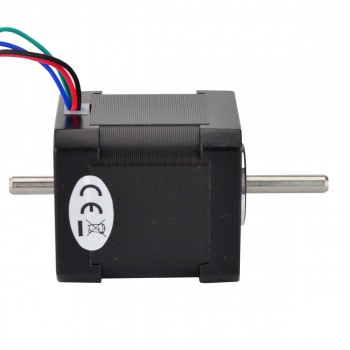

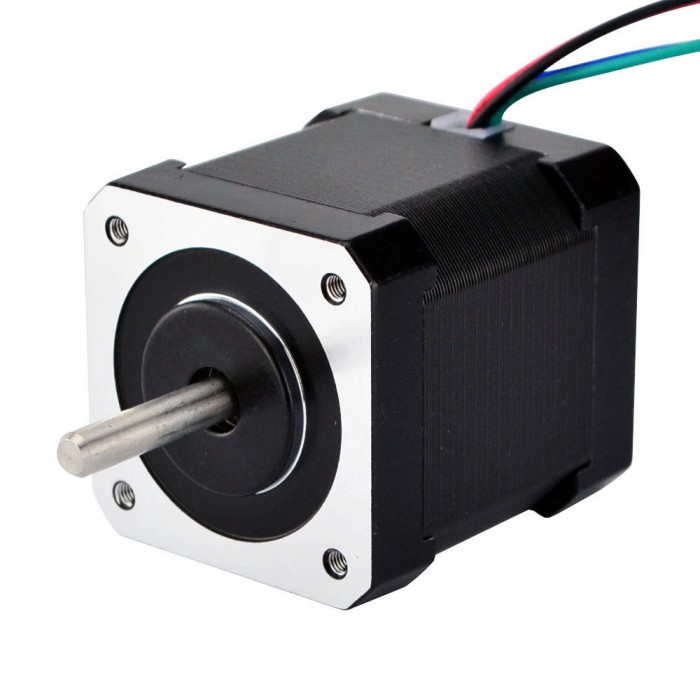

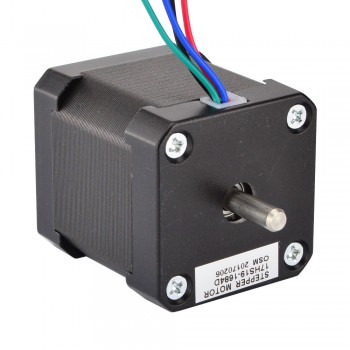

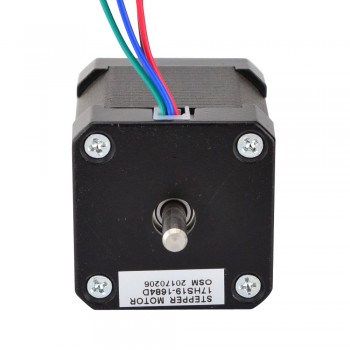

This bipolar NEMA 17 stepper motor features a 1.8° step angle, compact 42×42×48 mm dimensions, 4‑wire configuration with 1.68 A per phase, 44 N·cm (62.3 oz·in) holding torque, and includes a rear shaft.
Electrical Specification
Manufacturer Part Number: 17HS19-1684D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Voltage: 2.8V
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Rear Shaft Length: 13mm
Number of Leads: 4
Lead Length: 500mm
Weight: 390g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.3 |
| Inductance(mH) | 2.8 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 400 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
