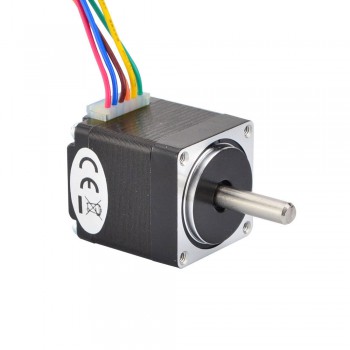

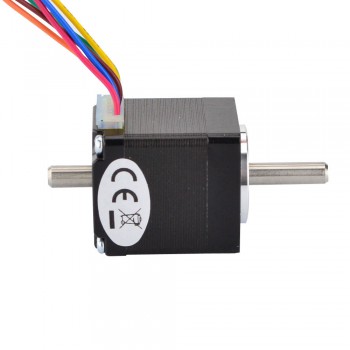

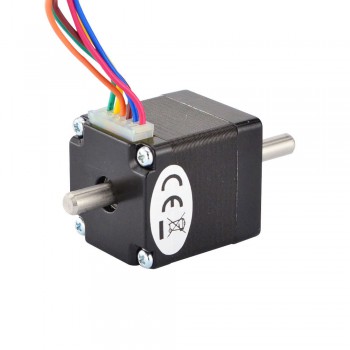

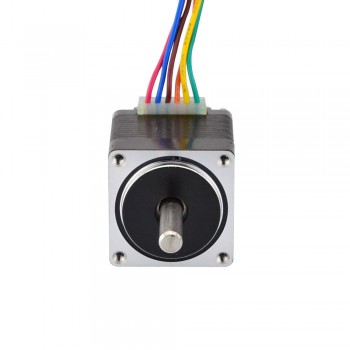

Dual Shaft Nema 11 Stepper Motor Unipolar 1.8 Deg 4.3Ncm (6.1oz.in) 0.95A 2.7V 28x31mm 6 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$15.41
Dual Shaft Nema 11 Stepper Motor Unipolar 1.8 deg 4.3Ncm (6.1oz.in) 0.95A 2.7V 28x31mm 6 Wires
This unipolar stepper motor has a 1.8° step angle in a 28 × 28 × 31.5 mm body, uses a 6-wire lead configuration, draws 0.95 A per phase at 2.66 V, delivers 4.3 N·cm (6.1 oz·in) holding torque, and includes a 10 mm rear shaft for mounting an encoder.
Electrical Specification

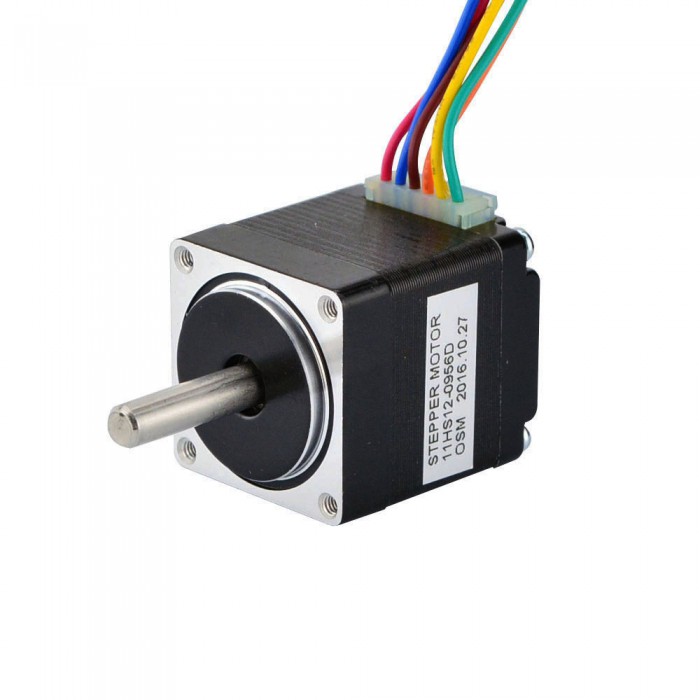

Manufacturer Part Number: 11HS12-0956D
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 4.3Ncm(6.1oz.in)
Rated Current/phase: 0.95A
Voltage: 2.66V
Phase Resistance: 2.8ohms
Inductance: 1mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 31.5mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
Rear Shaft Length: 10mm
Number of Leads: 6
Lead Length: 300mm
Weight: 110g
Connection
| A+ | O+ | A- | B+ | O- | B- |
| RED | BLK | YEL | BLU | ORG | GRN |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 4.3 |
| Holding Torque (oz.in) | 6.1 |
| Inductance(mH) | 1 |
| Phase Resistance(ohm) | 2.8 |
| Rated Current (A) | 0.95 |
| Step Angle(°) | 1.8 |
| Motor Specification | |
| Body Length(mm) | 31.5 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 6 |
| Lead Length(mm) | 300 |
| Weight(g) | 110 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
