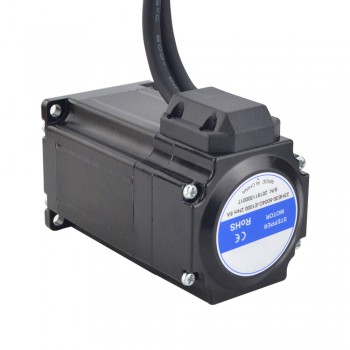

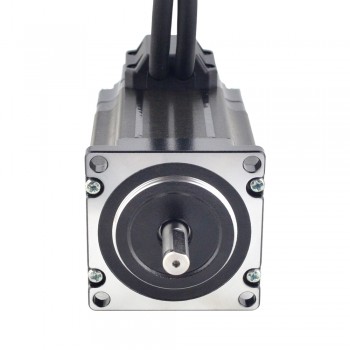

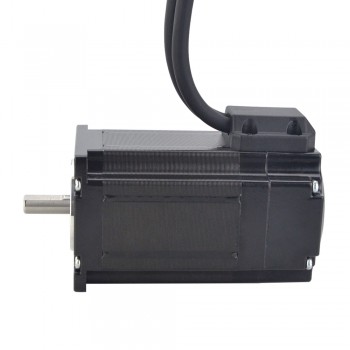

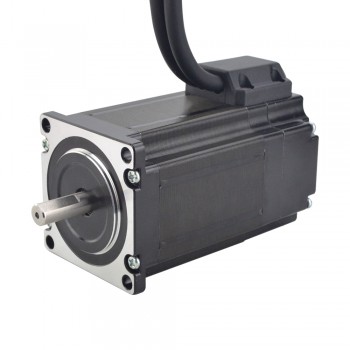

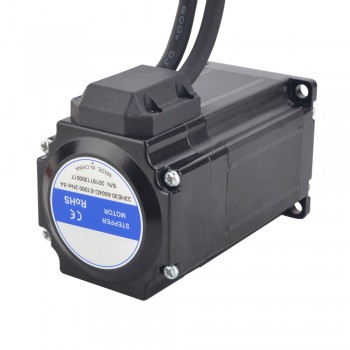

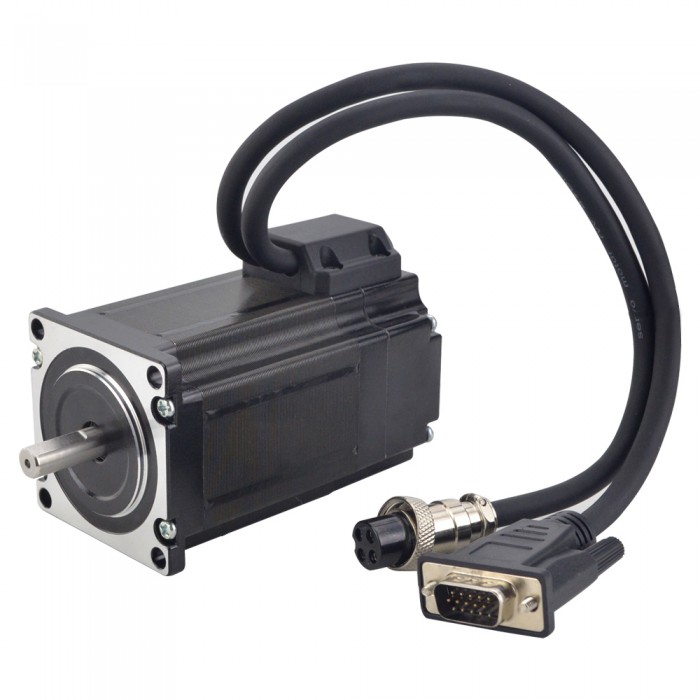

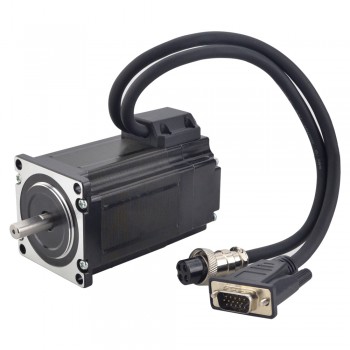

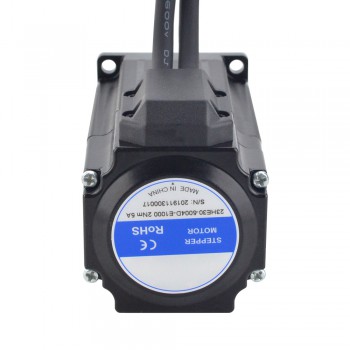

Nema 23 Closed Loop Stepper Motor E Series 2.0 Nm/283.28oz.in Encoder 1000CPR

NO.:23HE30-5004D-E1000
Review: Post a review
China National Day 2020 Special Offer:
  • 5% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid:October 1st, 2020 - October 8th, 2020
  • Note:Delayed Delivery, See Details...
  • See details
Latest price:$44.24
Buy It Now:$34.03
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$33.04 $32.03 $31.03 $30.04
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 23HE30-5004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 2.0 Nm(283.28oz.in)
  • Rated Current/phase: 5.0 A
  • Phase Resistance: 0.42 ohms± 10%
  • Inductance: 1.7 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57 mm
  • Body Length: 76 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-CUT Shaft Length: 15 mm
  • Lead Length: 300 mm
  • Weight: 1.22 kg

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
WHT
GRN
BLU
BLK



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed-loop Geared Stepper L=60mm Gear Raio 51:1 Encoder 1000CPR
Next: Nema 24 Closed Loop Stepper Motor E Series 4.0 Nm/566.56oz.in Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 200
Holding Torque (oz.in) 283.28
Inductance(mH) 1.7
Lead Length(mm) 300
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.42
Rated Current (A) 5
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 55
Output Frequency ≤1MHz
Output Signal Channels 2
Rated Voltage(V) 5
Resolution(CPR) 1000
