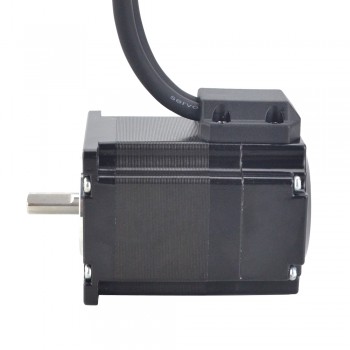

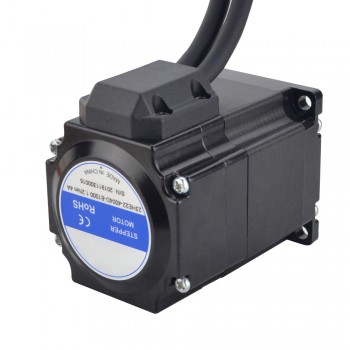

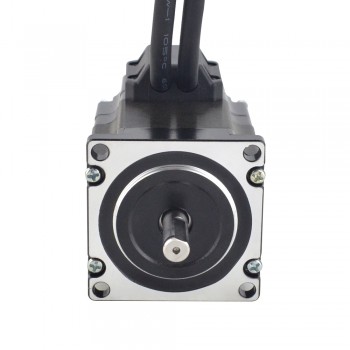

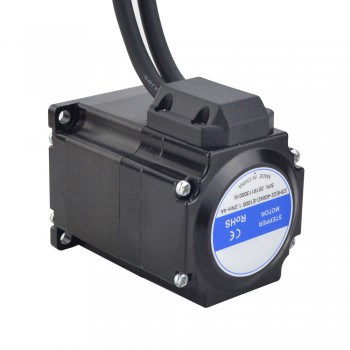

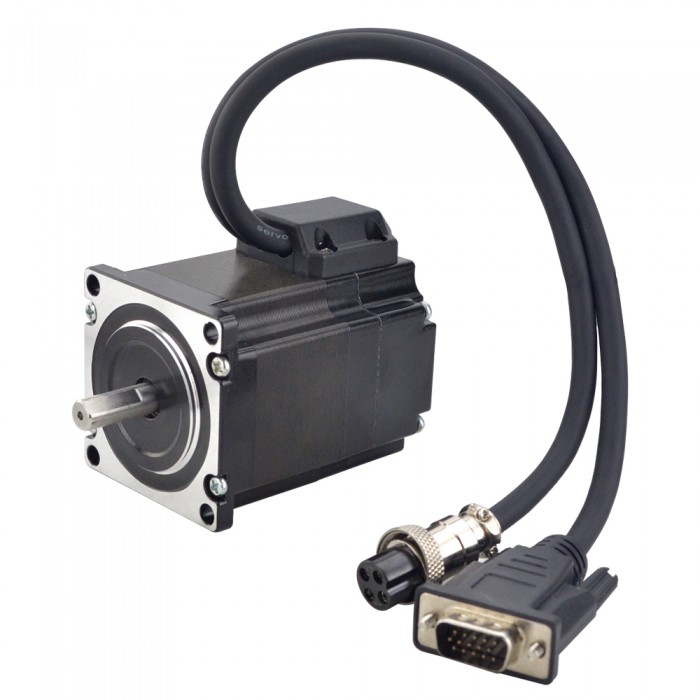

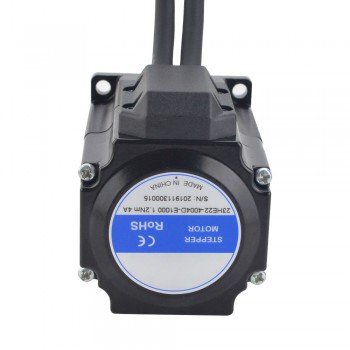

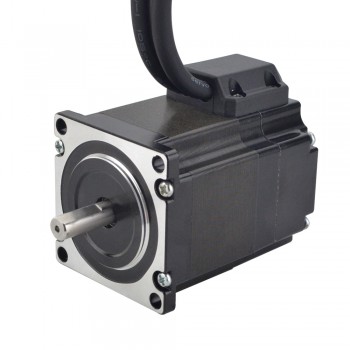

E Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2 Nm/170oz.in 4.0 A 2 Phase with Encoder 1000CPR

E Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2 Nm/170oz.in 4.0 A 2 Phase with Encoder 1000CPR
NO.:23HE22-4004D-E1000
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$29.37
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $27.90 5%
10 $27.31 7%
50 $26.43 10%
100 $25.55 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 23HE22-4004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.2 Nm(170oz.in)
  • Rated Current/phase: 4.0 A
  • Phase Resistance: 0.45 ohms± 10%
  • Inductance: 1.3 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57 mm
  • Body Length: 56 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-CUT Shaft Length: 15 mm
  • Lead Length: 300 mm
  • Weight: 0.83 kg

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
WHT
GRN
BLU
BLK



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series 2 Phase Nema 24 Closed Loop Stepper Motor 1.8 Deg 4.0 Nm with Encoder 1000CPR
Next: P Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 3Nm 5.0A 2 Phase with Electromagnetic Brake
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 1.3
Lead Length(mm) 300
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.45
Rated Current (A) 4
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 55
Output Frequency ≤1MHz
Rated Voltage(V) 5
Resolution(CPR) 1000
Output Signal Channels 2 Channels
