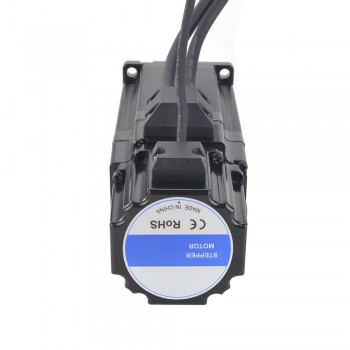

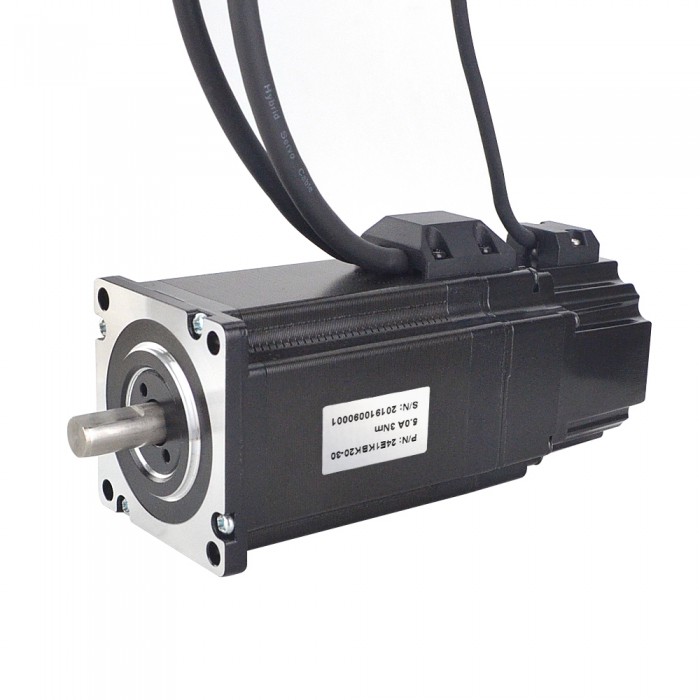

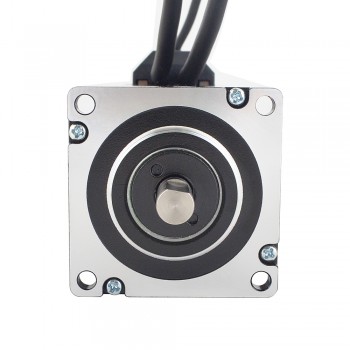

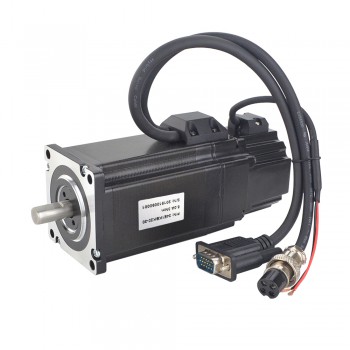

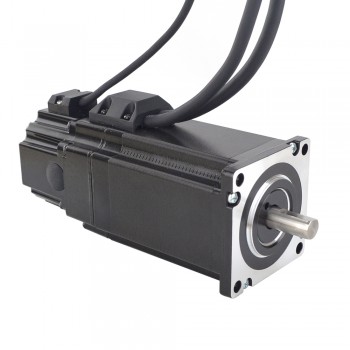

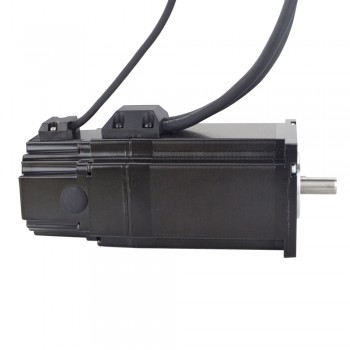

P Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 3Nm 5.0A 2 Phase with Electromagnetic Brake

NO.:24E1KBK20-30
Post a review

Special Offer in December 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till December 7th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$136.54

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$129.71	5%
5	$126.98	7%
10	$122.89	10%
50	$118.79	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 24E1KBK20-30
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 3 Nm(424.92 oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.45 ohms
Inductance: 1.8 mH ± 20%(1KHz)

Physical Specification

Frame Size: 60 x 60 mm
Body Length: 85 mm
Shaft Diameter: Φ10 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 500 mm
Weight: 1.3 kg

Encode Control(1000CPR)

3--GND
2--+5VCC
13--EA-
1--EA+
12--EB-
11--EB+

Brake Connections

Red--24V+
Red--24V-
2.0Nm

Connection

A+	A-	B+	B-
White	Green	Blue	Black

Resources

Full Datasheet: 24E1KBK20-30.pdf
Torque Curve: 24E1KBK20-30 Torque Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2 Nm/170oz.in 4.0 A 2 Phase with Encoder 1000CPR
Next: Nema 24 Closed Loop Stepper Motor P Series 1.8 Deg 3Nm 2 Phase 5.0A with Encoder 1000CPR

Motor Specification
Holding Torque (Ncm)	300
Holding Torque (oz.in)	424.92
Inductance(mH)	1.8
Lead Length(mm)	500
Motor Nema Size	Nema 24
Phase Resistance(ohm)	0.45
Rated Current (A)	5
Shaft Diameter(mm)	10
Shaft Length(mm)	21
Step Angle(°)	1.8
Number Of Phase	2
Brake Specification
Driving Voltage(V)	24
Static Friction Torque(Nm)	2
Static Friction Torque(oz.in)	283.28
Encoder Specification
Resolution(CPR)	1000
Output Signal Channels	2 Channels
