Nema 11 Geared MotorBipolar L=51mm 1.8 Deg 0.71A 14Ncm with 99.05:1 Planetary Gearbox

Nema 11 Geared MotorBipolar L=51mm 1.8 Deg 0.71A 14Ncm with 99.05:1 Planetary Gearbox
NO.:11HS20-0714S-PG100
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$43.12
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.96 5%
10 $40.10 7%
50 $38.81 10%
100 $37.51 13%
Add To Cart

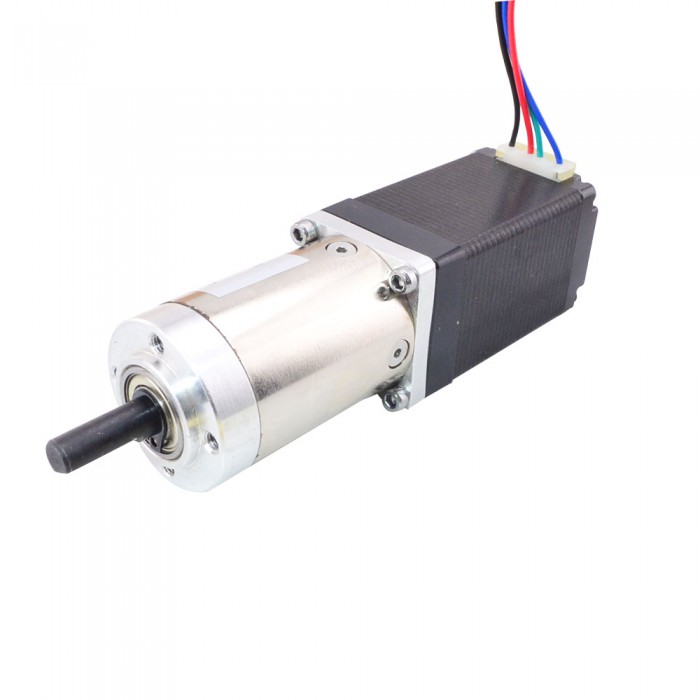

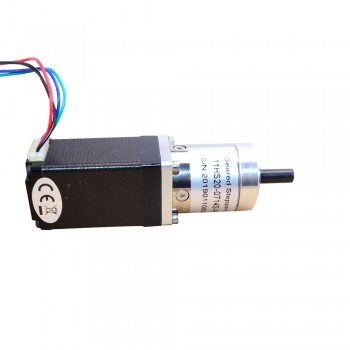

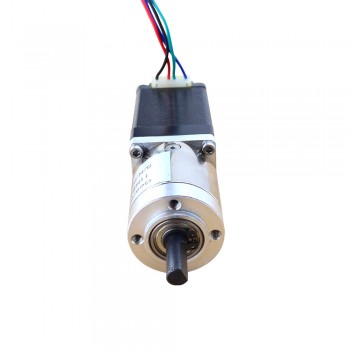

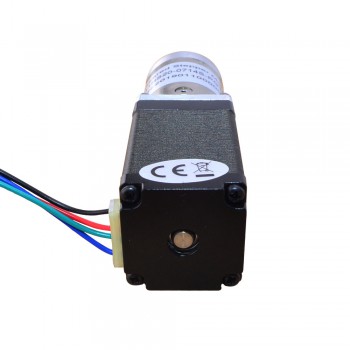

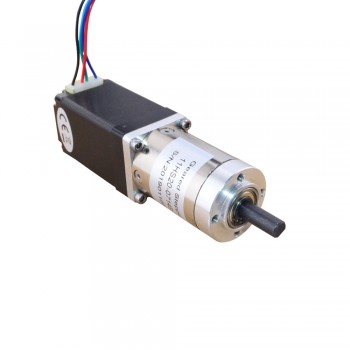

This Nema 11 stepper motor with 51mm body and 0.71A rated current, integrated a planetary gearbox of 99.05:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 11HS20-0714S-PG100

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 14Ncm(19.8oz.in)

Rated Current/phase: 0.71A

Phase Resistance: 9.0ohms

Inductance: 8.4mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 99.05:1

Efficiency: 73%

Backlash at No-load:<=1deg

Max.Permissible Torque: 4Nm(566oz.in)

Moment Permissible Torque: 6Nm(850oz.in)

Shaft Maximum Axial Load: 5N

Shaft Maximum Radial Load: 25N



Physical Specification

Frame Size: 30 x 30mm

Gearbox Length: 42.7mm

Shaft Diameter: Φ6mm

Shaft Length: 18mm

D-cut Length: 12mm

Number of Leads: 4

Lead Length: 500mm

Weight: 330g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 11HS20-0714S-PG100.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Geared Stepper Motor L=51mm 0.71A 1.8 Deg 14Ncm Bipolar with 50.9:1 Planetary Gearbox
Next: Nema 11 Geared Dual Shaft Stepper Motor Bipolar L=51mm 1.8 Deg 0.14 Ncm 0.67A with14:1 Planetary Gearbox
Gearbox Specification
Efficiency 73%
Gear Ratio 50.9:1
Gearbox Length(mm) 42.7
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566
Moment Permissible Torque(Ncm) 600
Moment Permissible Torque(oz.in) 850
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Inductance(mH) 8.4
Lead Length(mm) 500
Motor Length(mm) 51
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.71
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Physical Specification
Weight(g) 400
