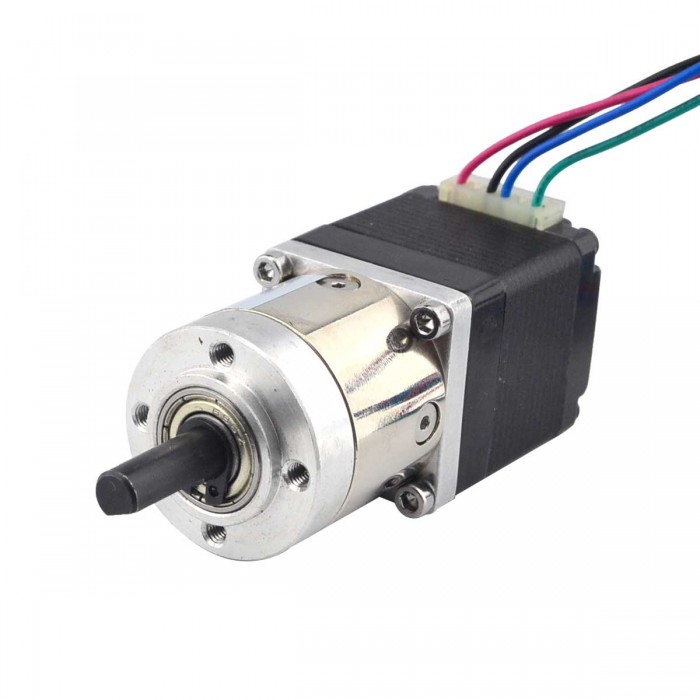

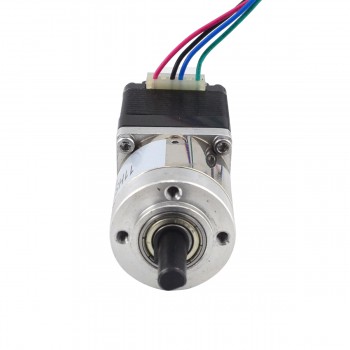

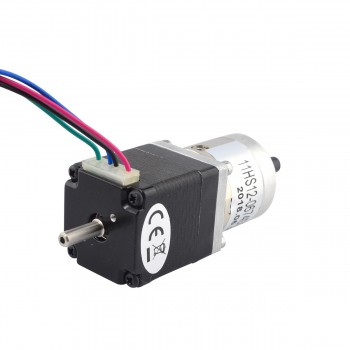

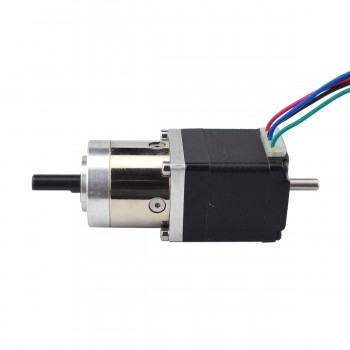

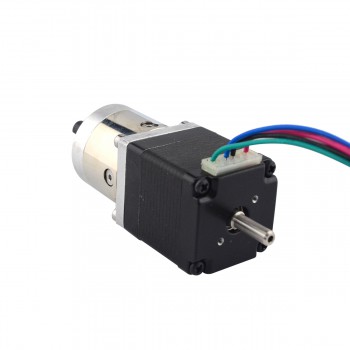

Nema 11 Geared Stepper Motor L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 5:1 Gearbox

NO.:11HS12-0674D2-PG5
Review: Post a review
China National Day 2020 Special Offer:
  • 5% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid:October 1st, 2020 - October 8th, 2020
  • Note:Delayed Delivery, See Details...
  • See details
Latest price:$50.86
Buy It Now:$39.12
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$38.20 $37.26 $36.32 $35.40
Add To Cart

This Nema 11 stepper motor with 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 11HS12-0674D2-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 7Ncm(9.91oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 5.6ohms
  • Inductance: 4.2mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18:1
  • Efficiency: 90%
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 2N.m(283oz.in)
  • Moment Permissible Torque: 4N.m(566oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specification

  • Frame Size: 28 x 28mm
  • Gearbox Length: 27mm
  • Front Shaft Diameter: Φ6mm
  • Front Shaft Length: 18mm
  • Front D-cut Length: 12mm

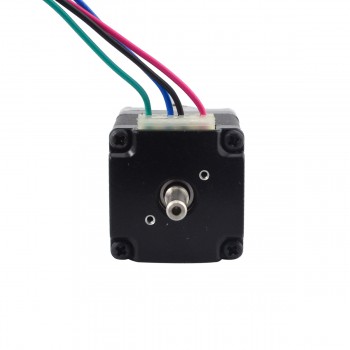

  • Rear Shaft Diameter: Φ4mm
  • Rear Shaft Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 200g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Geared Dual Shaft Stepper Motor Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox 9.5mm Rear Shaft Length
Next: Nema 11 Geared Stepper Motor L=51mm w/ Rear Shaft & Screw Hole & Gear Ratio 14:1 Gearbox
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4
Phase Resistance(ohm) 5.6
Rated Current (A) 0.67
Gearbox Specification
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 27.2
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 400
Moment Permissible Torque(oz.in) 566.4
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Holding Torque w/o Gearbox(Ncm) 7
Holding Torque w/o Gearbox(oz.in) 9.9
Motor Length(mm) 32
Motor Nema Size Nema 11
Physical Specification
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 200
