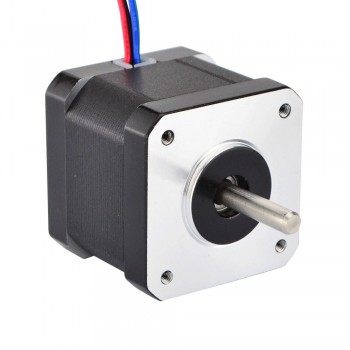

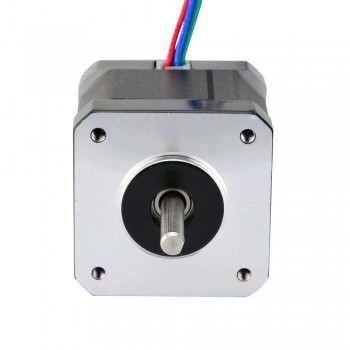

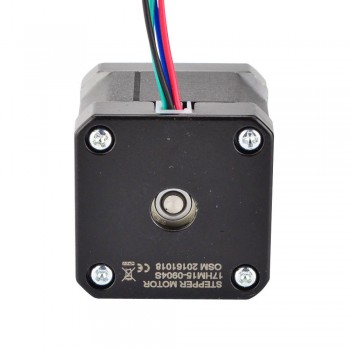

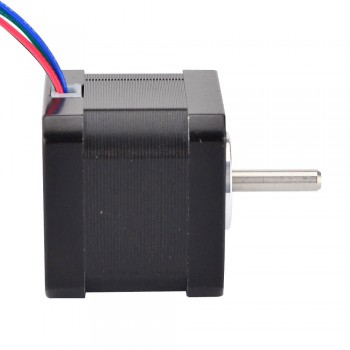

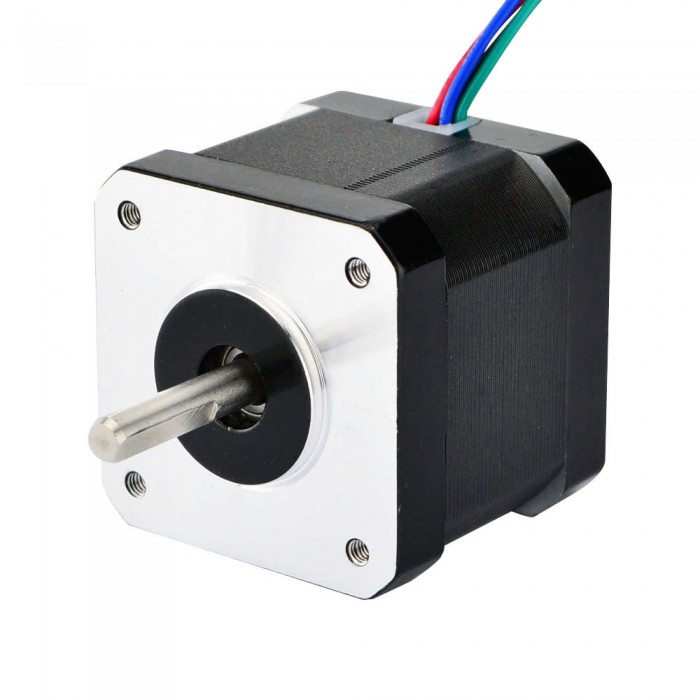

Nema 17 Stepper Motor Bipolar 0.9 Deg 36Ncm (51oz.in) 0.9A 5.4V 42x42x40mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm. It has 4 wires, each phase draws current 0.9A, with holding torque 36Ncm (51oz.in).
Electrical Specification
Manufacturer Part Number: 17HM15-0904S
Motor Type: Bipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 36Ncm(51oz.in)
Rated Current/phase: 0.9A
Voltage: 5.4V
Phase Resistance: 6.0ohms
Inductance: 12.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 280g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 17HM15-0904S.pdf
Torque Curver: 17HM15-0904S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 36 |
| Holding Torque (oz.in) | 51 |
| Inductance(mH) | 12 |
| Phase Resistance(ohm) | 6 |
| Rated Current (A) | 0.9 |
| Step Angle(°) | 0.9 |
| Physical Specification | |
| Body Length(mm) | 40 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 300 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
