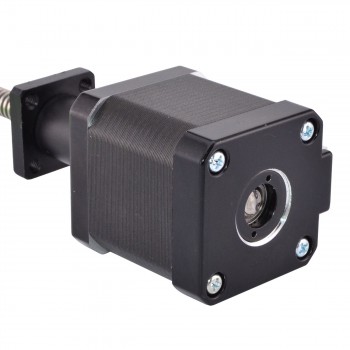

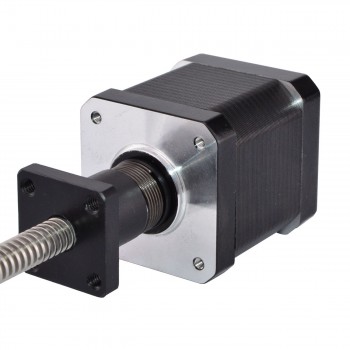

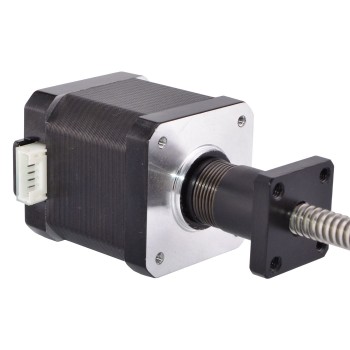

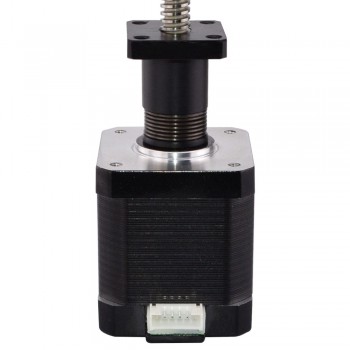

Nema 17 External Linear Stepper Motor 48mm Stack 1.68A Lead 2mm/0.07874" Length 330mm

NO.:17LS19-1684E-330Y
Review: Post a review
China National Day 2020 Special Offer:
  • 5% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid:October 1st, 2020 - October 8th, 2020
  • Note:Delayed Delivery, See Details...
  • See details
Latest price:$68.42
Buy It Now:$52.63
Quantity:- +

Buy More, Save more!
3 - 9 10 - 29 30 - 99 100 - Max
$50.99 $49.34 $47.70 $46.06
Add To Cart

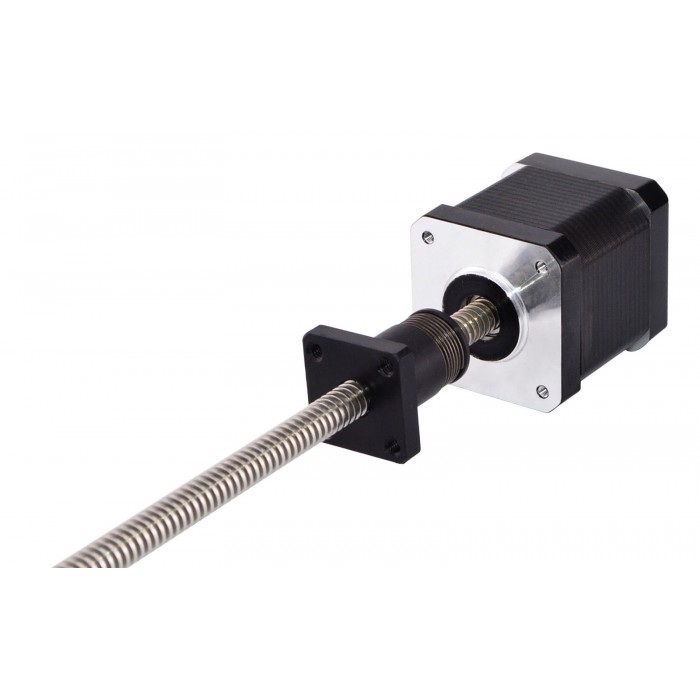

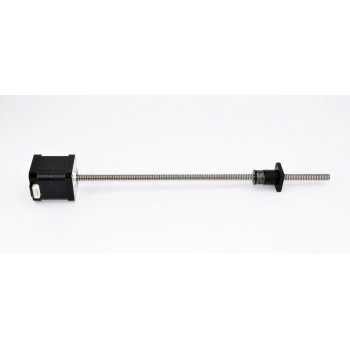

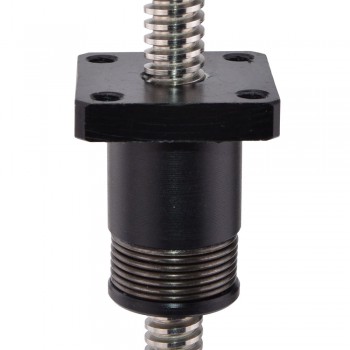

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 330mm Tr8x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 17LS19-1684E-330Y
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 44Ncm(62.3oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Voltage: 2.8V
  • Inductance: 2.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 330mm(12.992")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 350g

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Dual Shaft External Linear Stepper Motor 48mm Stack 1.68A Lead 8mm/0.31496" Length 200mm Rear Shaft Length 13mm
Next: Nema 23 Economy External Linear Stepper Motor 56mm Stack 3A Lead 20mm/0.787" Length 355mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.3
Inductance(mH) 2.8
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(°) 1.8
Motor Type External
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42 x 42
Lead Length(mm) 500
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 330
No. of Lead 4
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
