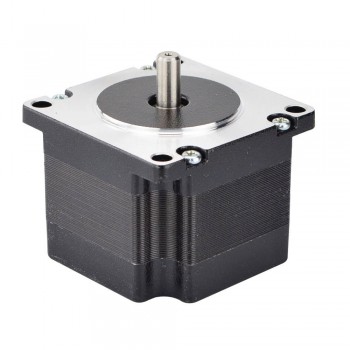

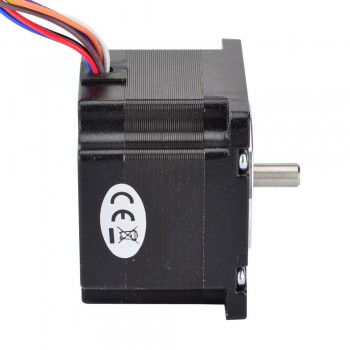

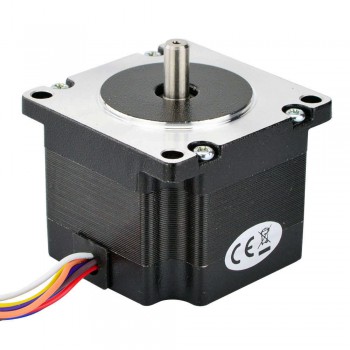

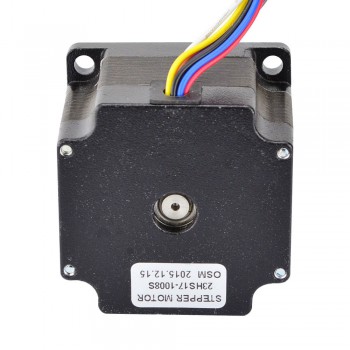

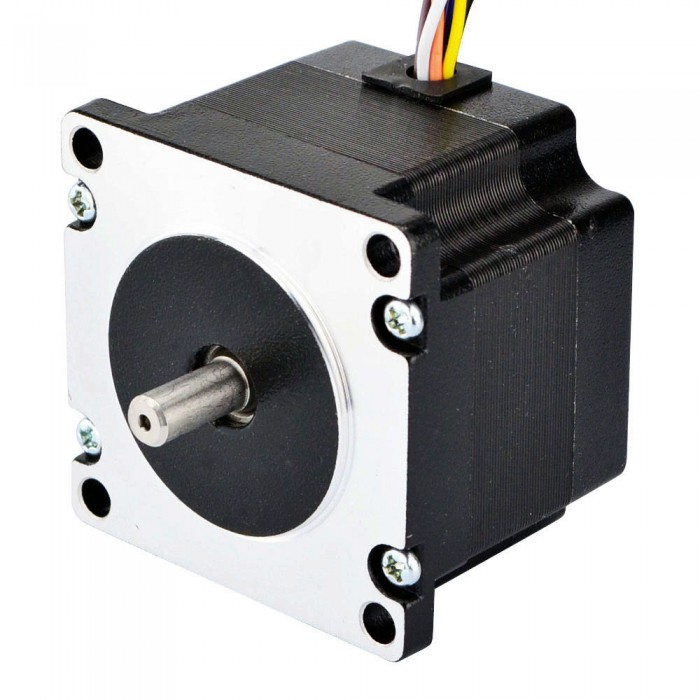

Nema 23 Stepper Motor Bipolar 1.8 Deg 0.6Nm (85oz.in) 1.4A 4.1V 57x57x44mm 8 Wires

Nema 23 Stepper Motor Bipolar 1.8 Deg 0.6Nm (85oz.in) 1.4A 4.1V 57x57x44mm 8 Wires
NO.:23HS17-1008S
Post a review
Our Price:$17.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $16.52 5%
30 $16.17 7%
50 $15.65 10%
100 $15.13 13%
Add To Cart

This Nema 23 stepper motor with step angle 1.8deg and size 57x57x44mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 0.43Nm(61oz.in) with unipolar connection and 0.6Nm(85oz.in) with bipolar connection.

Electrical Specification

Manufacturer Part Number: 23HS17-1008S

Motor Type: Unipolar/Bipolar

Step Angle: 1.8 deg

Holding Torque(Bipolar): 0.6Nm(85oz.in)

Holding Torque(Unipolar): 0.43Nm(61oz.in)

Rated Current(Bipolar Serial): 0.7A

Rated Current(Bipolar Parallel): 1.4A

Rated Current(Unipolar): 1.0A

Phase Resistance(Bipolar Serial): 11.4ohms

Phase Resistance(Bipolar Parallel): 2.9ohms

Phase Resistance(Unipolar): 5.7ohms

Inductance(Bipolar Serial): 22.0mH ± 20%(1KHz)

Inductance(Bipolar Parallel): 5.5mH ± 20%(1KHz)

Inductance(Unipolar): 5.5mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Body Length: 44mm

Shaft Diameter: Φ6.35mm

Shaft Length: 12.7mm

Number of Leads: 8

Lead Length: 305mm

Weight: 500g



Connection

A+
A-
C-
C+
B+
B-
D-
D+
BLK
WHT
BRN
ORG
RED
PUR
BLU
YEL



Resources

Full Datasheet: 23HS17-1008S.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 0.55Nm (78oz.in) 2.8A 2V 57x57x41mm 4 Wires
Next: Nema Size 23 Stepper Motor Bipolar 1.8 Deg 0.9 Nm (127.5oz.in) 2A 3.6V 57x57x52mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Holding Torque (Ncm) 60
Holding Torque (oz.in) 85
Inductance(mH) 5.5
Phase Resistance(ohm) 2.9
Rated Current (A) 1.4
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 44
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type O
Shaft Diameter(mm) 6.35
Shaft Length(mm) 14.3
No. of Lead 8
Lead Length(mm) 305
Weight(g) 500
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
