Nema 23 Stepper Motor Unipolar 1.8 Deg 90Ncm (127.5oz.in) 1A 7.4V 57x57x56mm 6 Wires
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!

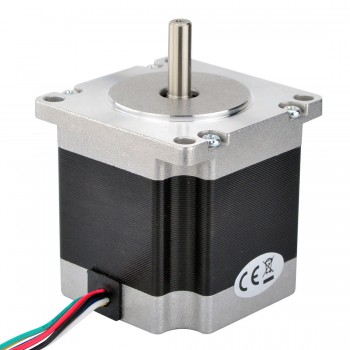

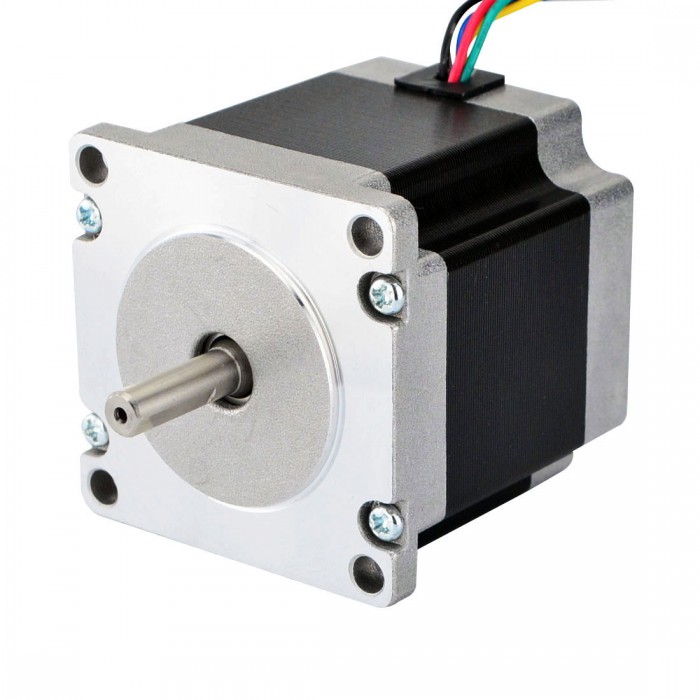

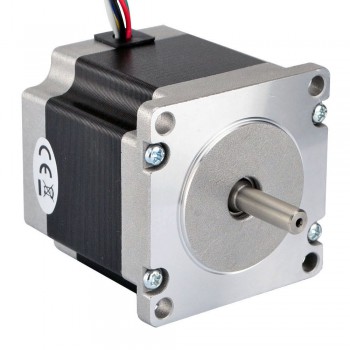

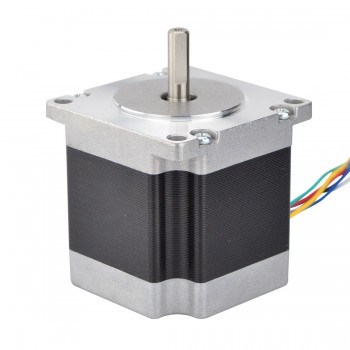

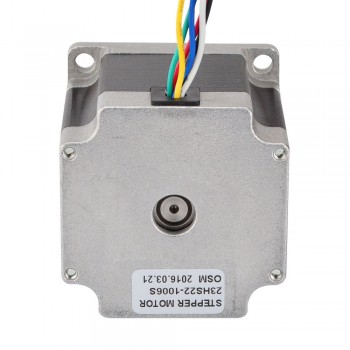

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 6 wires, each phase draws 1.0A, with holding torque 0.9Nm (127.5oz.in).
Electrical Specification
Manufacturer Part Number: 23HS22-1006S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.9Nm(127.5oz.in)
Rated Current/phase: 1.0A
Voltage: 7.4V
Phase Resistance: 7.4ohms
Inductance: 10mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm(1/4in)
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 0.7Kg
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
BLK
|
YEL
|
GRN
|
RED
|
WHT
|
BLU
|
Resources
Full Datasheet: 23HS22-1006S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 90 |
| Holding Torque (oz.in) | 127.5 |
| Inductance(mH) | 10 |
| Phase Resistance(ohm) | 7.4 |
| Rated Current (A) | 1 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Frame Size(mm) | 57x57 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Lead | 6 |
| Lead Length(mm) | 500 |
| Weight(g) | 700 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
Kristin – 28 Jun 2024
The quality of this product is very good, the appearance design is also very beautiful, and the function seems to be very good at present
hankincolorado – 26 Oct 2019
Good high impedance stepper. That means it can be used with all the common controllers without tripping over-current protection as it only draws 1 or 1 1/2 A at 12VDC. It is quiet and very smooth stepping.
I used it for an application where I advance one step at a time driving it with a sin table on a L296n and it works great.
