Dual Shaft Nema 23 Stepper Motor Unipolar 1.8 Deg 90Ncm (127.5oz.in) 1A 7.4V 57x56mm 6 Wires

Dual Shaft Nema 23 Stepper Motor Unipolar 1.8 Deg 90Ncm (127.5oz.in) 1A 7.4V 57x56mm 6 Wires
NO.:23HS22-1006D
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$19.87
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.88 5%
30 $18.48 7%
50 $17.88 10%
100 $17.29 13%
Add To Cart

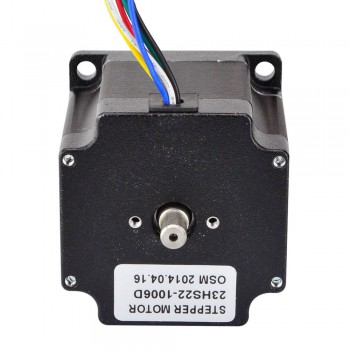

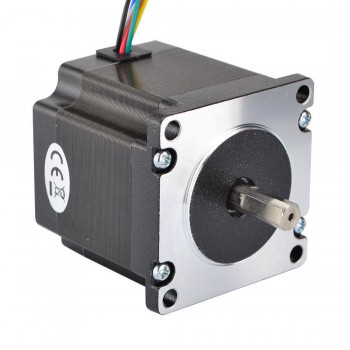

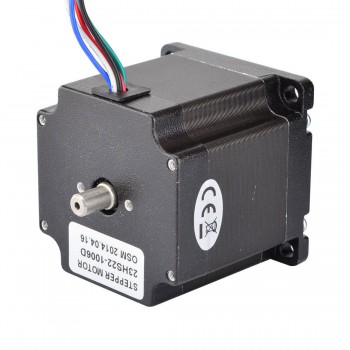

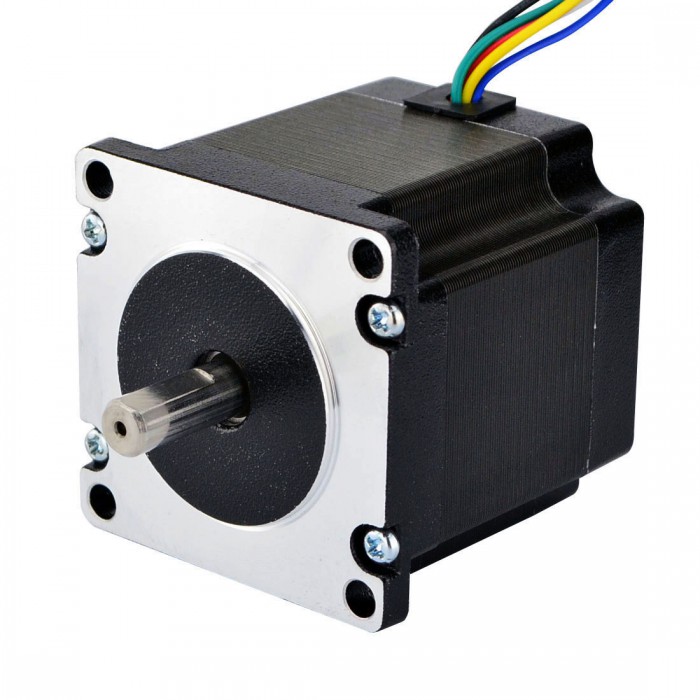

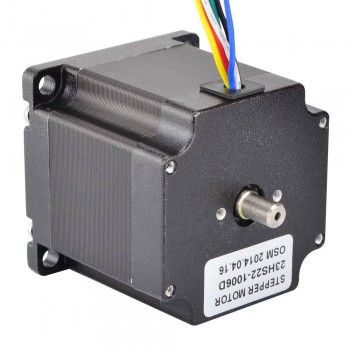

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 6 wires, each phase draws 1.0A, with holding torque 0.9Nm (127.5oz.in), a rear shaft is made for encoder or equals.

Electrical Specification

  • Manufacturer Part Number: 23HS22-1006D
  • Motor Type: Unipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.9Nm(127.5oz.in)
  • Rated Current/phase: 1.0A
  • Voltage: 7.4V
  • Phase Resistance: 7.4ohms
  • Inductance: 10mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm(1/4in)
  • Shaft Length: 20.35mm
  • D-cut Length: 15mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 0.7Kg

Connection

A+
O+
A-
B+
O-
B-
BLK
YEL
GRN
RED
WHT
BLU
