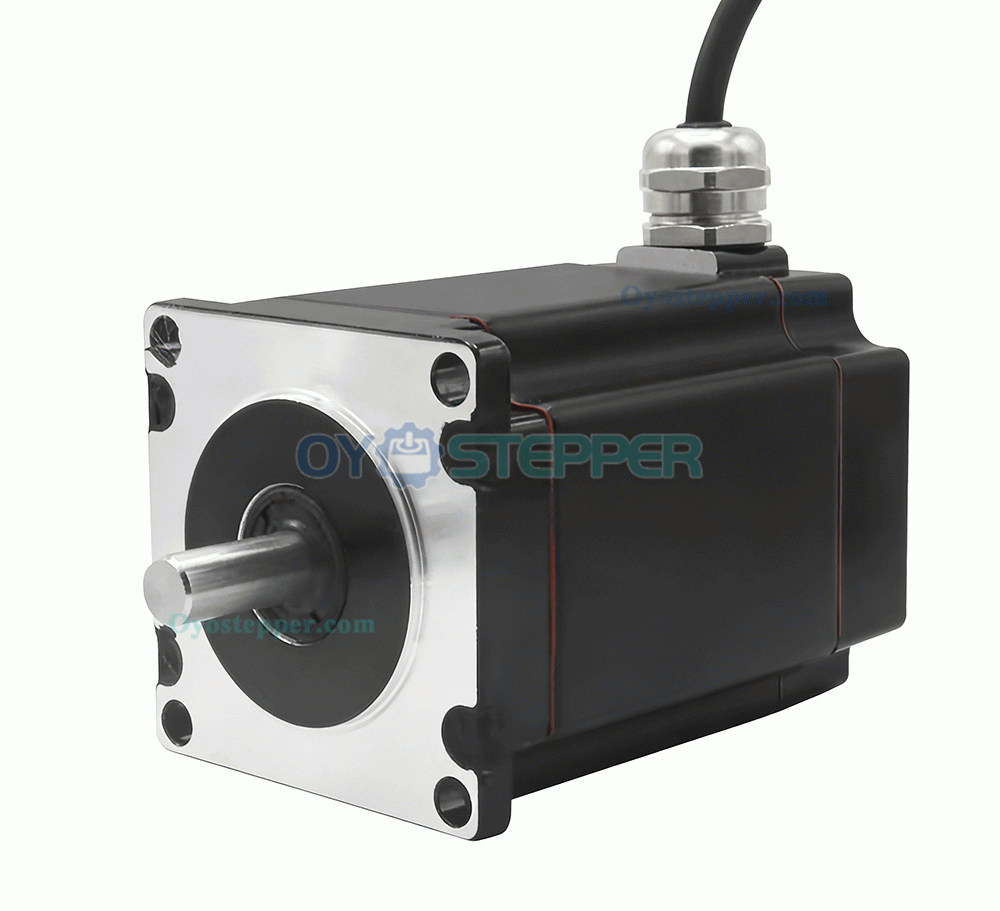

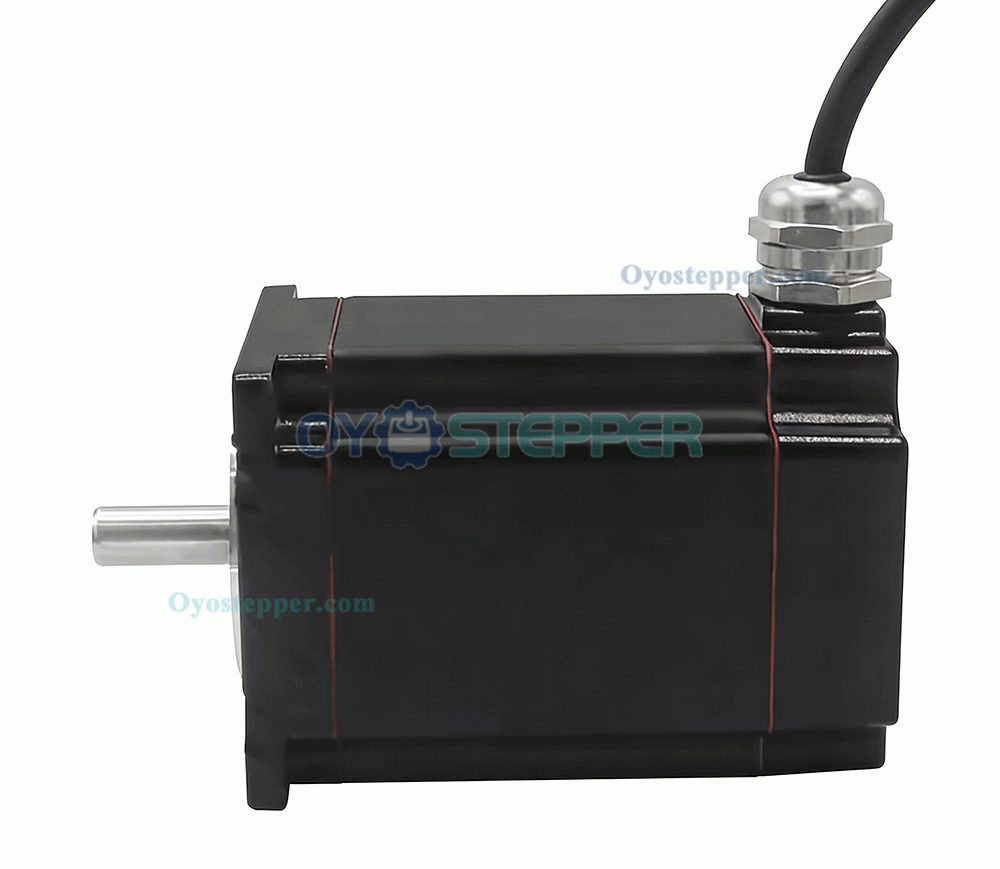

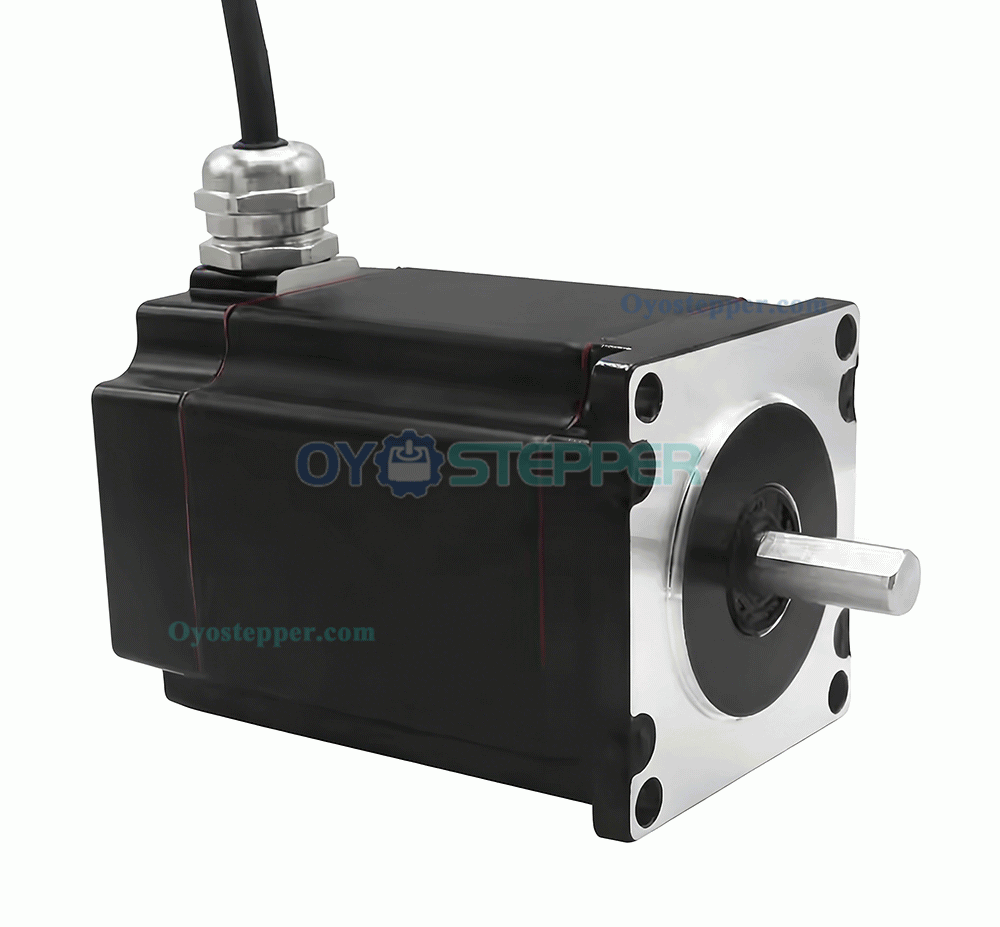

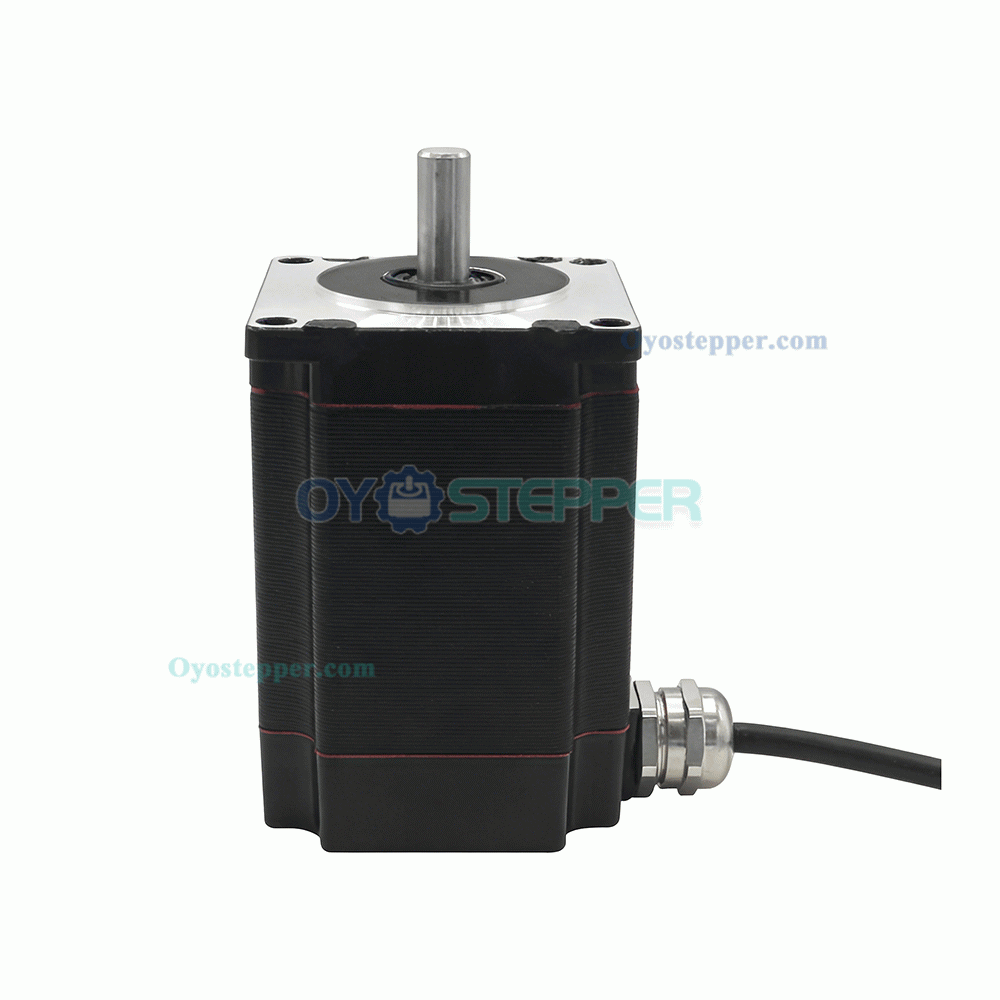

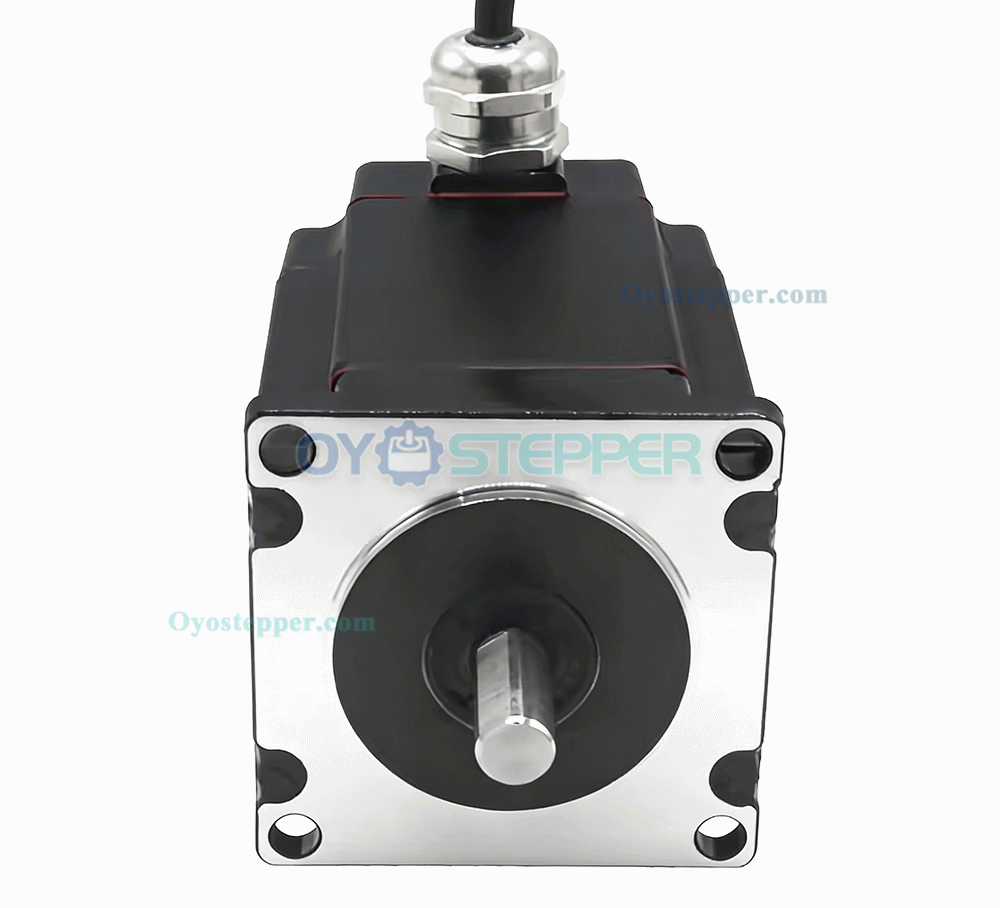

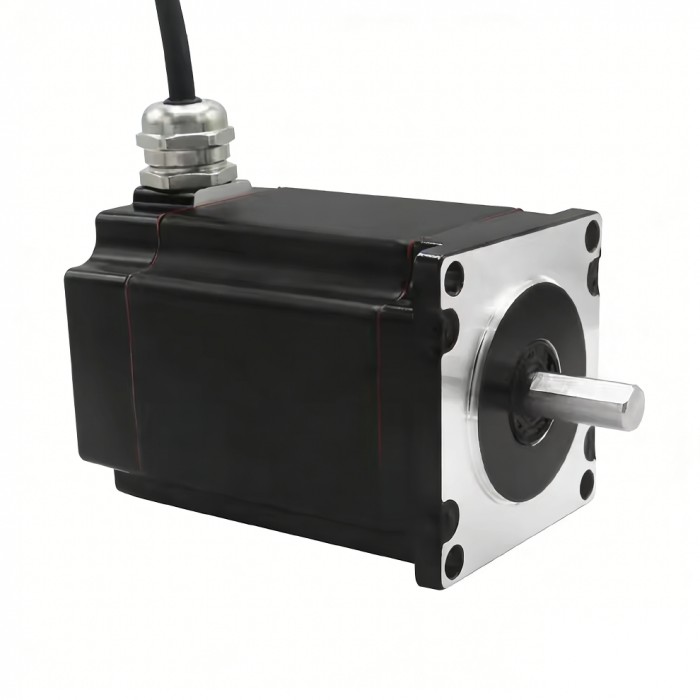

CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor
CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor
Specification:
Model: F57SHD4816-21B
Step Angle: 1.8°
Rated Voltage:2.85V
Number of Phase: 2
Rated Current: 3.0A
Holding Torque:2N.m
Detent Torque: 15 mN.m
Rotor Inertia: 57 g.cm²
Insulation Resistance: 100MΩ min. (500V DC)
Insulation Class: Class B (130°C)
Resistance per phase: 0.9Ω ±10%
Inductance per Phase: 5.0mH ±20%

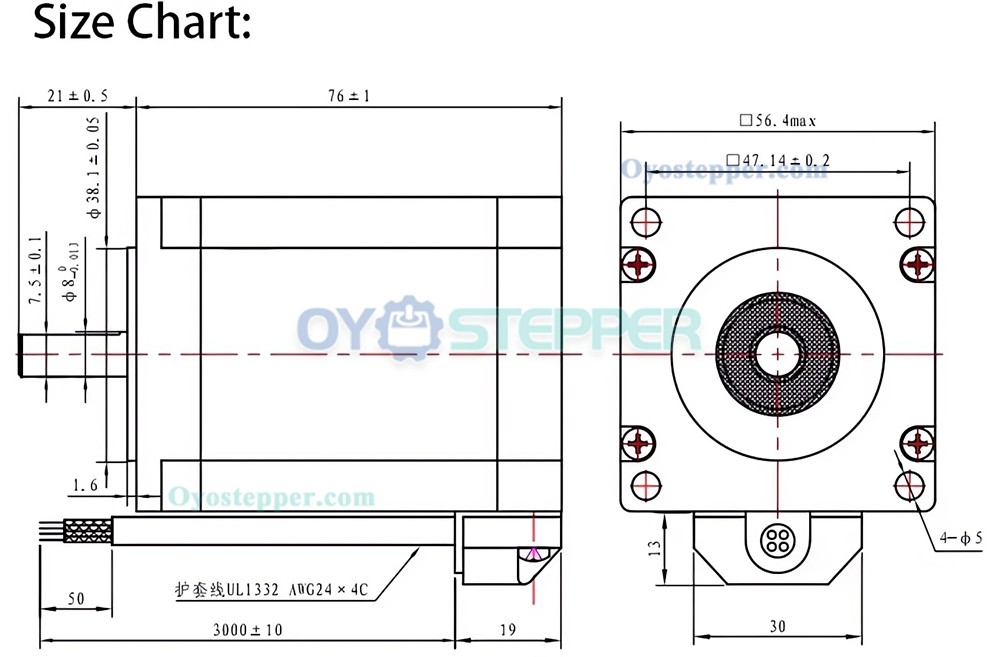

Physical Specification
Frame Size:56.4 x 56.4 mm
Body Length: 76mm
Shaft Diameter: 8mm
Shaft Length:21mm
D-Cut Shaft Length:19.4mm
Number of leads:4
Weight:1kg
.png "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
.png "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
.png "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
.png "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
.png "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
(1).jpg "CASUN IP67 Nema 23 Waterproof Stepper Motor 1.8° 2N.m 2.85V Hybrid Water Resistant Motor")
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Body Length(mm) | 76 |
| Holding Torque (Ncm) | 200 |
| Motor Length(mm) | 76 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP67 |
