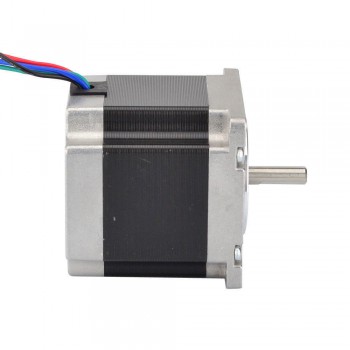

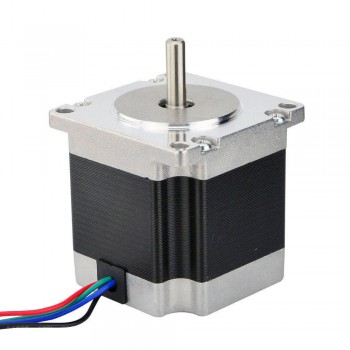

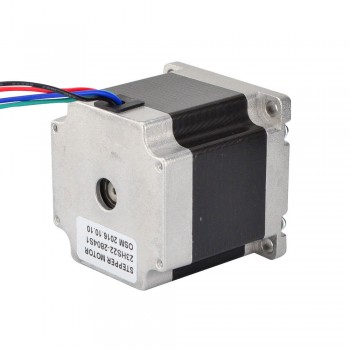

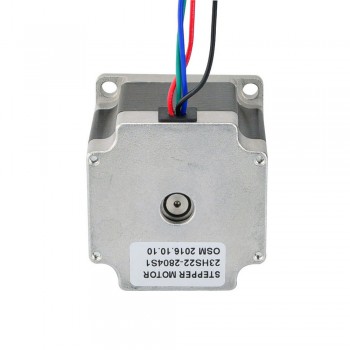

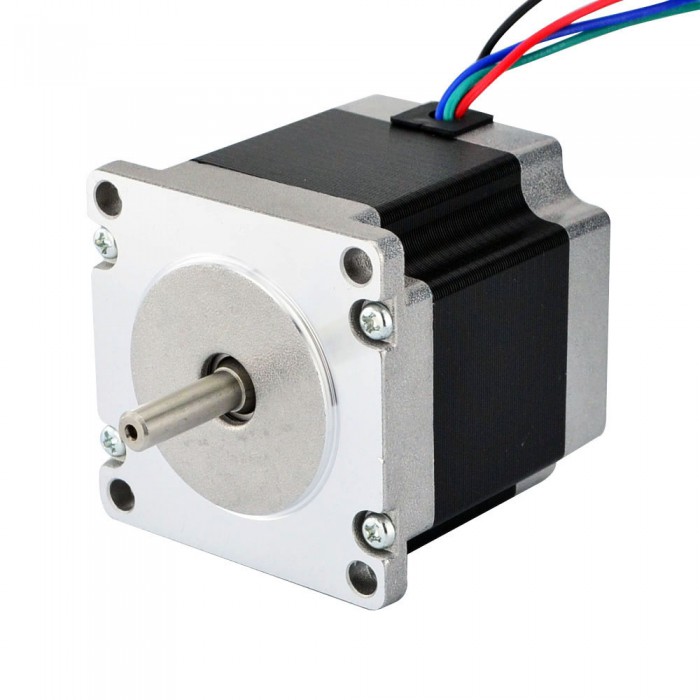

Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x56mm 4 Wires Φ6mm Shaft

Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x56mm 4 Wires Φ6mm Shaft
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$19.87
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.88 5%
30 $18.48 7%
50 $17.88 10%
100 $17.29 13%
Add To Cart

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm (178.4oz.in).
Please Notice: This shaft is 6mm diameter.

Electrical Specification

  • Manufacturer Part Number: 23HS22-2804S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 700g





Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires (23HS22-2804S)CNC Stepping Motor DIY CNC Mill
Next: Dual Shaft Nema 23 Stepper Motor Uni/Bipolar 1.8 Deg 1.26Nm (178.4oz.in) 3A 57x56mm 8 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 700
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

f.corlier – 18 Oct 2019

Excellent quality motor. Keep in mind that this Nema 23 motor draws 2.8A per phase (two phase motor) so it should not be driven by small motor drivers. Follow the advice given in the "questions" section and pickup a motor driver that handles this beast. I picked up a few decent ones from ebay and love this thing. It has plenty of torque and speed for my application. I am looking into getting a tiny motor controller or a gshield.
