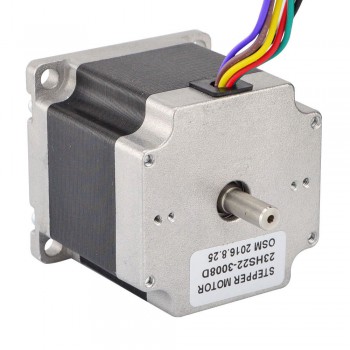

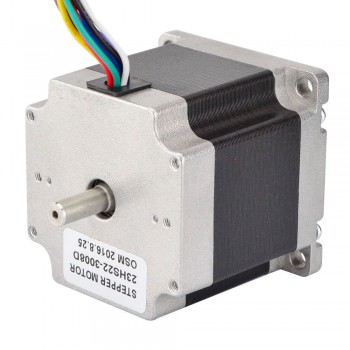

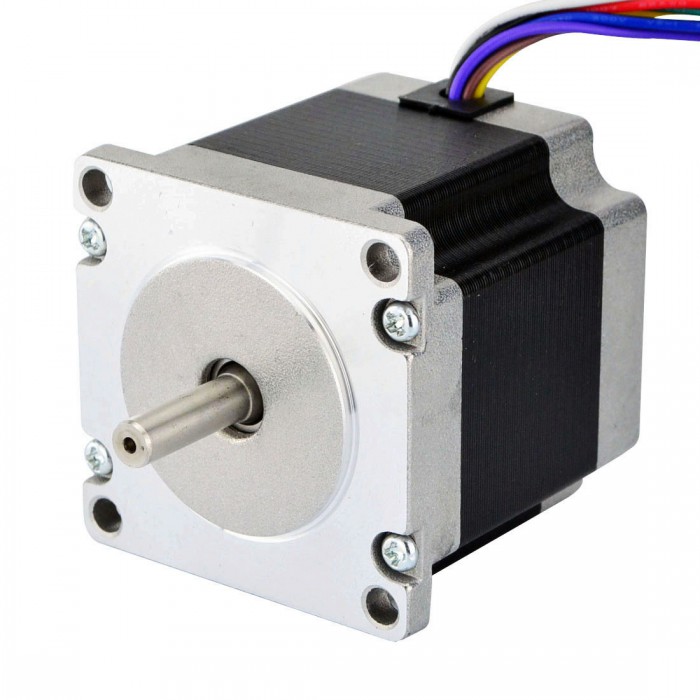

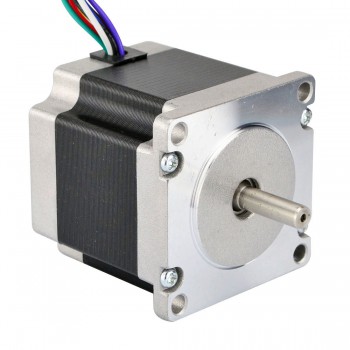

Dual Shaft Nema 23 Stepper Motor Uni/Bipolar 1.8 deg 1.26Nm (178.4oz.in) 3A 57x56mm 8 Wires

NO.:SKU:23HS22-3008D
Review: Post a review
Latest price:$20.81
Buy It Now:$16.00
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$15.37 $14.72 $14.08 $13.45
Add To Cart

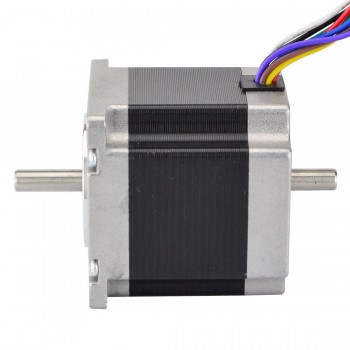

This Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 0.9Nm(127.5oz.in) with unipolar connection and 1.26Nm(178.4oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

  • Manufacturer Part Number: 23HS22-3008D
  • Motor Type: Unipolar/Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque(Unipolar): 0.9Nm(127.5oz.in)
  • Holding Torque(Bipolar Serial): 1.26Nm(178.4oz.in)
  • Holding Torque(Bipolar Parallel): 1.26Nm(178.4oz.in)
  • Rated Current/phase(Unipolar): 3.0A
  • Rated Current/phase(Bipolar Serial): 2.12A
  • Rated Current/phase(Bipolar Parallel): 4.24A
  • Phase Resistance(Unipolar): 0.75 ohms
  • Phase Resistance(Bipolar Serial): 1.5 ohms
  • Phase Resistance(Bipolar Parallel): 0.375 ohms
  • Inductance(Unipolar): 1.1mH ± 20%(1KHz)
  • Inductance(Bipolar Serial): 4.4mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 1.1mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Front Shaft Length: 21mm
  • Rear Shaft Length: 15mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Weight: 0.7kg

Connection

A+
A-
C-
C+
B+
B-
D-
D+
RED
YEL
BLK
BLU
WHT
PUR
GRN
BRN

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x56mm 4 Wires Φ6mm Shaft
Next: Nema 23 Stepper Motor Unipolar 1.8 deg 1.35Nm (191.2oz.in) 1A 8.6V 57x57x76mm 6 Wires
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 1.1
Phase Resistance(ohm) 0.38
Rated Current (A) 4.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Dual Shaft
Shaft Type O
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
No. of Lead 8
Lead Length(mm) 500
Weight(g) 700
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
