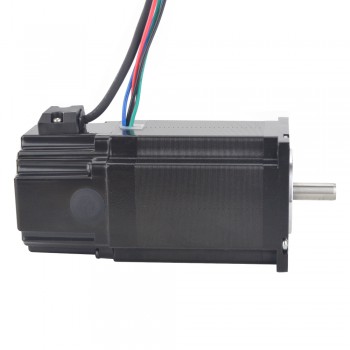

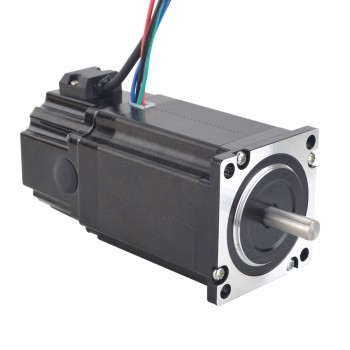

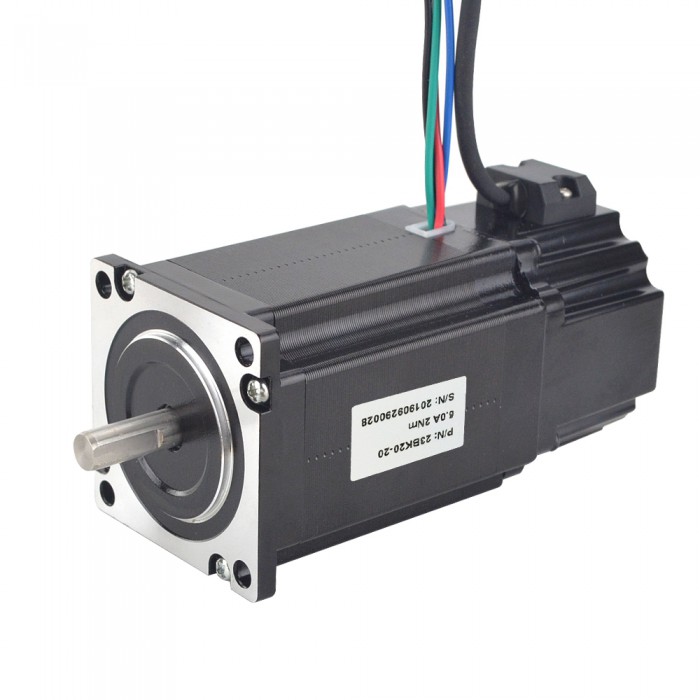

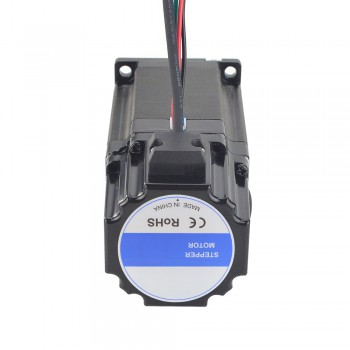

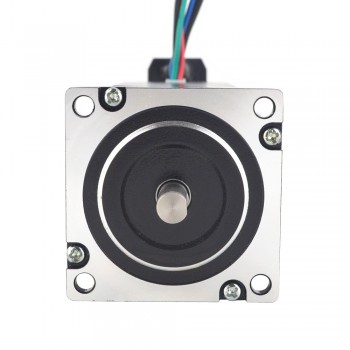

Nema 23 Stepper Motor P Series 1.8 Deg 2Nm/283.28oz.in 5.0A 2 Phase with Electromagnetic Brake
Special Offer in September 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till September 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$94.85
Electrical Specification
Manufacturer Part Number: 23BK20-20
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 2 Nm(283.28 oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.4 ohms
Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 76.5 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 1.06 kg
Brake Connections
Red--24V+
Red--24V-
2.0Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23BK20-20.pdf
Torque Curve: 23BK20-20 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 200 |
| Holding Torque (oz.in) | 283.28 |
| Inductance(mH) | 1.8 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.4 |
| Rated Current (A) | 5.0 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 2.0 |
| Static Friction Torque(oz.in) | 283.28 |
