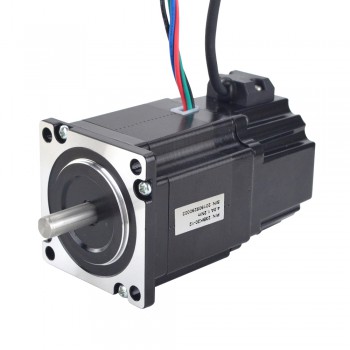

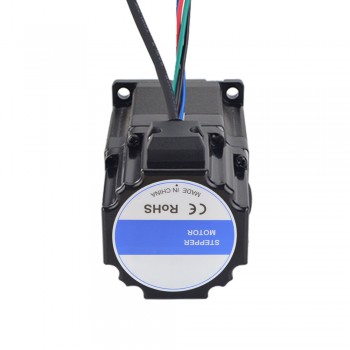

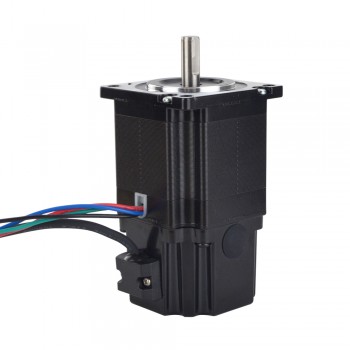

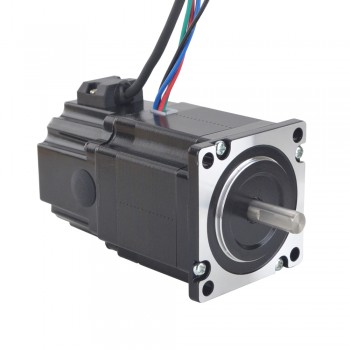

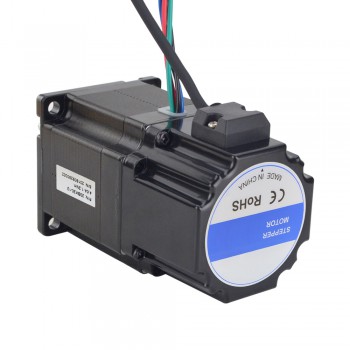

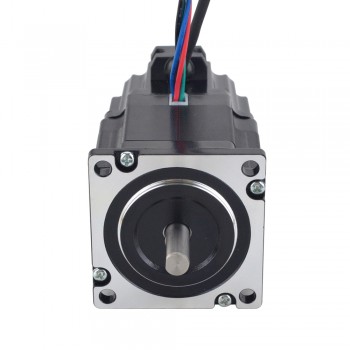

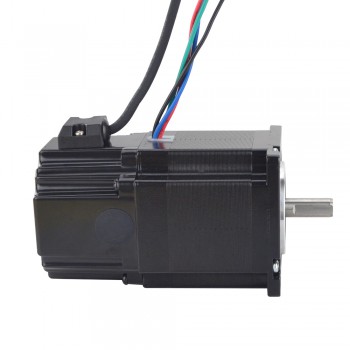

Nema 23 Stepper Motor P Series 1.8 Deg 1.2Nm/169.97oz.in 4.0A 2 Phase with Electromagnetic Brake
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$89.33
Electrical Specification
- Manufacturer Part Number: 23BK20-12
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 1.2 Nm(169.97 oz.in)
- Rated Current/phase: 4.0 A
- Phase Resistance: 0.45 ohms
- Inductance: 1.4 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57 mm
- Body Length: 55.5 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 21 mm
- D-Cut Shaft Length: 15 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 0.72 kg
Brake Connections
- Red--24V+
- Red--24V-
- 2.0Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 23BK20-12.pdf
- Torque Curve: 23BK20-12 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 120 |
| Holding Torque (oz.in) | 169.97 |
| Inductance(mH) | 1.4 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.45 |
| Rated Current (A) | 4.0 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 2.0 |
| Static Friction Torque(oz.in) | 283.28 |
