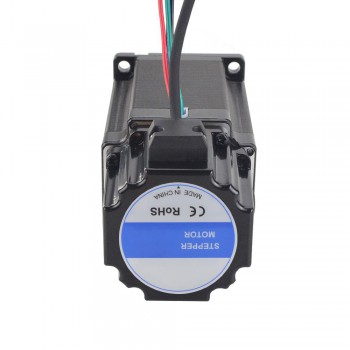

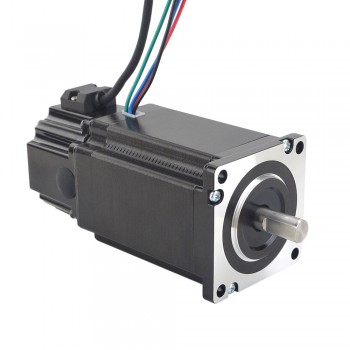

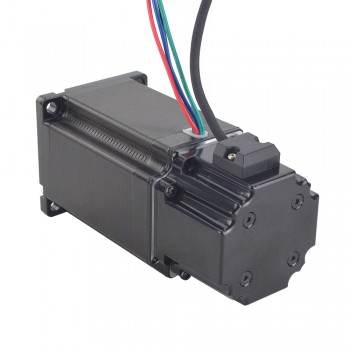

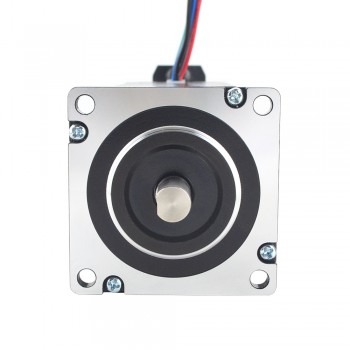

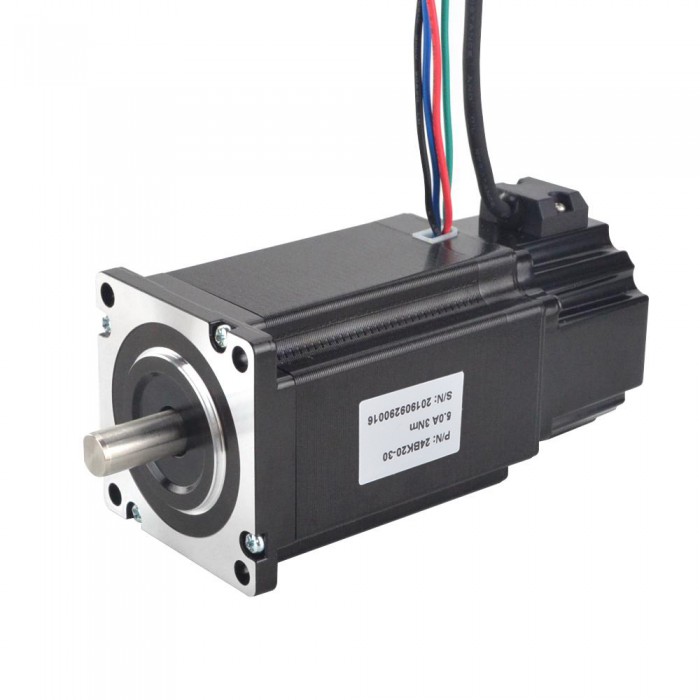

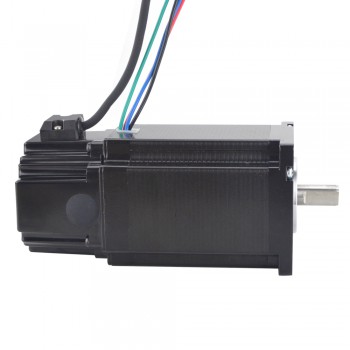

Nema 24 Stepper Motor P Series 1.8 Deg 3Nm/424.92oz.in 2 Phase with Electromagnetic Brake
Special Offer in May 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$105.90
Electrical Specification
- Manufacturer Part Number: 24BK20-30
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 3 Nm(424.92 oz.in)
- Rated Current/phase: 5.0 A
- Phase Resistance: 0.43 ohms
- Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 60 x 60 mm
- Body Length: 85 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 21 mm
- D-Cut Shaft Length: 15 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 1.3 kg
Brake Connections
- Red--24V+
- Red--24V-
- 2.0Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 24BK20-30.pdf
- Torque Curve: 24BK20-30 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 424.92 |
| Inductance(mH) | 1.8 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 24 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.43 |
| Rated Current (A) | 5.0 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(oz.in) | 283.28 |
