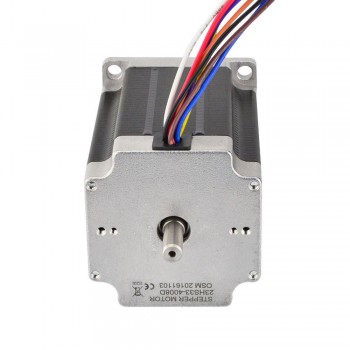

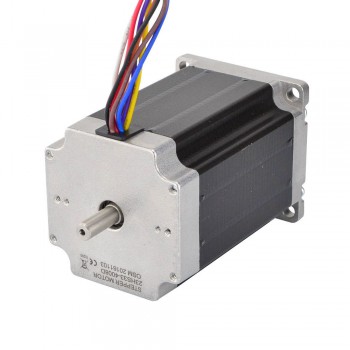

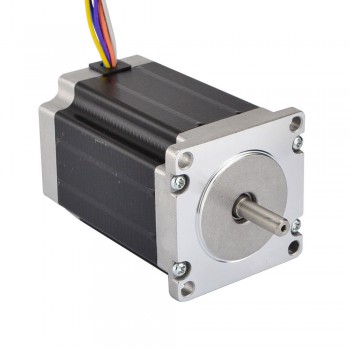

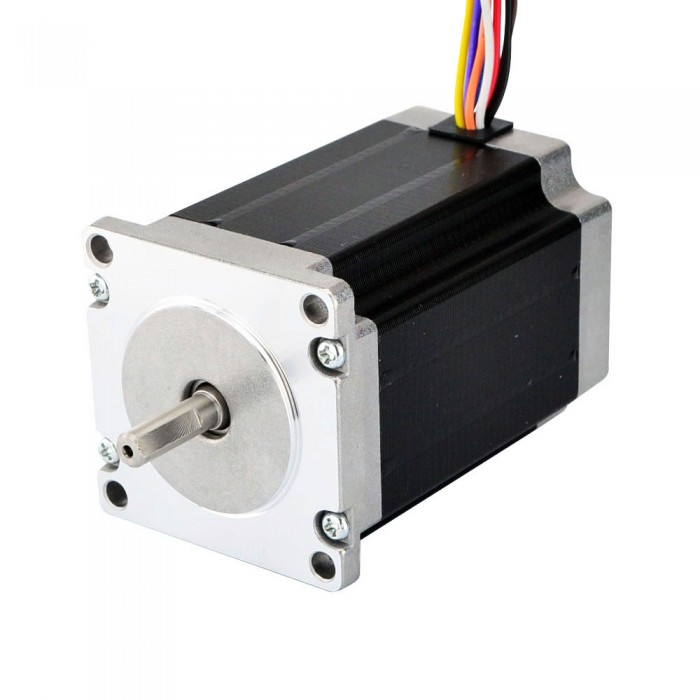

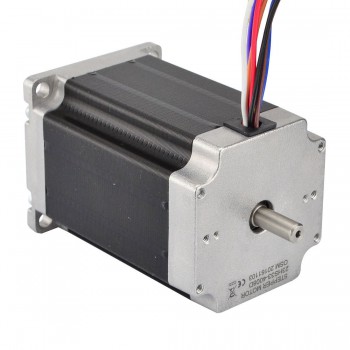

Dual Shaft Nema 23 Stepper Motor Uni/Bipolar 1.8 Deg 2.83Nm (400 oz.in) 4A 57x84mm 8 Wires
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$31.05
This nema 23 stepper motor with step angle 1.8deg and size 57x57x84mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 2.0Nm(283oz.in) with unipolar connection and 2.83Nm(400oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.
Electrical Specification
- Manufacturer Part Number: 23HS33-4008D
- Motor Type: Unipolar/Bipolar
- Step Angle: 1.8 deg
- Holding Torque(Bipolar): 2.83Nm(400oz.in)
- Holding Torque(Unipolar): 2.0Nm(283oz.in)
- Rated Current(Bipolar Serial): 2.83A
- Rated Current(Bipolar Parallel): 5.66A
- Rated Current(Unipolar): 4.0A
- Phase Resistance(Bipolar Serial): 1.6ohms
- Phase Resistance(Bipolar Parallel): 0.4ohms
- Phase Resistance(Unipolar): 0.8ohms
- Inductance(Bipolar Serial): 7.2mH ± 20%(1KHz)
- Inductance(Bipolar Parallel): 1.8mH ± 20%(1KHz)
- Inductance(Unipolar): 1.8mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57mm
- Body Length: 84mm
- Shaft Diameter: Φ6.35mm
- Front Shaft Length: 21mm
- D-cut Length: 15mm
- Rear Shaft Length: 15mm
- Number of Leads: 8
- Lead Length: 300mm
- Weight: 1.3kg
Connection
|
A+
|
A-
|
C-
|
C+
|
B+
|
B-
|
D-
|
D+
|
|
BLK
|
WHT
|
BRN
|
ORG
|
RED
|
PUR
|
BLU
|
YEL
|
Resources
- Full Datasheet: 23HS33-4008D.pdf
- Torque Curve: 23HS33-4008D_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar/Unipolar |
| Holding Torque (Ncm) | 283 |
| Holding Torque (oz.in) | 400 |
| Inductance(mH) | 1.8 |
| Phase Resistance(ohm) | 0.4 |
| Rated Current (A) | 5.66 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 84 |
| Frame Size(mm) | 57x57 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Lead | 8 |
| Lead Length(mm) | 300 |
| Weight(g) | 1130 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
