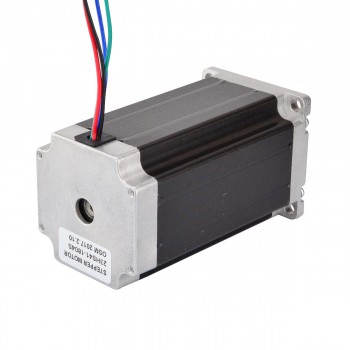

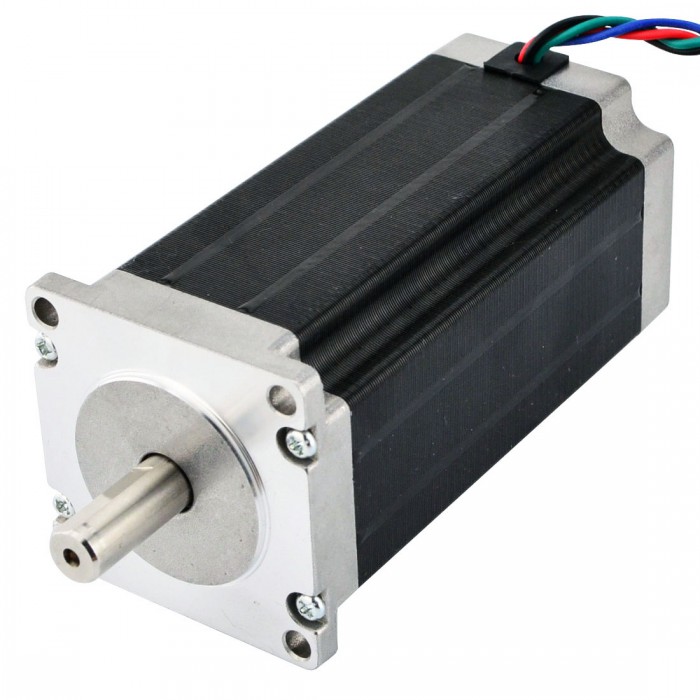

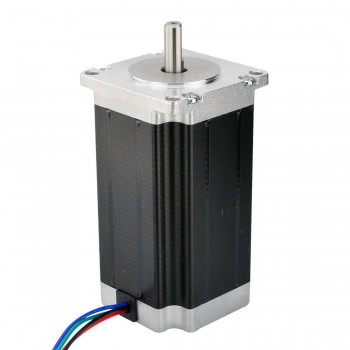

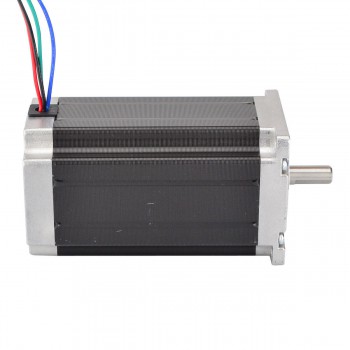

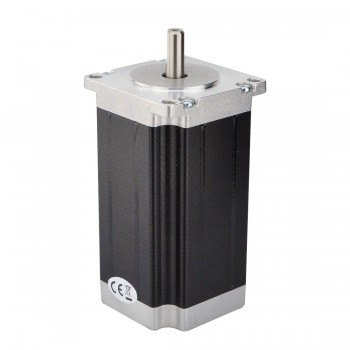

Nema 23 Stepper Motor Bipolar 1.8 deg 2.4Nm (340oz.in) 1.8A 4.95V 57x57x104mm 4 Wires

NO.:SKU:23HS41-1804S
Review: Post a review
Latest price:$36.85
Buy It Now:$28.34
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$27.20 $26.08 $24.94 $23.80
Add To Cart

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x104mm. It has 4 wires, each phase draws 1.8A, with holding torque 2.4Nm (340oz.in).

Electrical Specification

  • Manufacturer Part Number: 23HS41-1804S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 2.4Nm(340oz.in)
  • Rated Current/phase: 1.8A
  • Voltage: 4.95V
  • Phase Resistance: 2.75ohms
  • Inductance: 17mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 104mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20.6mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.5kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Uni/Bipolar 1.8 deg 2.83Nm (400 oz.in) 4A 57x84mm 8 Wires
Next: Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 deg 2.5Nm (354oz.in) 3A 57x57x114mm 8 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 240
Holding Torque (oz.in) 340
Inductance(mH) 12
Phase Resistance(ohm) 2.75
Rated Current (A) 1.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 104
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 20.6
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1250
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Bill D – 14 Dec 2016

Very powerful motor which can be used with medium current handling stepper drivers. Using it very successfully with an Arduino and a $10 stepper driver board. Be warned that this motor is relatively larger than other NEMA 23 motors I've seen.
