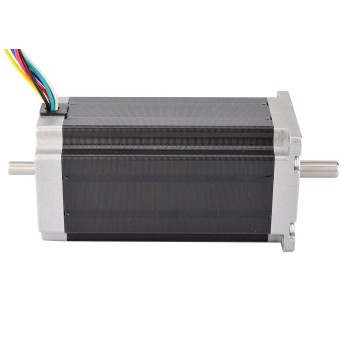

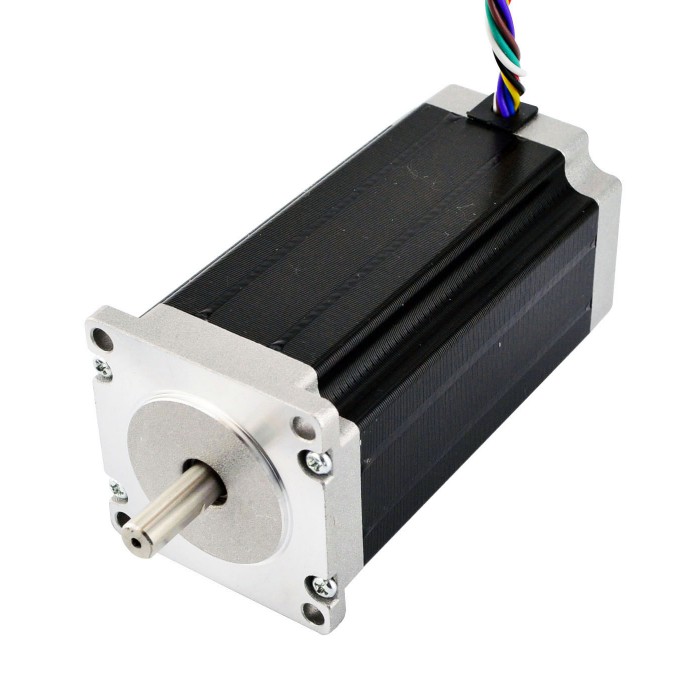

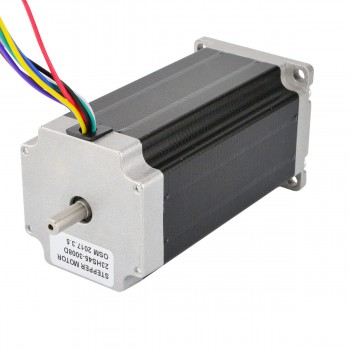

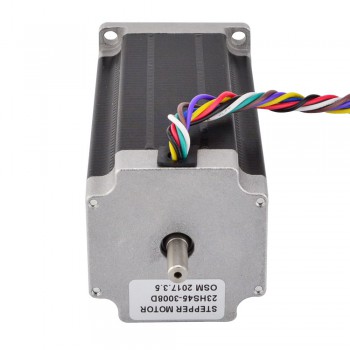

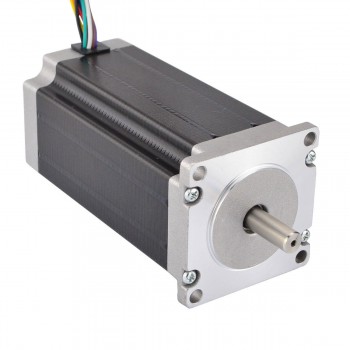

Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 2.5Nm (354oz.in) 3A 57x57x114mm 8 Wires

Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 2.5Nm (354oz.in) 3A 57x57x114mm 8 Wires
NO.:23HS45-3008D
Post a review
Our Price:$37.76
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $35.87 5%
10 $35.12 7%
50 $33.98 10%
100 $32.85 13%
Add To Cart

This nema 23 stepper motor with step angle 1.8deg and size 57x57x114mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 1.7Nm(240.7oz.in) with unipolar connection and 2.5Nm(354oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

  • Manufacturer Part Number: 23HS45-3008D
  • Motor Type: Unipolar/Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque(Unipolar): 1.7Nm(240.7oz.in)
  • Holding Torque(Bipolar Serial): 2.5Nm(354oz.in)
  • Holding Torque(Bipolar Parallel): 2.5Nm(354oz.in)
  • Rated Current/phase(Unipolar): 3.0A
  • Rated Current/phase(Bipolar Serial): 2.12A
  • Rated Current/phase(Bipolar Parallel): 4.24A
  • Phase Resistance(Unipolar): 0.8 ohms
  • Phase Resistance(Bipolar Serial): 1.6 ohms
  • Phase Resistance(Bipolar Parallel): 0.4 ohms
  • Inductance(Unipolar): 1.7mH ± 20%(1KHz)
  • Inductance(Bipolar Serial): 6.8mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 1.7mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 114mm
  • Front Shaft Diameter: Φ8mm
  • Rear Shaft Diameter: Φ6.35mm
  • Front Shaft Length: 21mm
  • D-cut length: 15mm
  • Rear Shaft Length: 15mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Weight: 1.7kg

Connection

A+
A-
C+
C-
B+
B-
D+
D-
RED
YEL
BLK
BLU
WHT
PUR
GRN
BRN



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 2.4Nm (340oz.in) 1.8A 4.95V 57x57x104mm 4 Wires
Next: Dual Shaft Nema 23 Stepper Motor Bipolar 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Holding Torque (Ncm) 250
Holding Torque (oz.in) 354
Inductance(mH) 1.7
Phase Resistance(ohm) 0.4
Rated Current (A) 4.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 114
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 21
No. of Lead 8
Lead Length(mm) 500
Weight(g) 1600
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
