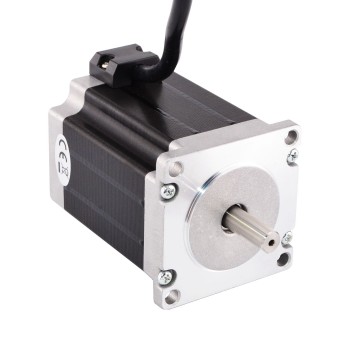

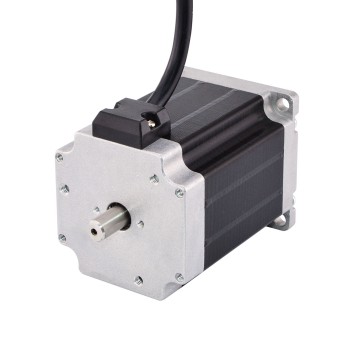

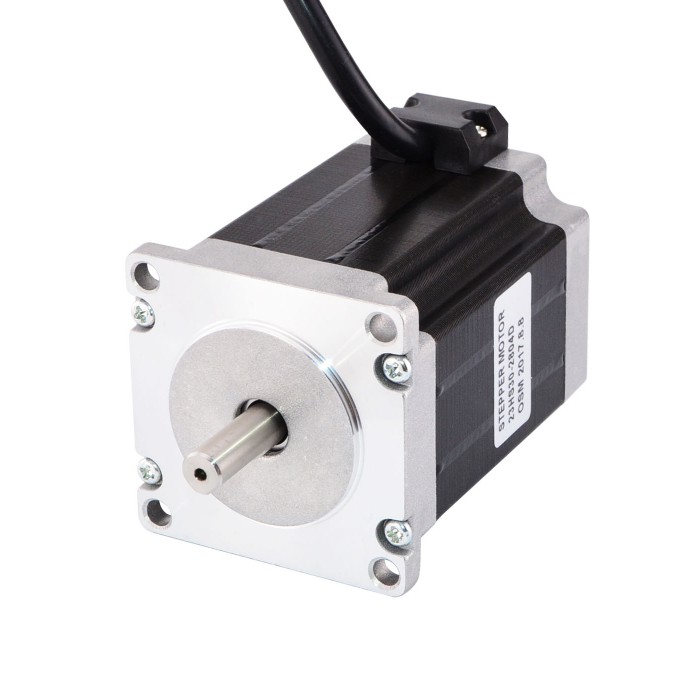

Dual Shaft Nema 23 Stepper Motor Bipolar 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires

Dual Shaft Nema 23 Stepper Motor Bipolar 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
NO.:23HS30-2804D
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$28.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $26.76 5%
10 $26.20 7%
50 $25.35 10%
100 $24.51 13%
Add To Cart

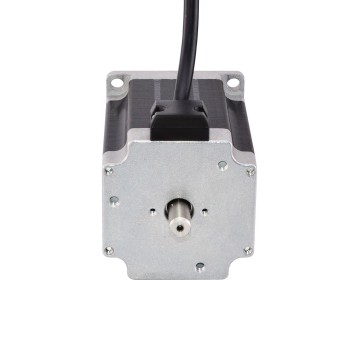

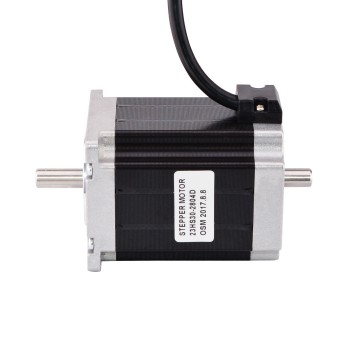

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used for brakes, encoder and hand wheels.

Electrical Specification

  • Manufacturer Part Number: 23HS30-2804D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.89Nm(267.6oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 3.2V
  • Phase Resistance: 1.13ohms
  • Inductance: 5.4mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ8mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 2.5Nm (354oz.in) 3A 57x57x114mm 8 Wires
Next: Nema 23 Stepper Motor Bipolar 3Nm (425oz.in) 3.5A 57x57x114mm 4 Wires CNC Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 189
Holding Torque (oz.in) 267.6
Inductance(mH) 5.4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1100
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
