1 Axis Stepper Motor Kit 4.0Nm(566oz.in) 1.8 Deg Bipolar Nema 24 Stepper Motor & Driver

1 Axis Stepper Motor Kit 4.0Nm(566oz.in) 1.8 Deg Bipolar Nema 24 Stepper Motor & Driver
NO.:1-DM542T-24HS39
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$63.67
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $60.49 5%
10 $59.21 7%
50 $57.30 10%
100 $55.39 13%
Add To Cart

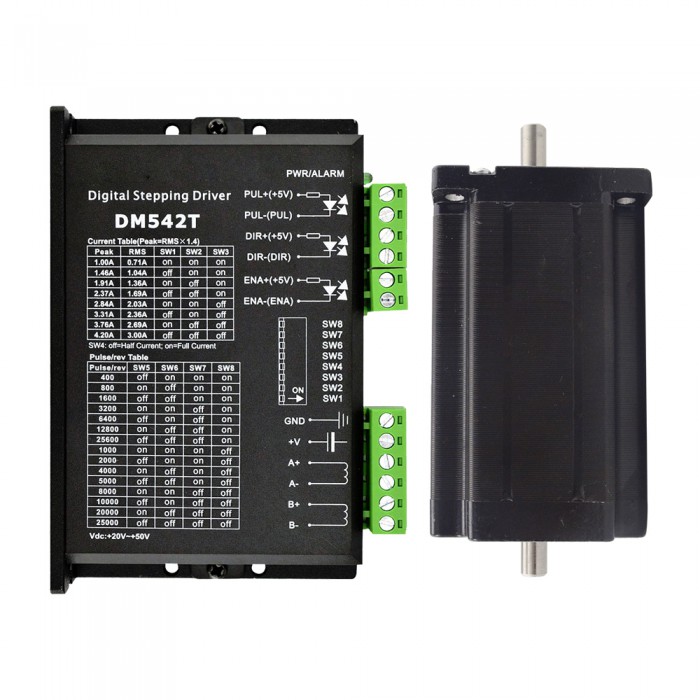

This CNC kit included:

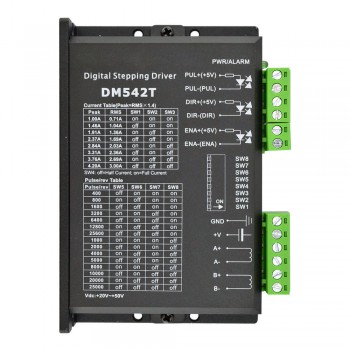

1 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor

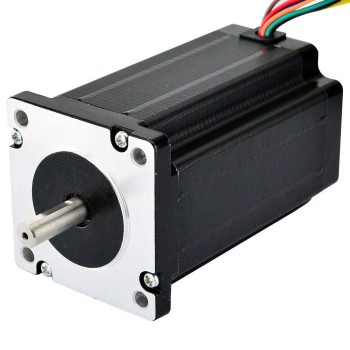

1 x Dual Shaft Nema 24 Bipolar 4Nm (566 oz.in) 60x60x100mm 8 Wires



Motor Specification

Manufacturer Part Number: 24HS39-3008D

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque(Bipolar): 4Nm(566oz.in)

Holding Torque(Unipolar): 2.8Nm(397oz.in)

Rated Current/phase(Bipolar Parallel): 4.24A

Rated Current/phase(Bipolar Serial): 2.12A

Rated Current/phase(Unipolar): 3A

Phase Resistance(Bipolar Parallel): 0.7ohms

Phase Resistance(Bipolar Serial): 2.8ohms

Phase Resistance(Unipolar): 1.4ohms

Inductance(Bipolar Parallel): 3mH ± 20%(1KHz)

Inductance(Bipolar Serial): 12mH ± 20%(1KHz)

Inductance(Unipolar): 3mH ± 20%(1KHz)

Frame Size: 60 x 60mm

Body Length: 100mm

Shaft Diameter: Φ8mm

Shaft Length: 24mm

D-cut Length: 20mm

Number of Leads: 4

Lead Length: 400mm

Weight: 1.6kg



Connection

A+
A-
C+
C-
B+
B-
D+
D-
RED
YEL
BLK
BLU
WHT
ORG
GRN
BRN



Driver Specification

Input voltage 20-50VDC

Anti-Resonance provides optimal torque and nulls mid-range instability

Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Soft-start with no "jump" when powered on

8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A

Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

Automatic idle-current reduction

Suitable for 2-phase and 4-phase motors

Support PUL/DIR mode

Over-voltage and over-current protections



Resources

Motor Datasheet: 24HS39-3008D.pdf

Motor Torque Curve: 24HS39-3008D_Torque_Curve.pdf

Driver Manual: DM542T.pdf
